Radar Schema Example

This example will go through how to connect to the radar topic published on your EdgeFirst Platform and how to display the information on the command line as well as through the Rerun visualizer.

Radar Targets

Topic: /radar/targets
Message: PointCloud2

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the radar/targets topic

PythonRust

# Create a subscriber for "rt/radar/targets"
subscriber = session.declare_subscriber('rt/radar/targets')

// Create a subscriber for "rt/radar/targets"
let subscriber = session
    .declare_subscriber("rt/radar/targets")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import PointCloud2

# Recieve a message
msg = subscriber.recv()

# deserialize message
pcd = PointCloud2.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::PointCloud2;

// Create a subscriber for "rt/radar/cluster"
let msg = subscriber.recv().unwrap()

let pcd: PointCloud2 = cdr::deserialize(&msg.payload().to_bytes())?;

Decode PCD Data

The next step is to decode the PCD data. Please see examples/pcd for a guide on how to decode the PointCloud2 data.

PythonRust

points = decode_pcd(pcd)

let points = decode_pcd(pcd);

Process the Data

We can now process the data. In this example we will find the maximum and minimum values for x, y, z, speed, power, and rcs

PythonRust

min_x = min([p.x for p in points])
max_x = max([p.x for p in points])

min_y = min([p.y for p in points])
max_y = max([p.y for p in points])

min_z = min([p.z for p in points])
max_z = max([p.z for p in points])

min_speed = min([p.fields["speed"] for p in points])
max_speed = max([p.fields["speed"] for p in points])

min_power = min([p.fields["power"] for p in points])
max_power = max([p.fields["power"] for p in points])

min_rcs = min([p.fields["rcs"] for p in points])
max_rcs = max([p.fields["rcs"] for p in points])

let min_x = points.iter().map(|p| p.x).fold(f64::INFINITY, f64::min);
let max_x = points.iter().map(|p| p.x).fold(f64::NEG_INFINITY, f64::max);

let min_y = points.iter().map(|p| p.y).fold(f64::INFINITY, f64::min);
let max_y = points.iter().map(|p| p.y).fold(f64::NEG_INFINITY, f64::max);

let min_z = points.iter().map(|p| p.z).fold(f64::INFINITY, f64::min);
let max_z = points.iter().map(|p| p.z).fold(f64::NEG_INFINITY, f64::max);

let min_speed = points
    .iter()
    .map(|p| *p.fields.get("speed").unwrap())
    .fold(f64::INFINITY, f64::min);
let max_speed = points
    .iter()
    .map(|p| *p.fields.get("speed").unwrap())
    .fold(f64::NEG_INFINITY, f64::max);

let min_power = points
    .iter()
    .map(|p| *p.fields.get("power").unwrap())
    .fold(f64::INFINITY, f64::min);
let max_power = points
    .iter()
    .map(|p| *p.fields.get("power").unwrap())
    .fold(f64::NEG_INFINITY, f64::max);

let min_rcs = points
    .iter()
    .map(|p| *p.fields.get("rcs").unwrap())
    .fold(f64::INFINITY, f64::min);
let max_rcs = points
    .iter()
    .map(|p| *p.fields.get("rcs").unwrap())
    .fold(f64::NEG_INFINITY, f64::max);

Results

The command line output will appear as the following

Recieved 23 radar points. Values: x: [2.04, 9.48]       y: [-2.99, 4.74]        z: [-2.07, 2.09]        rcs: [-13.80, 17.60]
Recieved 23 radar points. Values: x: [2.04, 9.47]       y: [-2.99, 4.21]        z: [-2.11, 2.09]        rcs: [-13.80, 17.60]
Recieved 23 radar points. Values: x: [2.04, 9.47]       y: [-2.97, 4.22]        z: [-2.09, 2.07]        rcs: [-14.00, 17.60]

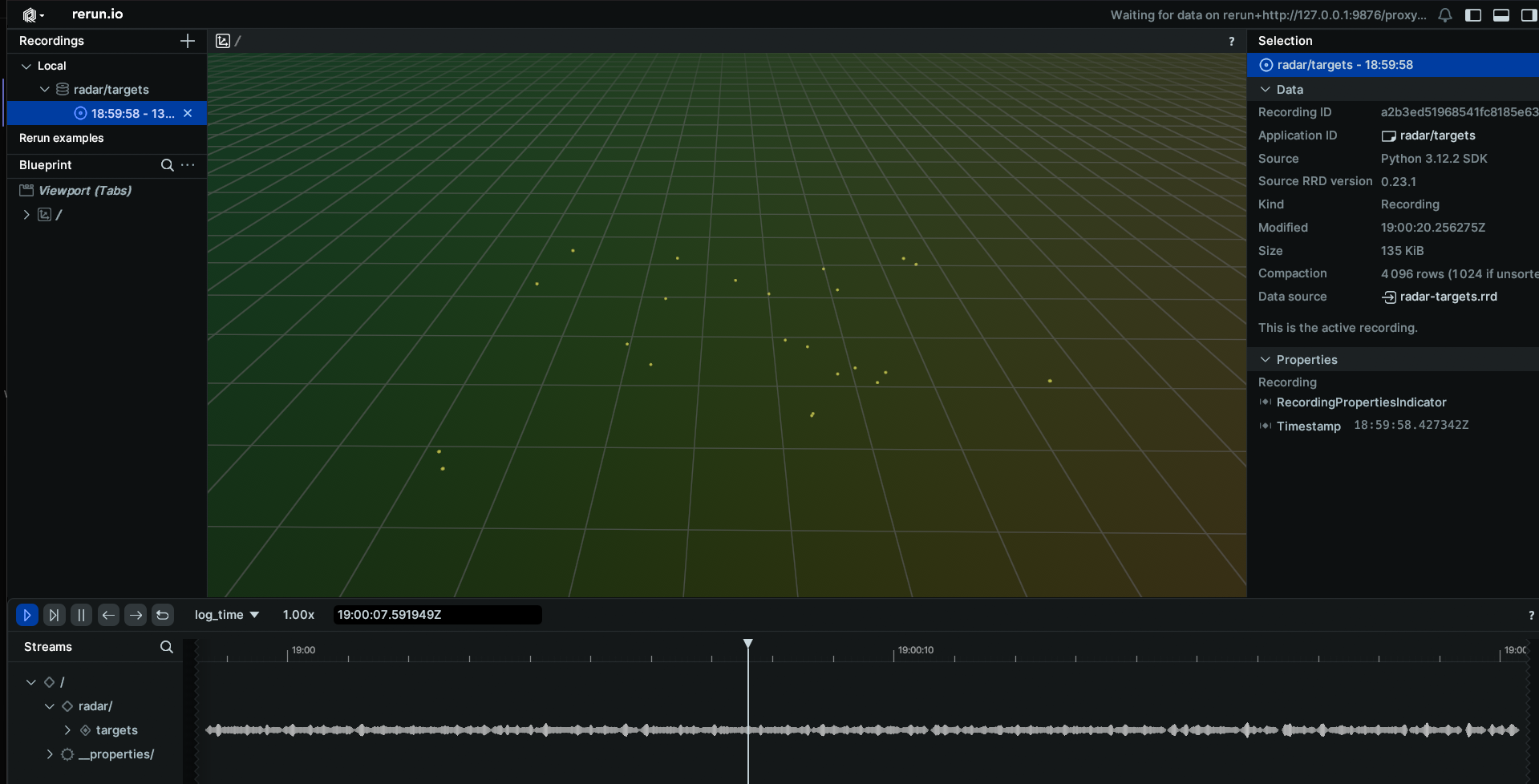

When displaying the results through Rerun you will see the pointcloud radar data. alt text

Radar Clusters

Topic: /radar/clusters
Message: PointCloud2

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the radar/clusters topic

PythonRust

# Create a subscriber for "rt/radar/cluster"
subscriber = session.declare_subscriber('rt/radar/clusters')

// Create a subscriber for "rt/radar/cluster"
let subscriber = session
    .declare_subscriber("rt/radar/clusters")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import PointCloud2

# Recieve a message
msg = subscriber.recv()

# deserialize message
pcd = PointCloud2.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::PointCloud2;

// Create a subscriber for "rt/radar/cluster"
let msg = subscriber.recv().unwrap()

let pcd: PointCloud2 = cdr::deserialize(&msg.payload().to_bytes())?;

Decode PCD Data

The next step is to decode the PCD data. Please see examples/pcd for a guide on how to decode the PointCloud2 data.

PythonRust

points = decode_pcd(pcd)

let points = decode_pcd(pcd);

Collect the Clustered Points

We will now collect all the clustered points, which are all the points with cluster_id above 0.

PythonRust

clustered_points = [p for p in points if p.fields["cluster_id"] > 0]

let clustered_points: Vec<_> = points.iter().filter(|x| x.fields.get("cluster_id") > 0.0).collect();

Results

The command line output will appear as the following

Recieved 137 radar points. 134 are clustered
Recieved 136 radar points. 133 are clustered
Recieved 138 radar points. 135 are clustered

When displaying the results through Rerun you will see the cluster data. alt text

Radar Info

Topic: /radar/info
Message: RadarInfo

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the radar/info topic

PythonRust

# Create a subscriber for "rt/radar/info"
subscriber = session.declare_subscriber('rt/radar/info')

// Create a subscriber for "rt/radar/info"
let subscriber = session
    .declare_subscriber("rt/radar/info")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import RadarInfo

# Recieve a message
msg = subscriber.recv()

# deserialize message
radar_info = RadarInfo.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::RadarInfo;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let radar_info: RadarInfo = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The RadarInfo message contains information about the radar configuration. Various fields can be accessed to view the radar's configuration.

PythonRust

# Access radar configuration
center_frequency = radar_info.center_frequency
frequency_sweep = radar_info.frequency_sweep
range_toggle = radar_info.range_toggle
detection_sensitivity = radar_info.detection_sensitivity
cube = radar_info.cube

// Access radar configuration
let center_frequency = radar_info.center_frequency;
let frequency_sweep = radar_info.frequency_sweep;
let range_toggle = radar_info.range_toggle;
let detection_sensitivity = radar_info.detection_sensitivity;
let cube = radar_info.cube;

Results

The command line output will appear as the following

The radar configuration is: center frequency: low   frequency sweep: ultra-short   range toggle: off   detection sensitivity: high   sending cube: true
The radar configuration is: center frequency: low   frequency sweep: ultra-short   range toggle: off   detection sensitivity: high   sending cube: true
The radar configuration is: center frequency: low   frequency sweep: ultra-short   range toggle: off   detection sensitivity: high   sending cube: true

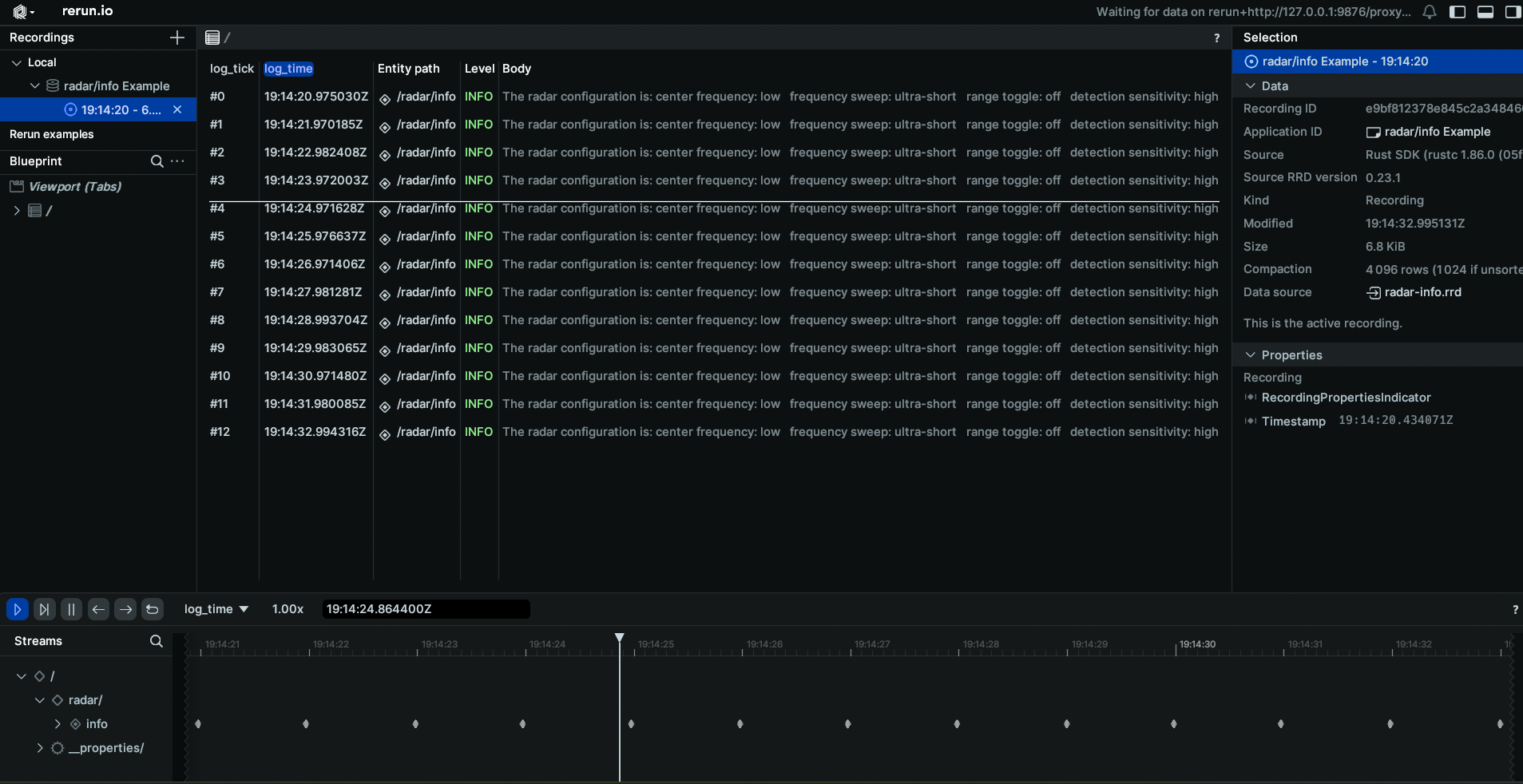

When displaying the results through Rerun you will see a log of the radar configuration. alt text

Radar Cube

Topic: /radar/cube
Message: RadarCube

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the radar/cube topic

PythonRust

# Create a subscriber for "rt/radar/cube"
subscriber = session.declare_subscriber('rt/radar/cube')

// Create a subscriber for "rt/radar/cube"
let subscriber = session
    .declare_subscriber("rt/radar/cube")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import RadarCube

# Recieve a message
msg = subscriber.recv()

# deserialize message
radar_cube = RadarCube.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::RadarCube;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let radar_cube: RadarCube = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The RadarCube message contains data from the RadarCube.

PythonRust

# Access radar cube information
shape = radar_cube.shape
cube = radar_cube.cube

// Access radar cube information
let shape = radar_cube.shape;
let cube = radar_cube.cube;

Results

The command line output will appear as the following

The radar cube has shape: [2, 200, 4, 256]
The radar cube has shape: [2, 200, 4, 256]
The radar cube has shape: [2, 200, 4, 256]

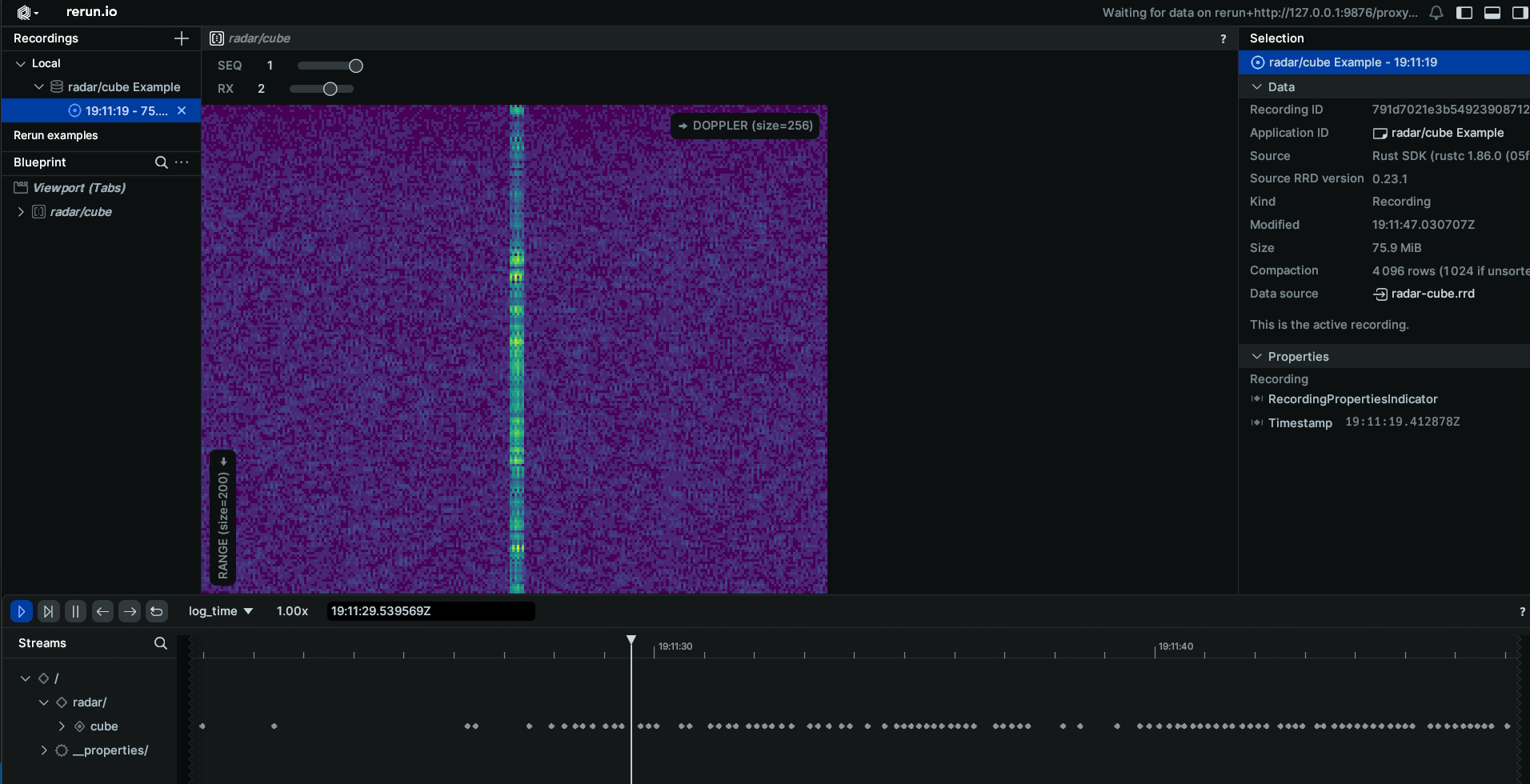

When displaying the results through Rerun you will see the radar cube displayed. alt text
