LIDAR Schema Example

This example will go through how to connect to the lidar topic published on your EdgeFirst Platform and how to display the information on the command line as well as through the Rerun visualizer.

Lidar Points

Topic: /lidar/points
Message: Image

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the lidar/points topic

PythonRust

# Create a subscriber for "rt/lidar/points"
subscriber = session.declare_subscriber('rt/lidar/points')

// Create a subscriber for "rt/lidar/points"
let subscriber = session
    .declare_subscriber("rt/lidar/points")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import PointCloud2

# Recieve a message
msg = subscriber.recv()

# deserialize message
pcd = PointCloud2.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::PointCloud2;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let pcd: PointCloud2 = cdr::deserialize(&msg.payload().to_bytes())?;

Decode PCD Data

The next step is to decode the PCD data. Please see examples/pcd for a guide on how to decode the PointCloud2 data.

PythonRust

points = decode_pcd(pcd)

let points = decode_pcd(pcd);

Process the Data

We can now process the data. In this example we will find the maximum and minimum values for x, y, z, and reflect

PythonRust

min_x = min([p.x for p in points])
max_x = max([p.x for p in points])

min_y = min([p.y for p in points])
max_y = max([p.y for p in points])

min_z = min([p.z for p in points])
max_z = max([p.z for p in points])

min_refl = min([p.fields["reflect"] for p in points])
max_refl = max([p.fields["reflect"] for p in points])

let min_x = points.iter().map(|p| p.x).fold(f64::INFINITY, f64::min);
let max_x = points.iter().map(|p| p.x).fold(f64::NEG_INFINITY, f64::max);

let min_y = points.iter().map(|p| p.y).fold(f64::INFINITY, f64::min);
let max_y = points.iter().map(|p| p.y).fold(f64::NEG_INFINITY, f64::max);

let min_z = points.iter().map(|p| p.z).fold(f64::INFINITY, f64::min);
let max_z = points.iter().map(|p| p.z).fold(f64::NEG_INFINITY, f64::max);

let min_refl = points
    .iter()
    .map(|p| *p.fields.get("reflect").unwrap())
    .fold(f64::INFINITY, f64::min);
let max_refl = points
    .iter()
    .map(|p| *p.fields.get("reflect").unwrap())
    .fold(f64::NEG_INFINITY, f64::max);

Results

The command line output will appear as the following

Recieved 24448 lidar points. Values: x: [-15.72, -0.01] y: [-10.52, 4.92]       z: [-2.96, 3.44]        reflect: [0.00, 167.00]
Recieved 24448 lidar points. Values: x: [-15.77, -0.01] y: [-10.54, 4.87]       z: [-1.76, 3.43]        reflect: [0.00, 166.00]
Recieved 24448 lidar points. Values: x: [-15.71, -0.01] y: [-10.50, 4.94]       z: [-2.30, 3.44]        reflect: [0.00, 178.00]

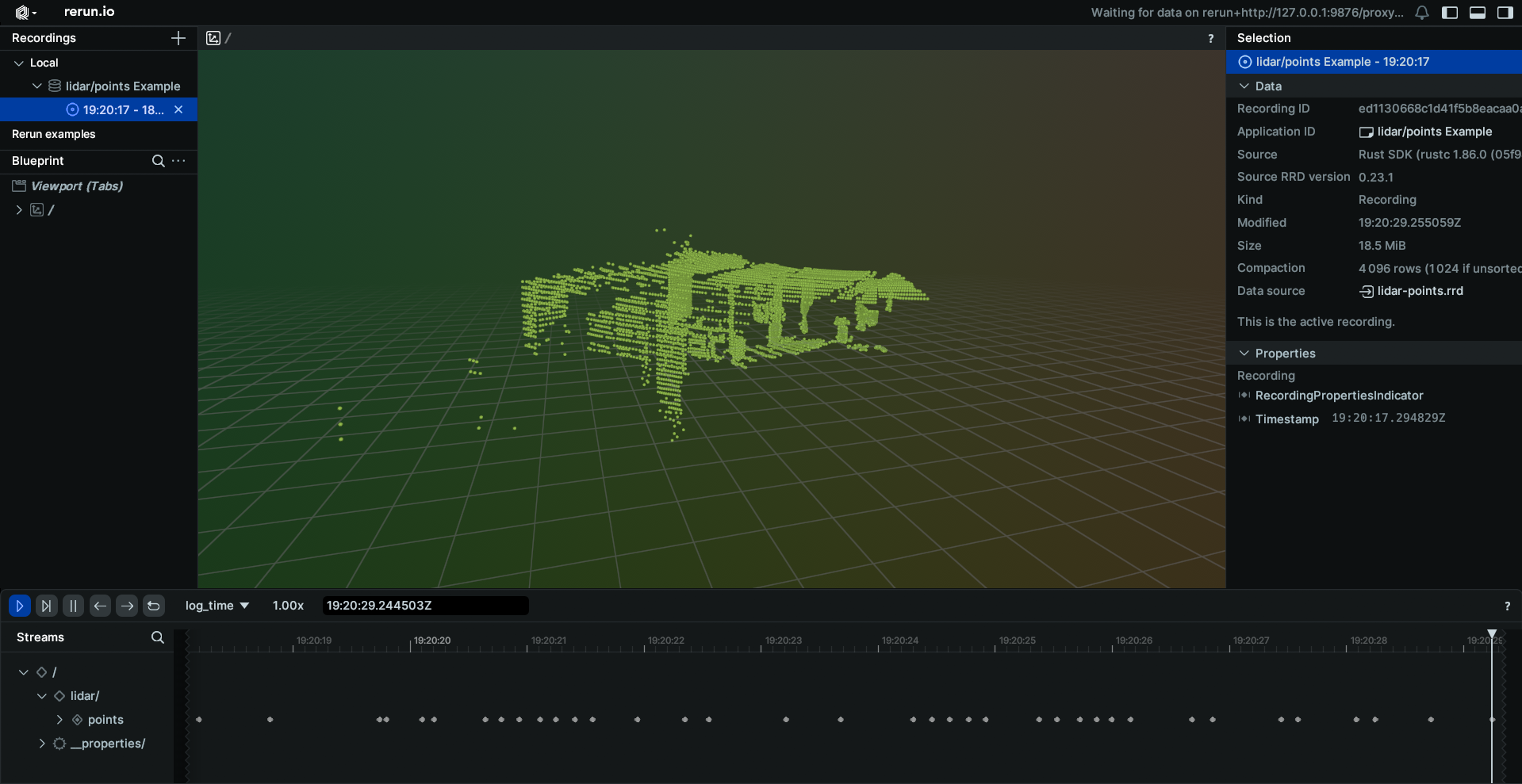

When displaying the results through Rerun you will see the pointcloud data gathered by the lidar. alt text

Lidar Clusters

Topic: /lidar/clusters
Message: PointCloud2

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the lidar/clusters topic

PythonRust

# Create a subscriber for "rt/lidar/cluster"
subscriber = session.declare_subscriber('rt/lidar/clusters')

// Create a subscriber for "rt/lidar/cluster"
let subscriber = session
    .declare_subscriber("rt/lidar/clusters")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import PointCloud2

# Recieve a message
msg = subscriber.recv()

# deserialize message
pcd = PointCloud2.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::PointCloud2;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let pcd: PointCloud2 = cdr::deserialize(&msg.payload().to_bytes())?;

Decode PCD Data

The next step is to decode the PCD data. Please see examples/pcd for a guide on how to decode the PointCloud2 data.

PythonRust

points = decode_pcd(pcd)

let points = decode_pcd(pcd);

Collect the Clustered Points

We will now collect all the clustered points, which are all the points with cluster_id above 0.

PythonRust

clustered_points = [p for p in points if p.fields["cluster_id"] > 0]

let clustered_points: Vec<_> = points.iter().filter(|x| x.fields.get("cluster_id") > 0.0).collect();

Results

The command line output will appear as the following

Recieved 24448 lidar points. 12193 are clustered
Recieved 24448 lidar points. 12219 are clustered
Recieved 24448 lidar points. 12237 are clustered

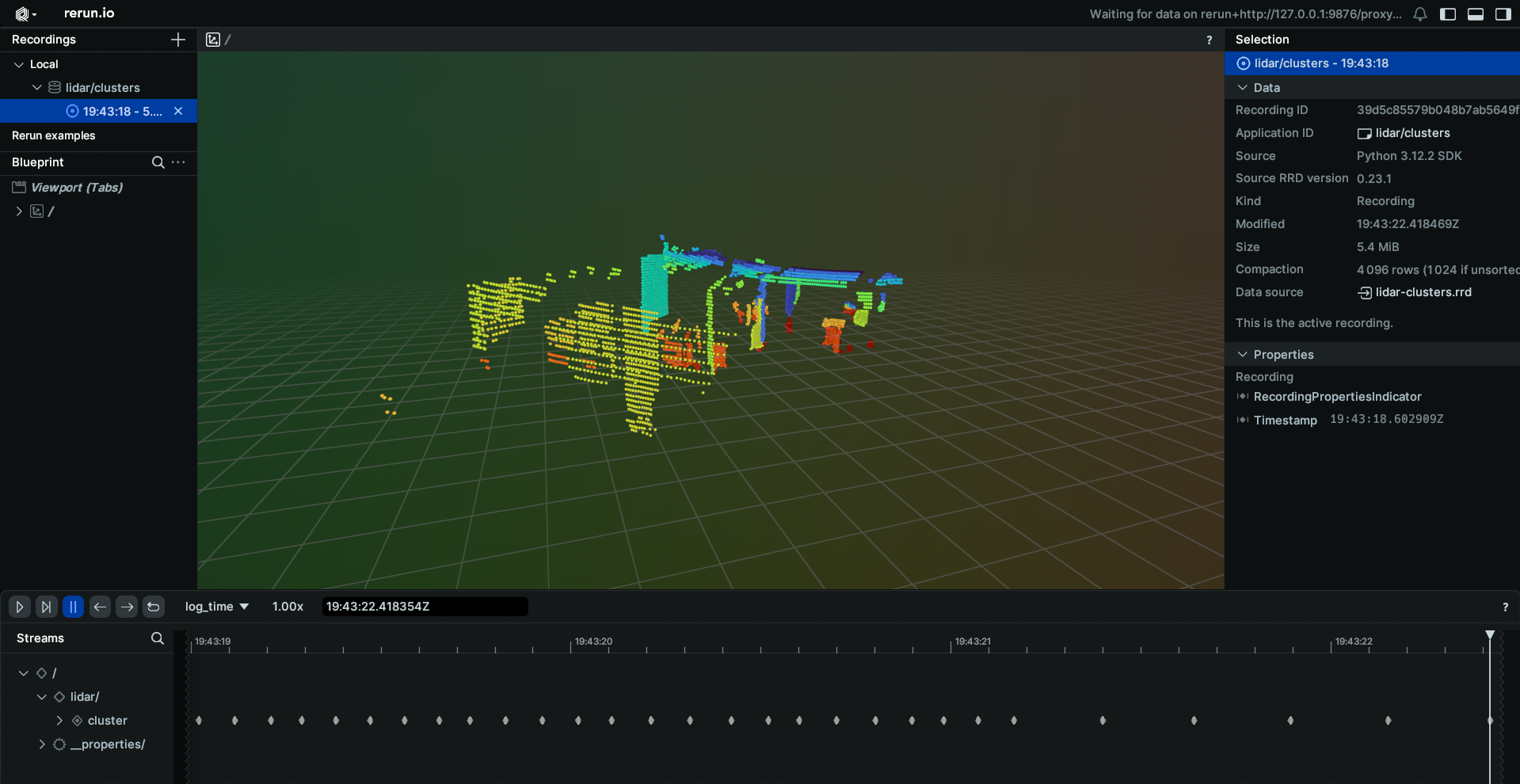

When displaying the results through Rerun you will see the pointcloud cluster data provided by the LiDAR. alt text

Lidar Depth

Topic: /lidar/depth
Message: Image

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the lidar/depth topic

PythonRust

# Create a subscriber for "rt/lidar/depth"
subscriber = session.declare_subscriber('rt/lidar/depth')

// Create a subscriber for "rt/lidar/depth"
let subscriber = session
    .declare_subscriber("rt/lidar/depth")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import Image

# Recieve a message
msg = subscriber.recv()

# deserialize message
depth = Image.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::Image;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let depth: Image = cdr::deserialize(&msg.payload().to_bytes())?;

Decode Image Data

Because the depth image is mono16 encoded, we need to decode the byte array into an array of u16 integers.

PythonRust

# Process depth image
import struct
assert depth.encoding == "mono16"
endian_format = ">" if depth.is_bigendian else "<"
depth_vals = list(struct.unpack(
    f"{endian_format}{depth.width*depth.height}H", depth.data))

// Process depth image
assert_eq!(depth.encoding, "mono16");
let u16_from_bytes = if depth.is_bigendian > 0 {
    u16::from_be_bytes
} else {
    u16::from_le_bytes
};
let depth_vals: Vec<u16> = depth
    .data
    .chunks_exact(2)
    .map(|a| u16_from_bytes([a[0], a[1]]))
    .collect();

Process the Data

We can now process the data. In this example we will find the maximum and minimum depth values.

PythonRust

min_depth_mm = min(depth_vals)
max_depth_mm = max(depth_vals)

let min_depth_mm = *depth_vals.iter().min().unwrap();
let max_depth_mm = *depth_vals.iter().max().unwrap();

Results

The command line output will appear as the following

Recieved 382x64 depth image. Depth: [0, 19016]
Recieved 382x64 depth image. Depth: [0, 18968]
Recieved 382x64 depth image. Depth: [0, 18944]

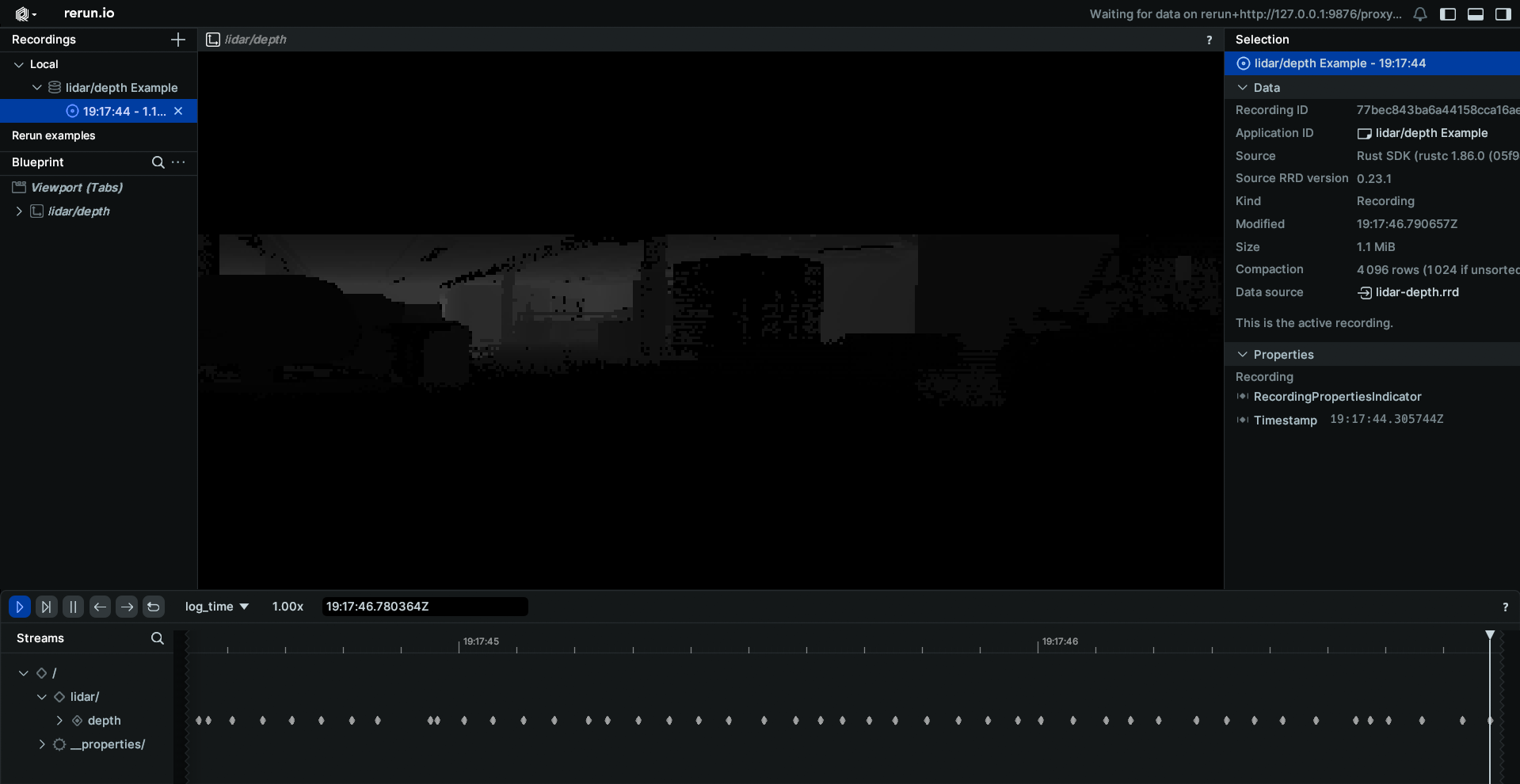

When displaying the results through Rerun you will see a depth map of what the lidar can see. alt text

Lidar Reflect

Topic: /lidar/reflect
Message: Image

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the lidar/reflect topic

PythonRust

# Create a subscriber for "rt/lidar/reflect"
subscriber = session.declare_subscriber('rt/lidar/reflect')

// Create a subscriber for "rt/lidar/reflect"
let subscriber = session
    .declare_subscriber("rt/lidar/reflect")
    .await
    .unwrap();

Recieve a message

We can now recieve a message on the subcriber. After recieving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import Image

# Recieve a message
msg = subscriber.recv()

# deserialize message
reflect = Image.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::Image;

// Recieve a message
let msg = subscriber.recv().unwrap()

// Deserialize message
let reflect: Image = cdr::deserialize(&msg.payload().to_bytes())?;

Decode Image Data

Because the reflect image is mono8 encoded, we don't need to decode the byte array.

PythonRust

# Process reflect image
assert reflect.encoding == "mono8"
reflect_vals = reflect.data

// Process reflect image
assert_eq!(reflect.encoding, "mono8");
let reflect_vals = reflect.data.clone();

Process the Data

We can now process the data. In this example we will find the maximum and minimum reflect values.

PythonRust

min_reflect_mm = min(reflect_vals)
max_reflect_mm = max(reflect_vals)

let min_reflect_mm = *reflect_vals.iter().min().unwrap();
let max_reflect_mm = *reflect_vals.iter().max().unwrap();

Results

The command line output will appear as the following

Recieved 382x64 reflect image. reflect: [0, 175]
Recieved 382x64 reflect image. reflect: [0, 166]
Recieved 382x64 reflect image. reflect: [0, 181]

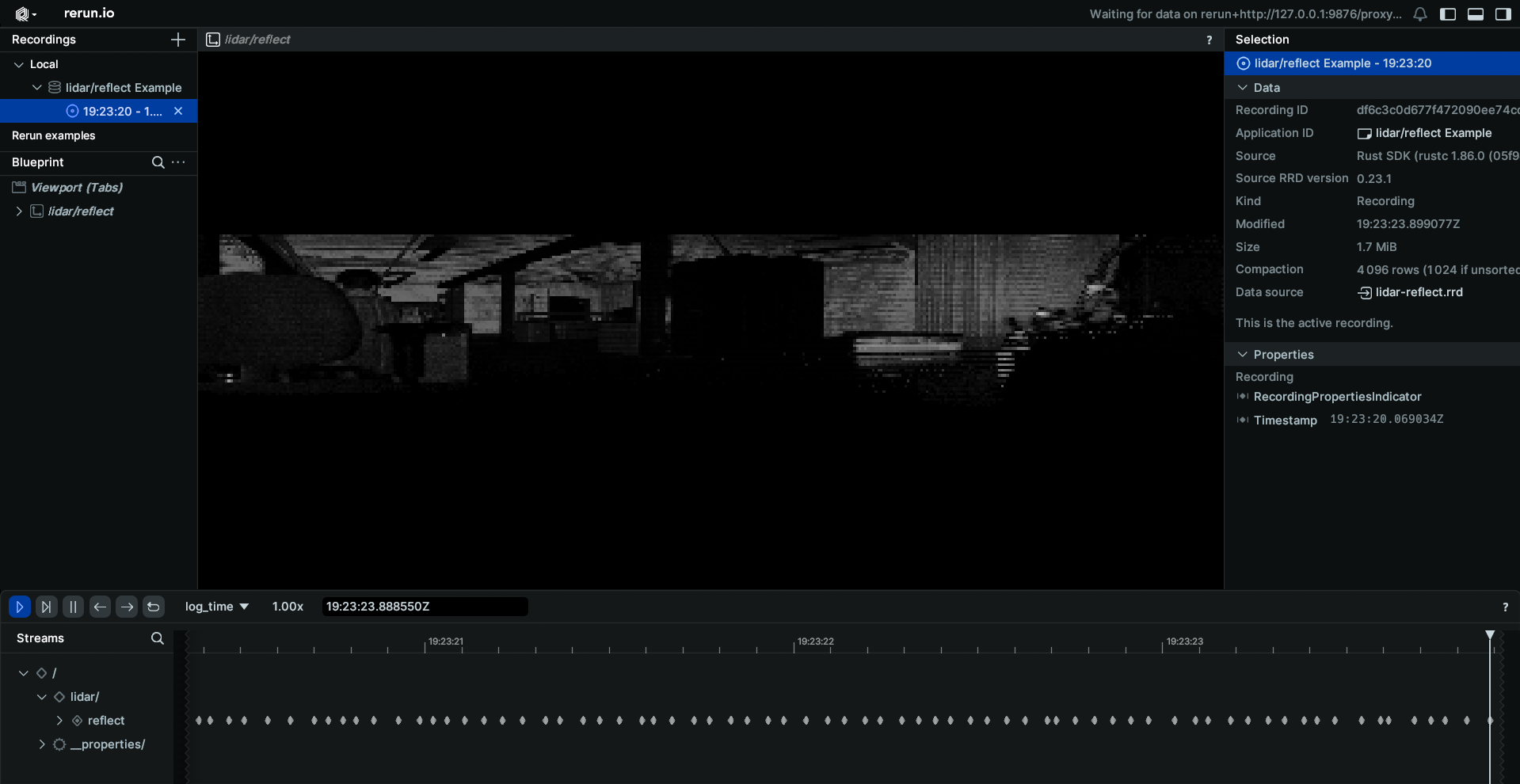

When displaying the results through Rerun you will see the reflection data gathered by the lidar. alt text
