Dataset Tutorials
This guide describes the various dataset tutorials/workflows in EdgeFirst Studio from capture to annotation and dataset management (curation).
Capture/Record Data
This tutorial is a high level tutorial that provides an overview for recording data using an EdgeFirst Platform. For an in depth tutorial, please refer to the MCAP Recording Service.
On your browser, enter the following URL https://<hostname>/ and the following page will appear.
Note
Replace <hostname> with the hostname of your device.
You will be greeted to the Web UI Service page.

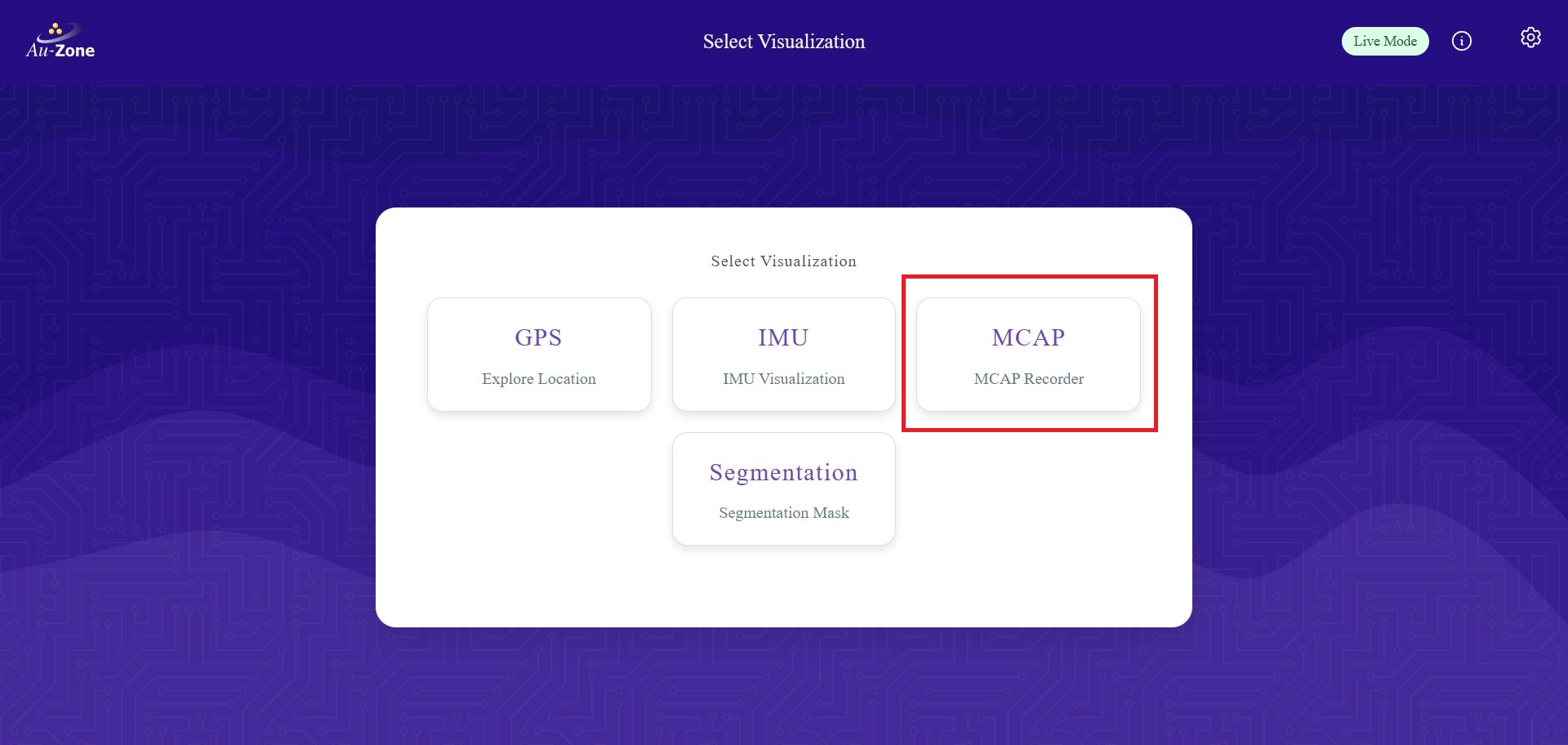

To record data, click on the MCAP Recorder service highlighted in red above. Once clicked, you will be greeted with the MCAP Recording Service page.
To start recording toggle/enable the Recording button indicated above and to stop the recording retoggle/disable the same button.
For more information on managing recordings, please see the Managing Recordings Tutorial.
Download Recorded Data
This tutorial shows how to download recorded MCAP data shown in Capture/Record Data Tutorial. For more information on downloading MCAPs, please see Downloading and Analysis.
The MCAP files are listed under the list of MCAP files which can then be downloaded to your PC.
Upload Recorded Data to EdgeFirst Studio
This tutorial shows how to upload a downloaded MCAP recording shown in Download Recorded Data Tutorial. For uploading EdgeFirst Datasets, please see the instructions for Upload from Zip/Arrow File.

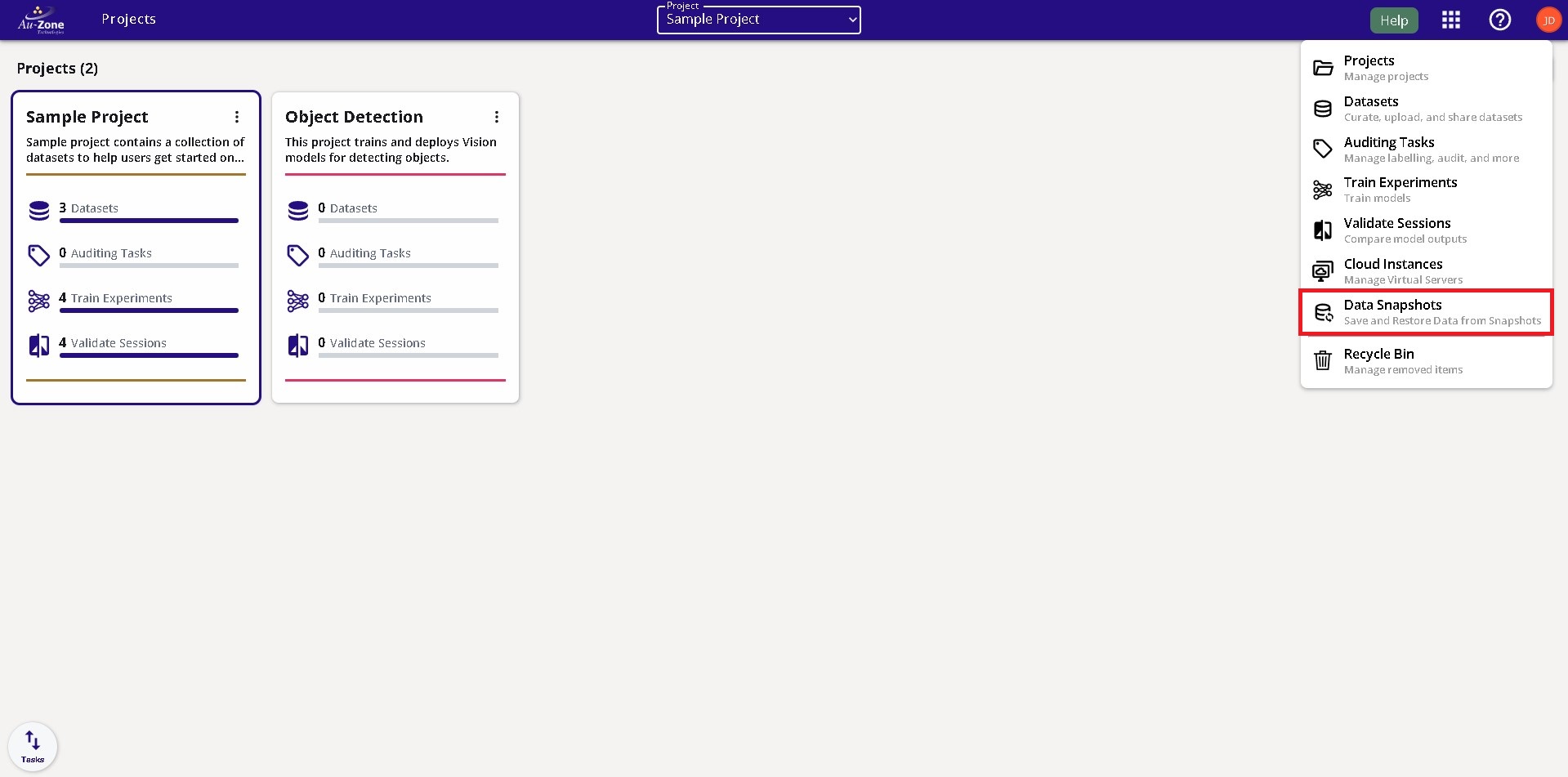

In EdgeFirst Studio, select Data Snapshots under the tool options.
Note
A project has already been created intended for object detection. This step has been covered in Getting Started.

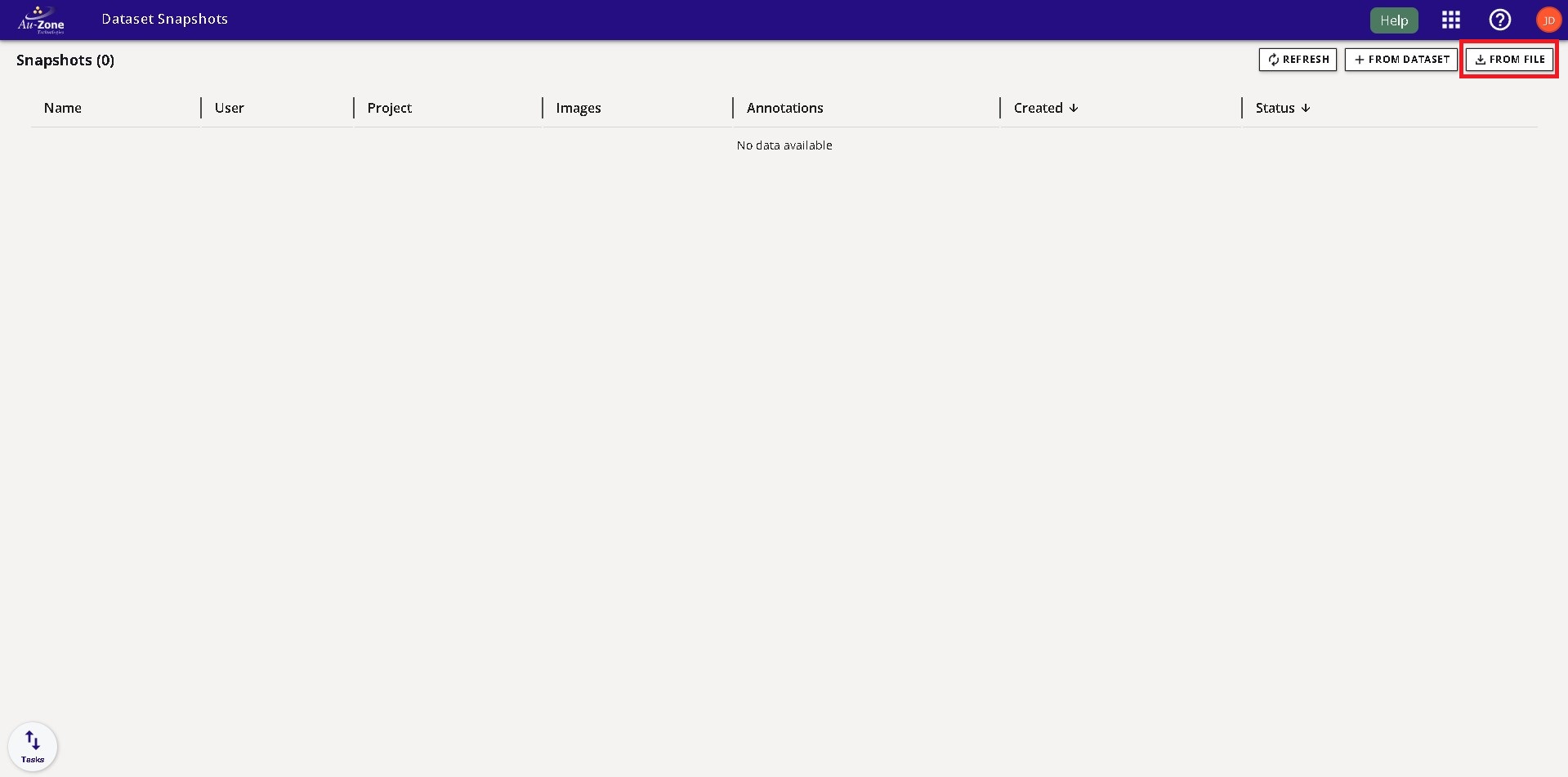

Once you are in the Data Snapshots page, upload the recorded MCAP by clicking FROM FILE which opens a new window dialog for selecting the MCAP downloaded in your PC.
Once the MCAP file is selected, this would start the upload progress in EdgeFirst Studio. This upload progress may take several minutes depending on the size of the MCAP. Once the upload is complete, the status will be shown like the figure on the right.

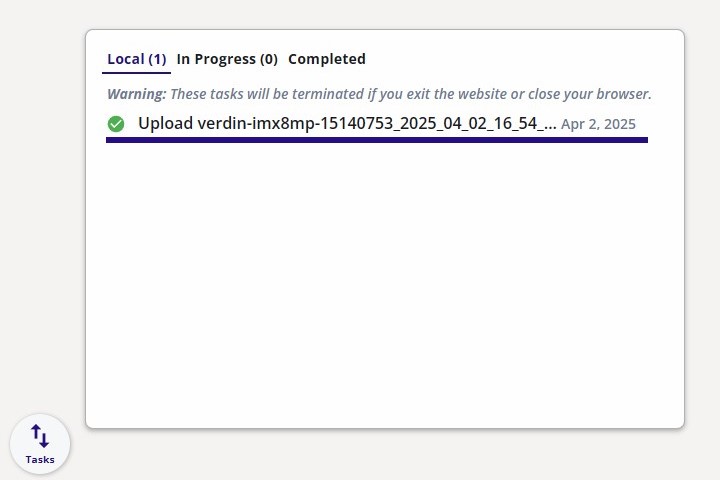

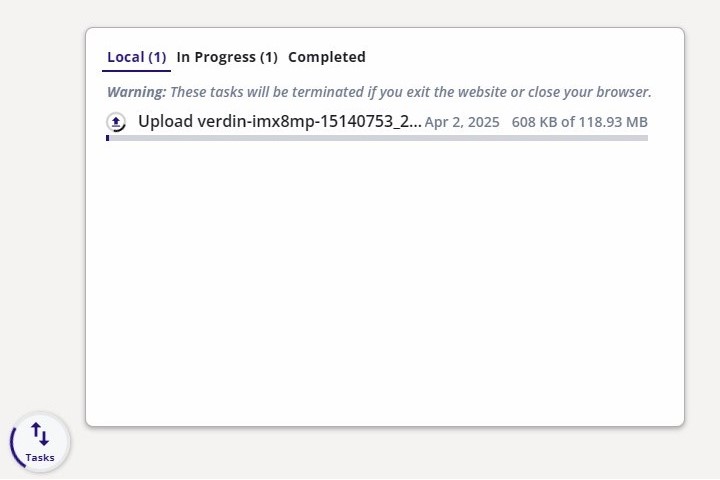

| Upload Progress | Completed Upload |
|---|---|
 |
 |
Data -> Dataset: Annotating Data
This tutorial shows how to annotate an uploaded MCAP recording shown in Upload Recorded Data Tutorial.
Auto Annotations via Snapshot
To reduce the effort required by the user to annotate the data, part of this process is to run auto-annotations on the uploaded data.

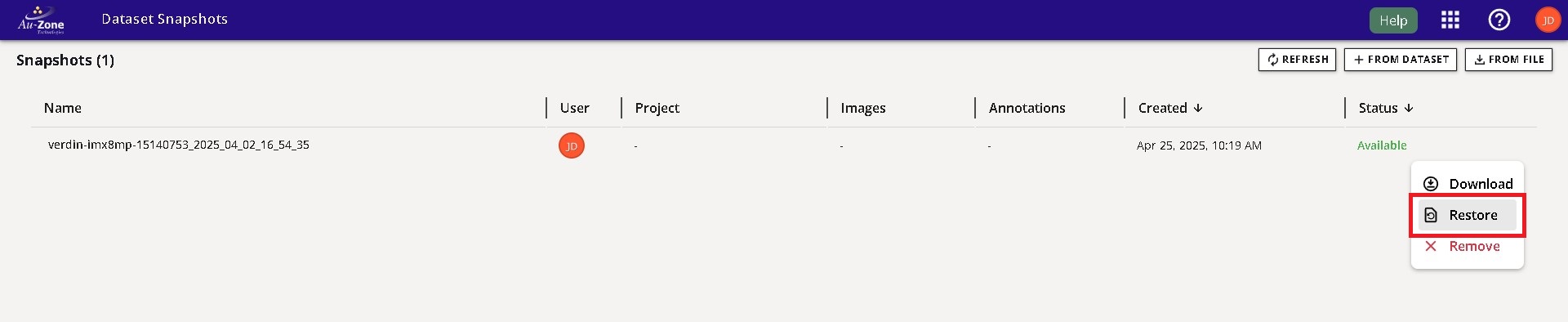

To run auto-annotations on the recorded data, click Restore on the uploaded snapshot.

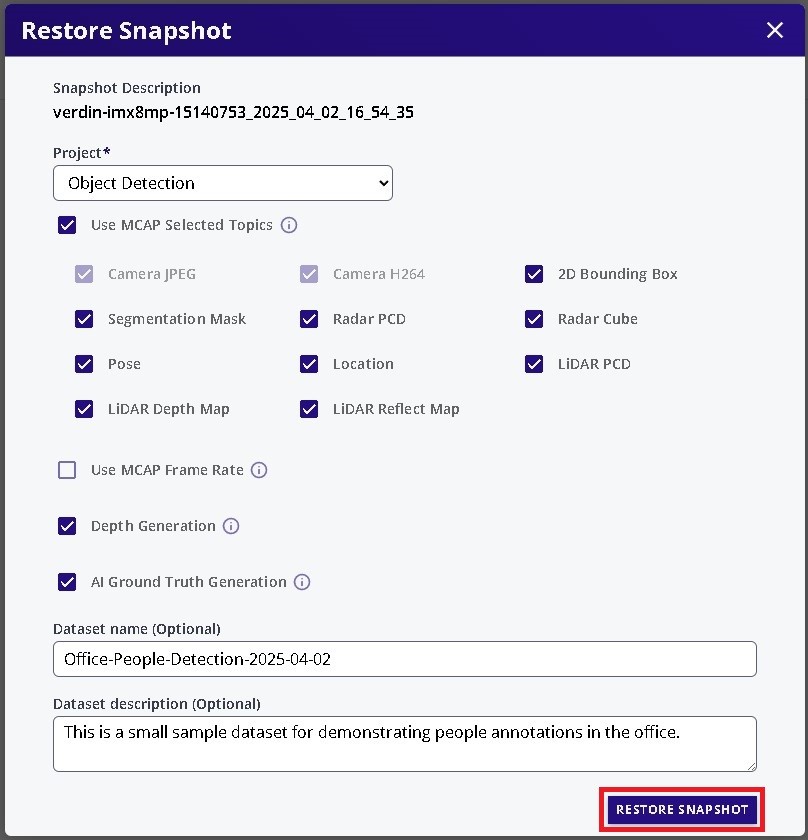

The following fields are for the user to specify. Adjust the following fields for your own use case.

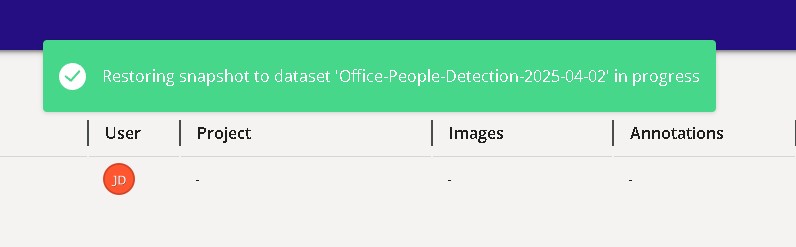

Once specifed, click RESTORE SNAPSHOT to start the auto-annotation process. This will start the auto-annotation process.

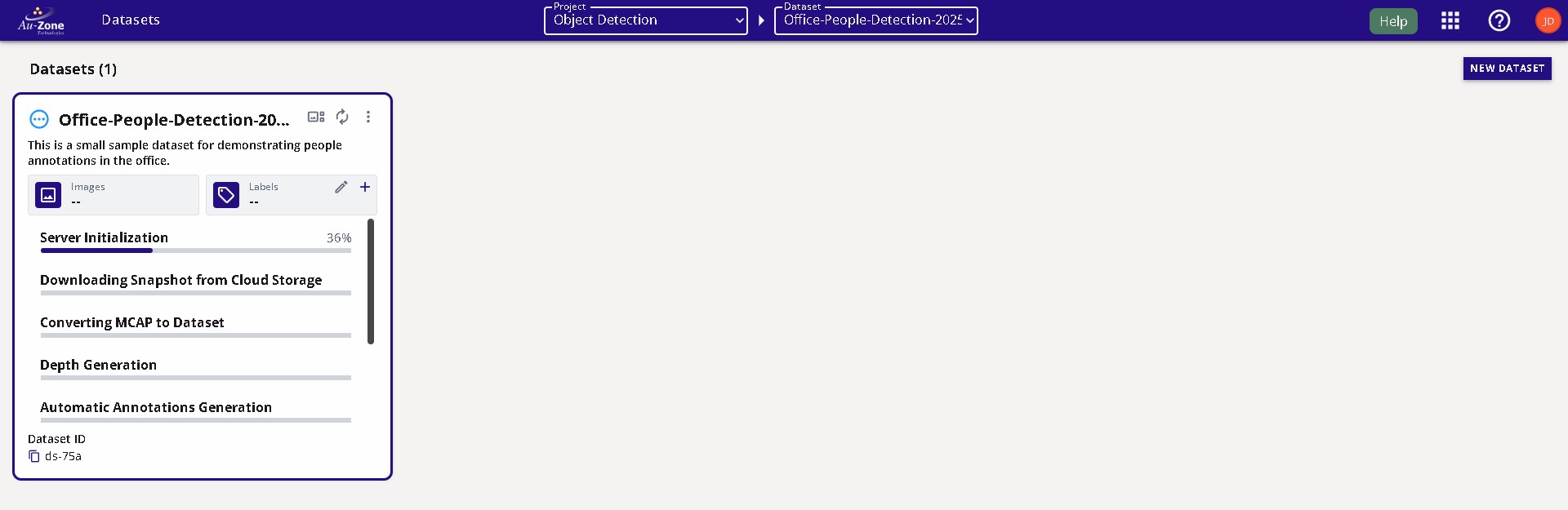

The progress will be shown on the dataset specified in the project.
Once completed, the dataset will now contain annotations that resulted from the auto-annotation process.
Next navigate to the gallery of the dataset by clicking on the gallery button highlighted in red to visualize the annotations. The figure below shows a side-by-side display of the annotations from frames 1-3. The annotations for "people" are shown as both segmentation masks and bounding boxes.
| Frame 1 | Frame 2 | Frame 3 |
|---|---|---|
 |
 |
 |
Auto Annotations via Gallery
Another method for running auto-annotations is to utilize the propagation feature in the gallery. This feature will preload all frames in a video sequence in the dataset into SAM-2 to generate segmentation masks, 2D bounding boxes, 3D bounding boxes (For Raivin/LiDAR Only) by tracking the object across the frames.

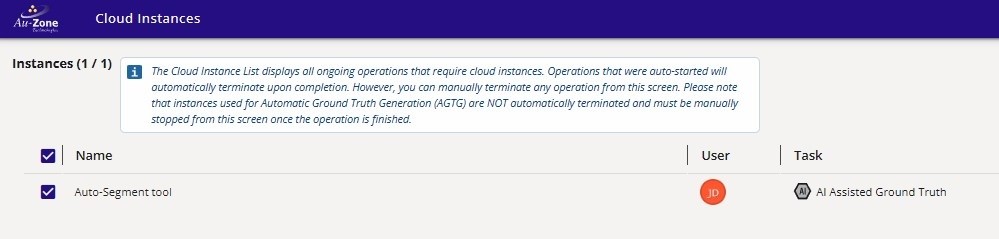

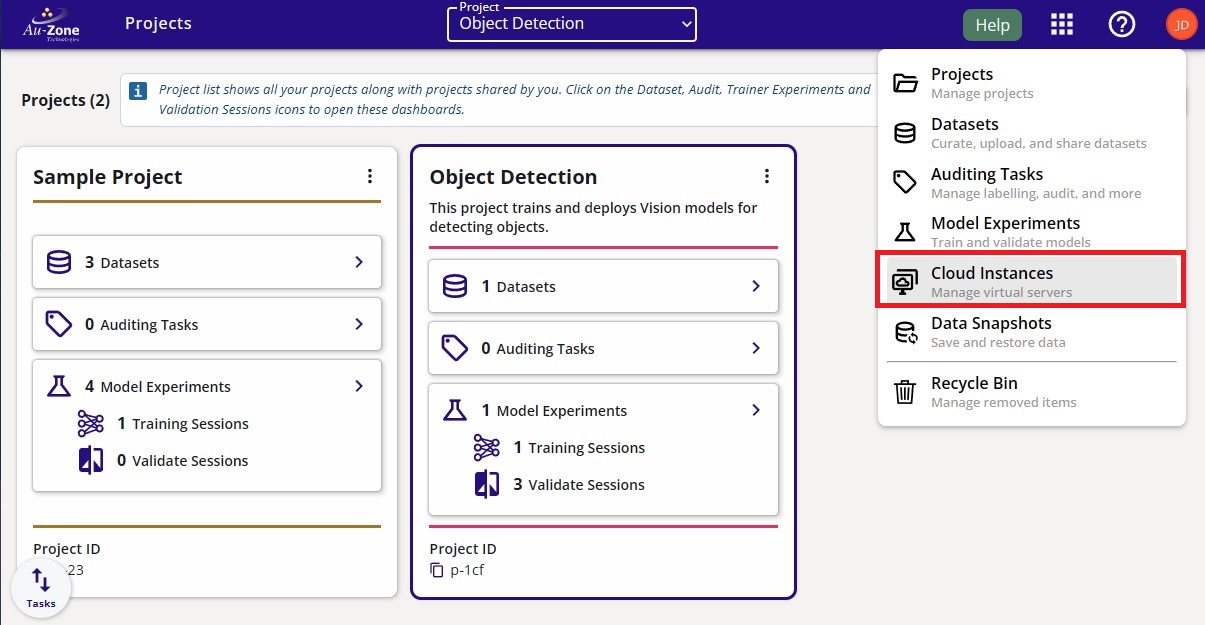

Start by enabling an AI Assisted Ground Truth server by navigating to the Cloud Instances under the tool options.
Start and launch a new server to host the auto-segmentation backend.
Warning

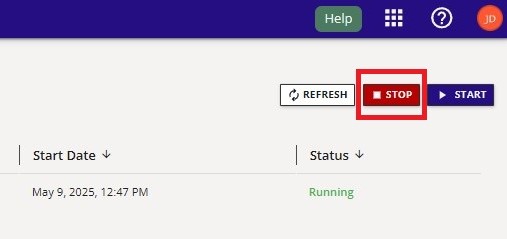

This server is costing credits to run. An inactivity of 15 minutes will auto-terminate this server. Otherwise, once you have completed the annotations, please ensure to terminate this server to avoid spending more of your credits.
Next navigate back to the dataset gallery and enable edit mode.
Click on the Video Segment Tool as indicated in red above. Next click the "Initialize State". This will load the indicated starting frame (current) to the stop frame (end) to SAM-2 for tracking the object across these frames for auto annotations.
Once the state has been initialized, additional options will be provided to allow the user to provide prompts to SAM for propagation. Start by selecting the box tool as indicated in red. This will allow the user to draw bounding box prompts to the initial annotation for propagation.
Now draw a bounding box prompt (white) around the object to annotate. In this case the person on the frame will be annotated. Once the bounding box is drawn, the segmentation mask will be drawn and the associated bounding box for the mask (yellow). Next click on "Propagate" to propagate this annotation (mask and bounding box) across frames using SAM-2 tracking and propagation.
This will start the propagation progress across the frames specified.
Once the propagation is completed, click "Save Pending Segmentations" to save the propagated annotations.
For cases where the object exits and then re-enters the frame, the object might not be tracked properly. Repeat the steps as necessary to annotate objects that were missed.

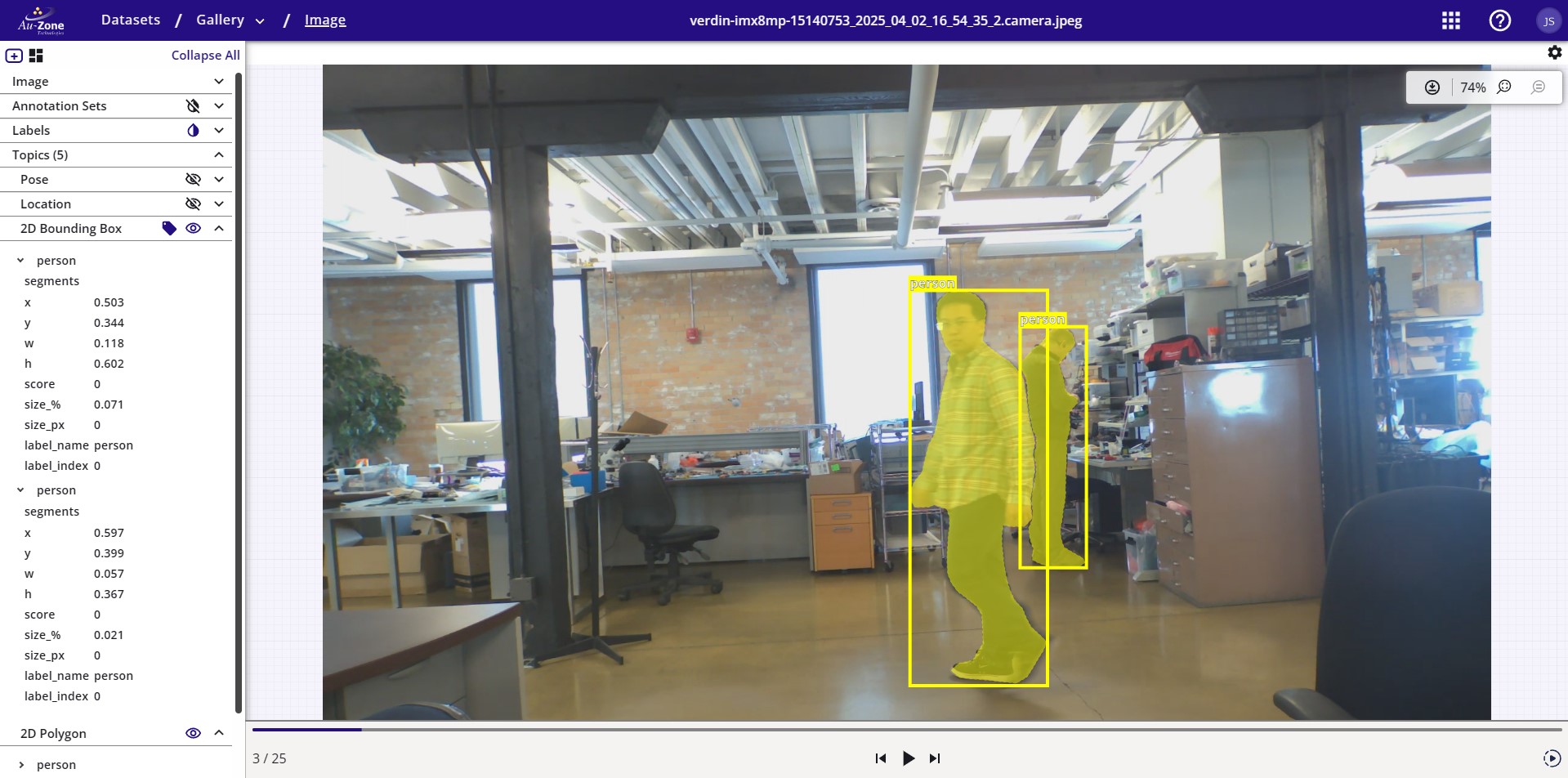

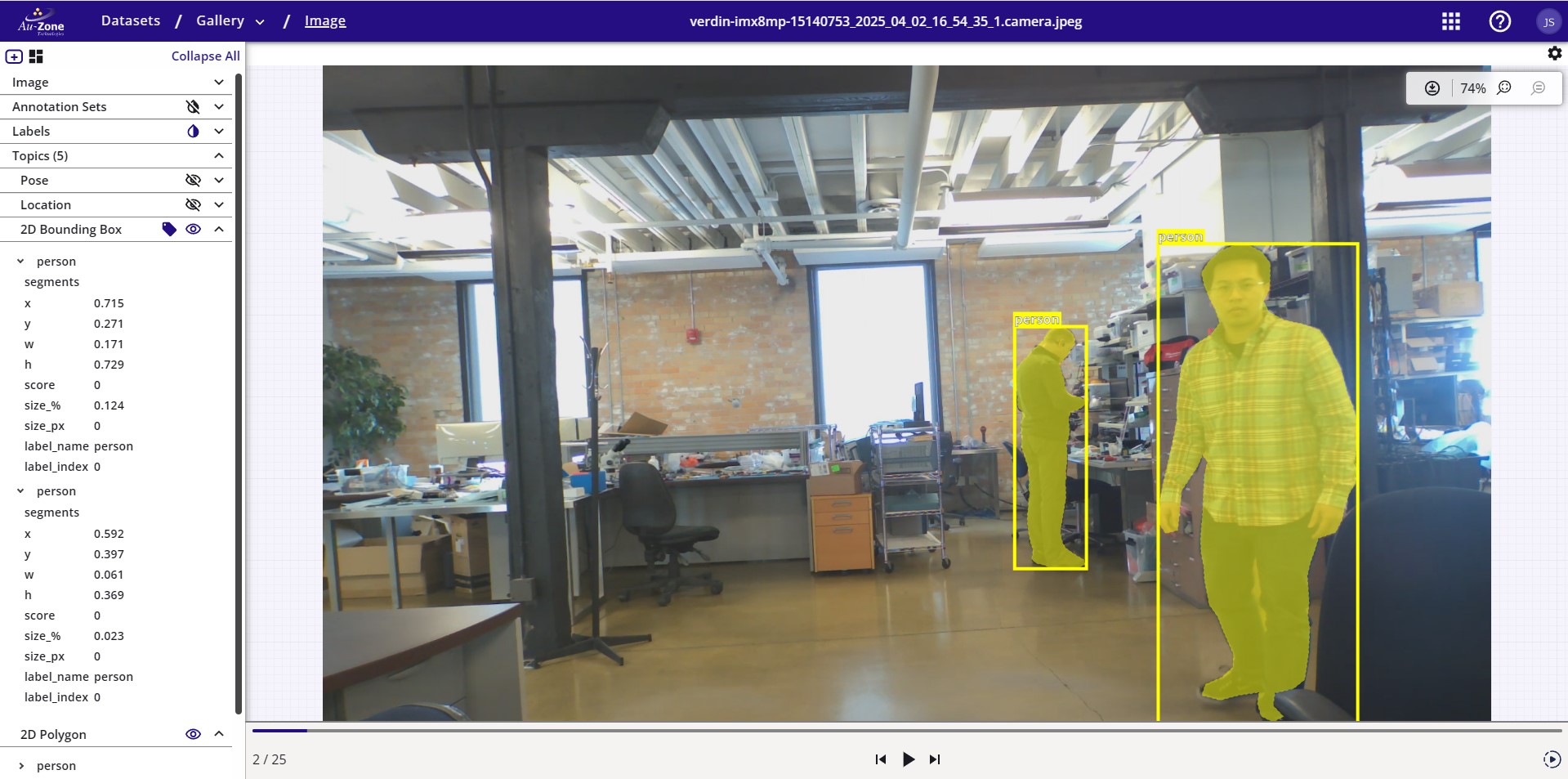

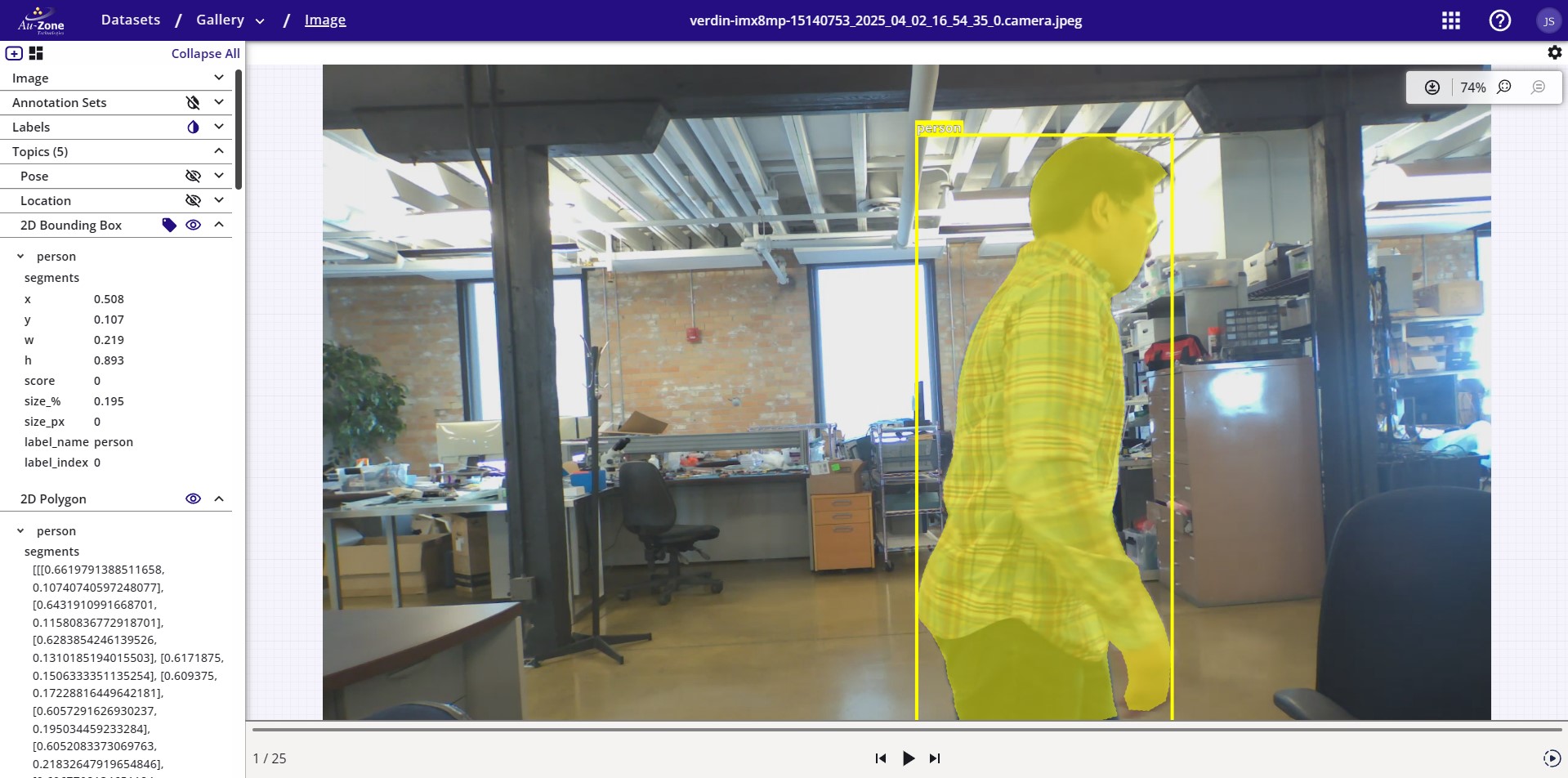

A completed propagation will show the annotations with masks and bounding boxes for subsequent frames as follows.
| Annotation 1 | Annotation 2 | Annotation 3 |
|---|---|---|
 |
 |
 |
Audit 2D Annotations
This step requires verifying the outputs of the auto-annotations and to make corrections to the 2D annotations if necessary in order to have a proper fully annotated dataset.
Some annotations were missed from the auto-annotations and to correct those errors, we can utilize the auto-segment tool. Start by enabling an AI Assisted Ground Truth server by navigating to the Cloud Instances under the tool options.
Start and launch a new server to host the auto-segmentation backend.
Navigate back to the dataset gallery and enable edit mode.

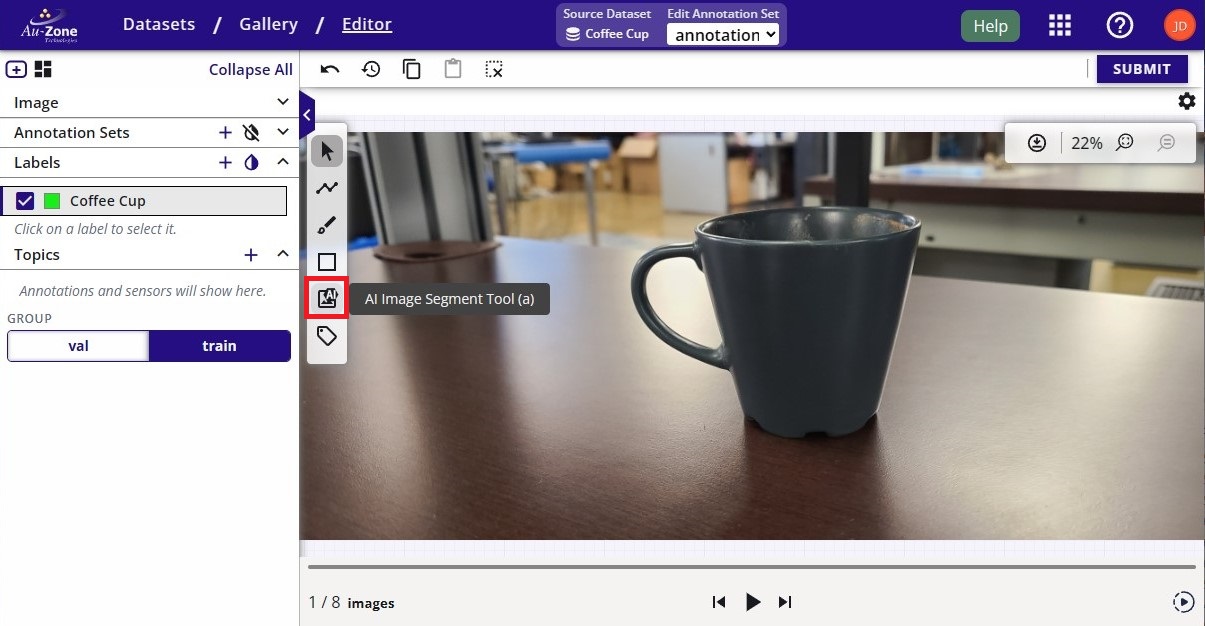

Select the AI Image Segment Tool and then enable the SAM Box Tool
Draw a bounding box around the person that was missed and then click CREATE ANNOTATION to create the drawn segmentation mask. Click SUBMIT to accept the annotation.
Draw a bounding box annotation around the person that was missed by selecting the Box Tool. Click SUBMIT to accept the annotation.
Part of the audit process is to go over each sample in the dataset and correcting any missed annotations or incorrect annotations.
Audit 3D annotations
This step requires verifying the outputs of the auto-annotations and to make corrections to the 3D bounding box annotations if necessary in order to have a proper fully annotated dataset.

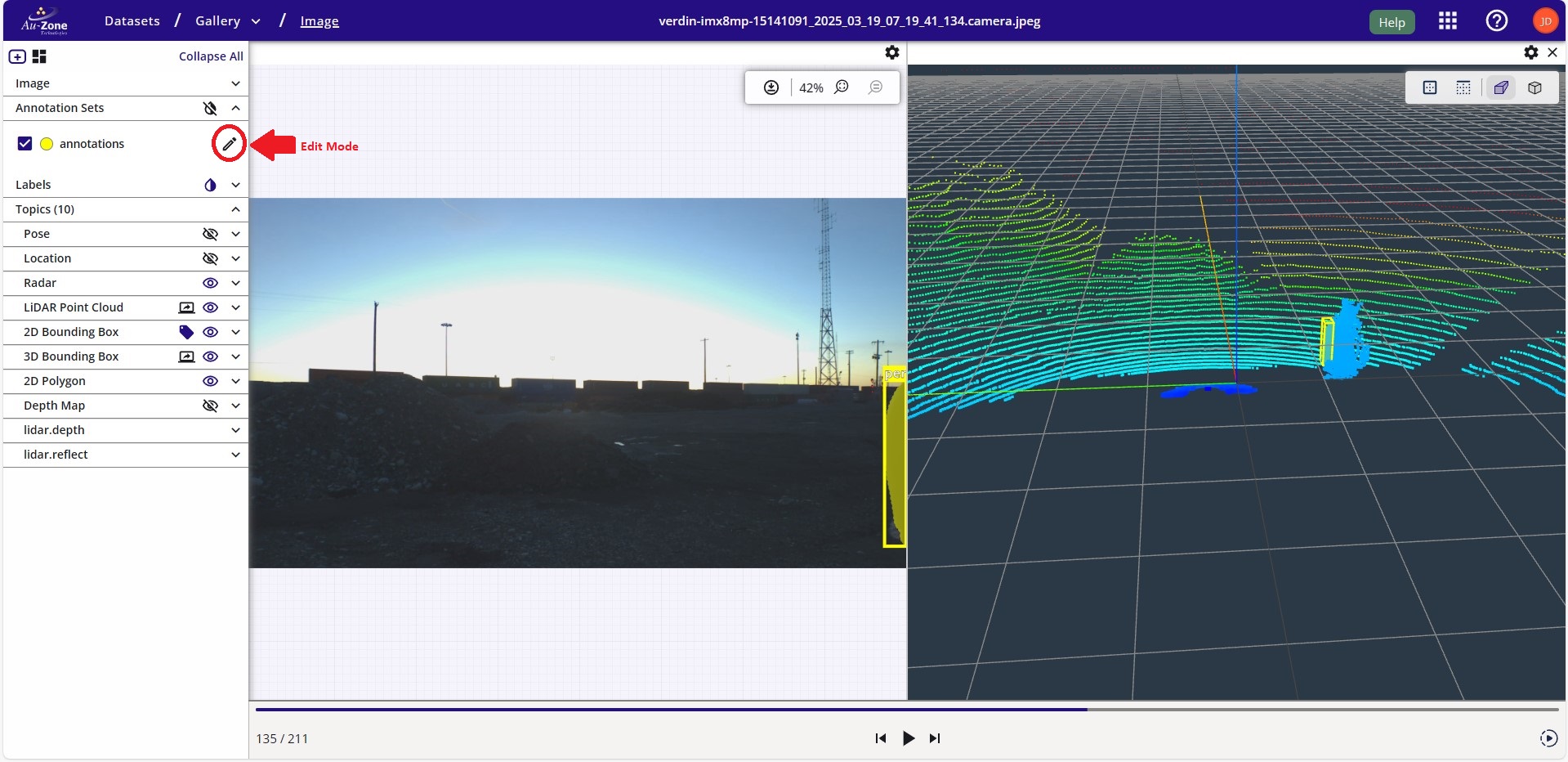

First navigate to the gallery and enable edit mode.

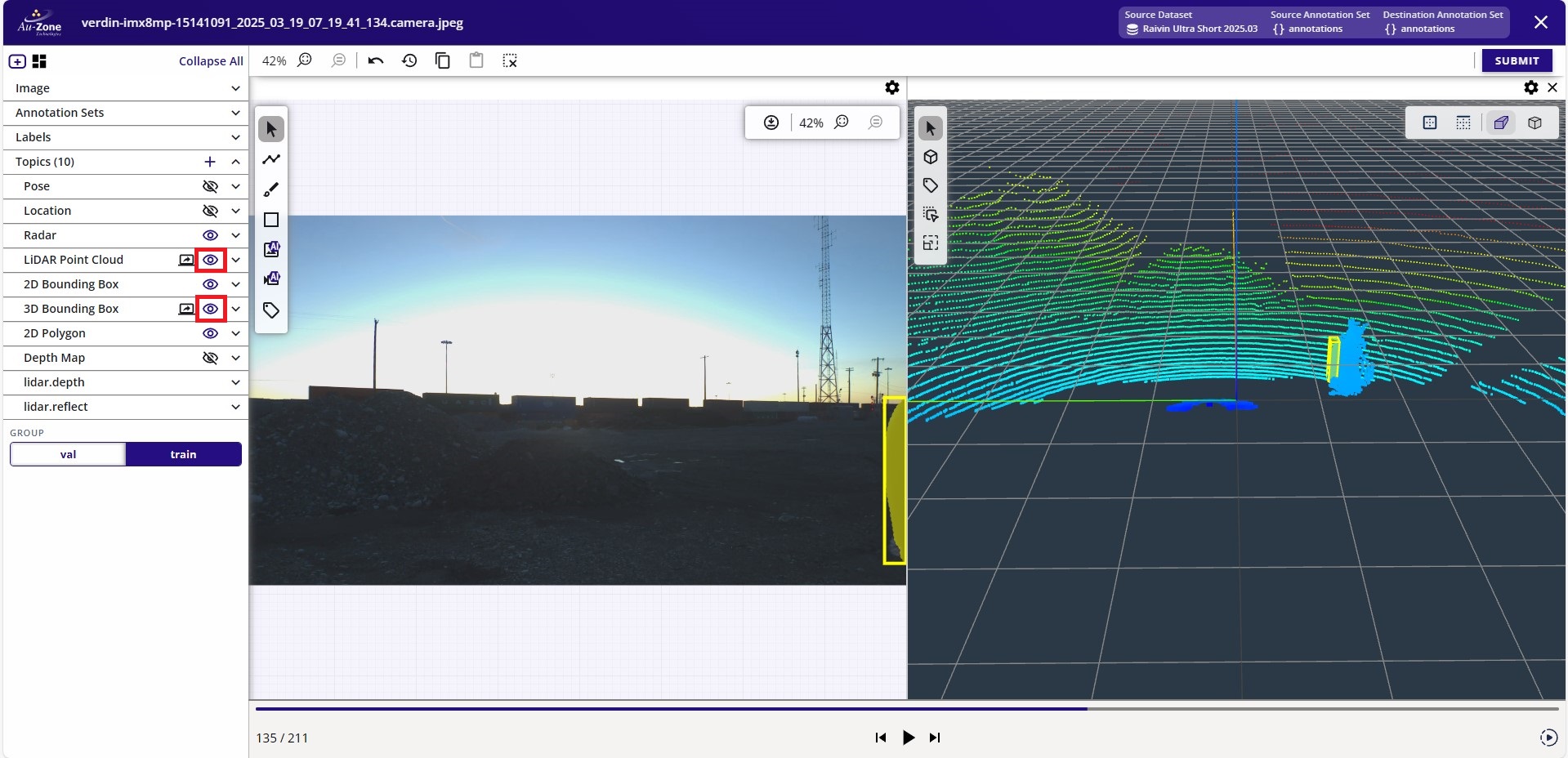

Ensure the point clouds and the 3D bounding box annotations are toggled visible.
Scale 3D Annotation

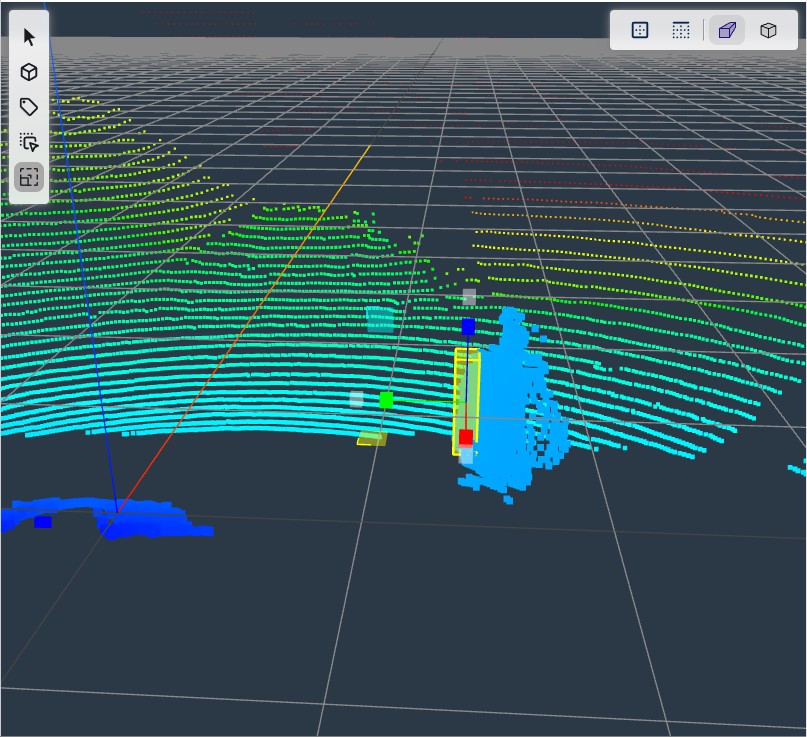

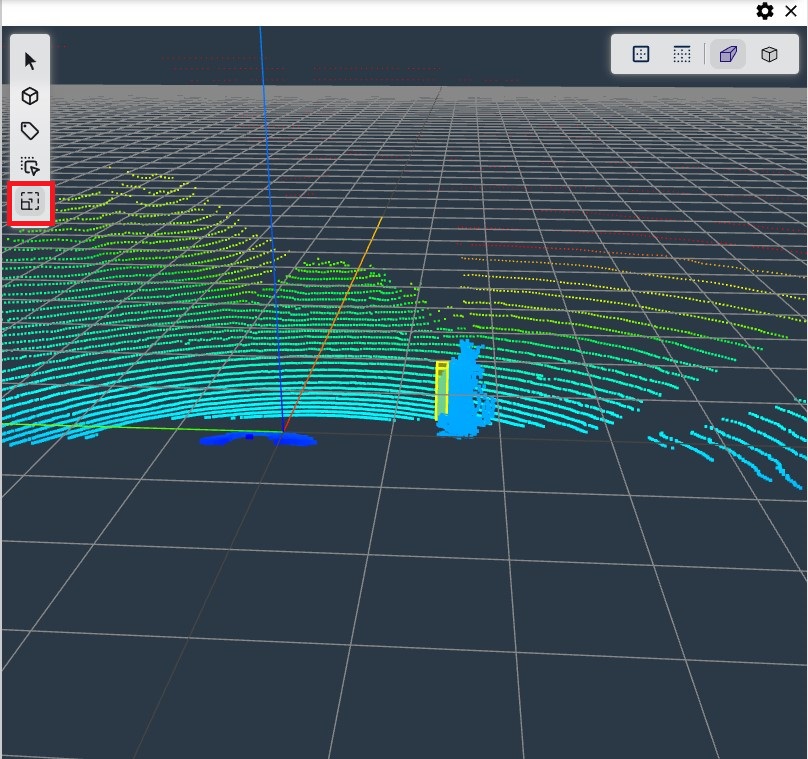

The error in the current annotation is that the bounding box is not scaled properly. Click on the option on the left sidebar to enable 3D bounding box scaling as highlighted in red.
Click on the current 3D bounding box to scale and this will provide cursors to scale the 3D bounding box in the 3-axis.
The 3D bounding box was adjusted with proper scaling to the LiDAR point clouds of the object.

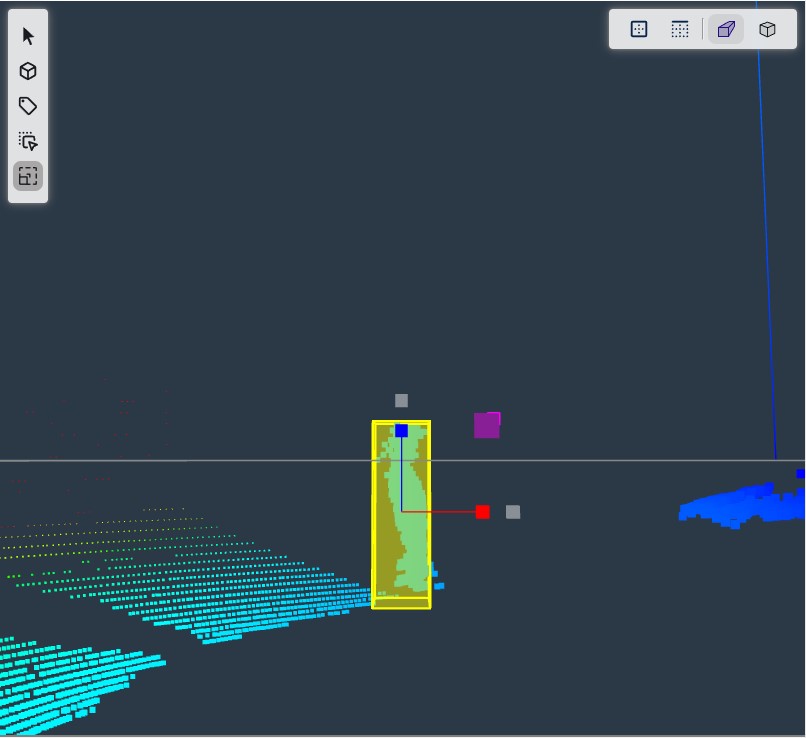

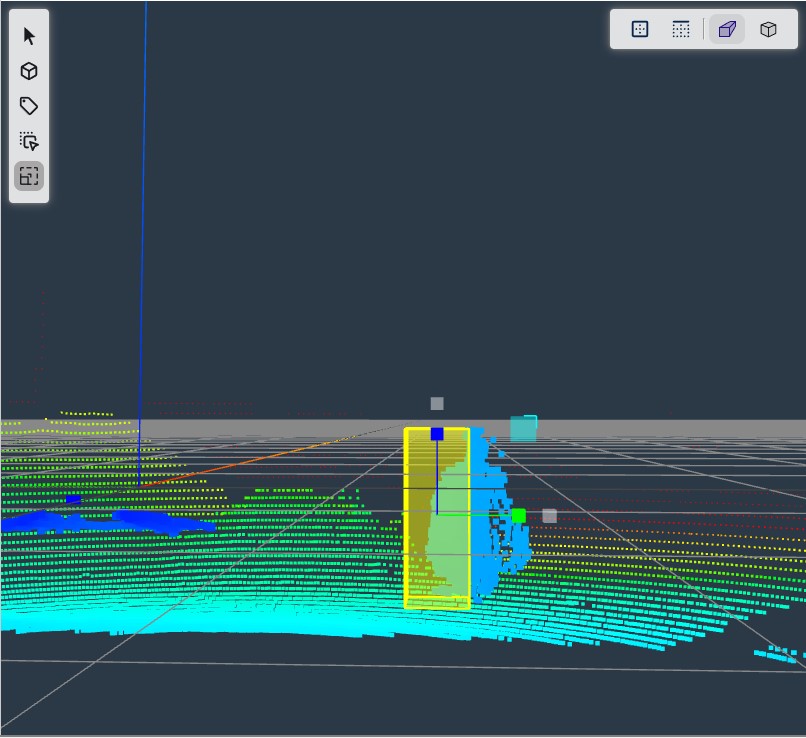

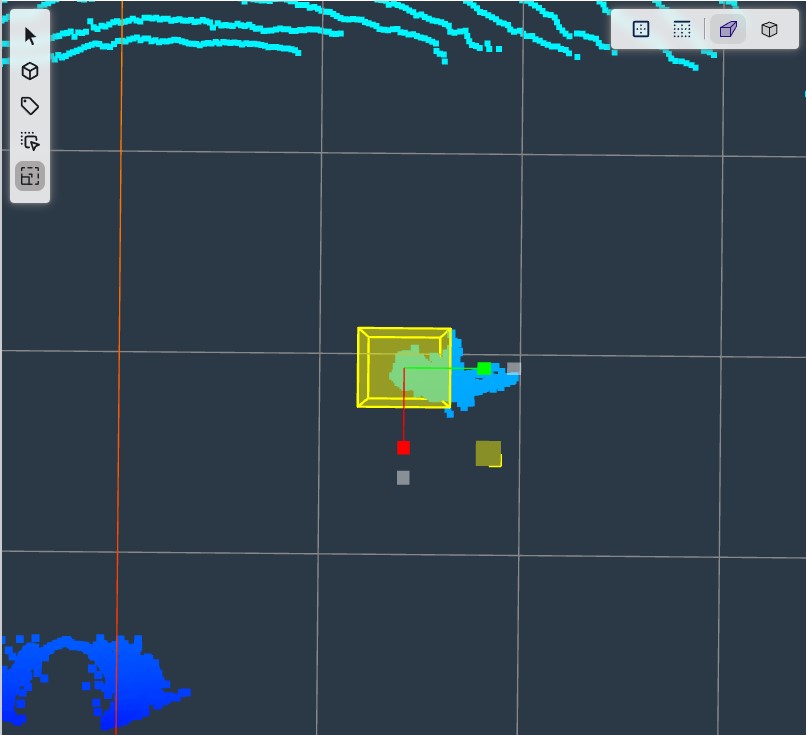

| Scaled YZ Plane | Scaled XY Plane | Scaled XZ |
|---|---|---|
 |
 |
 |
Translate 3D Annotation

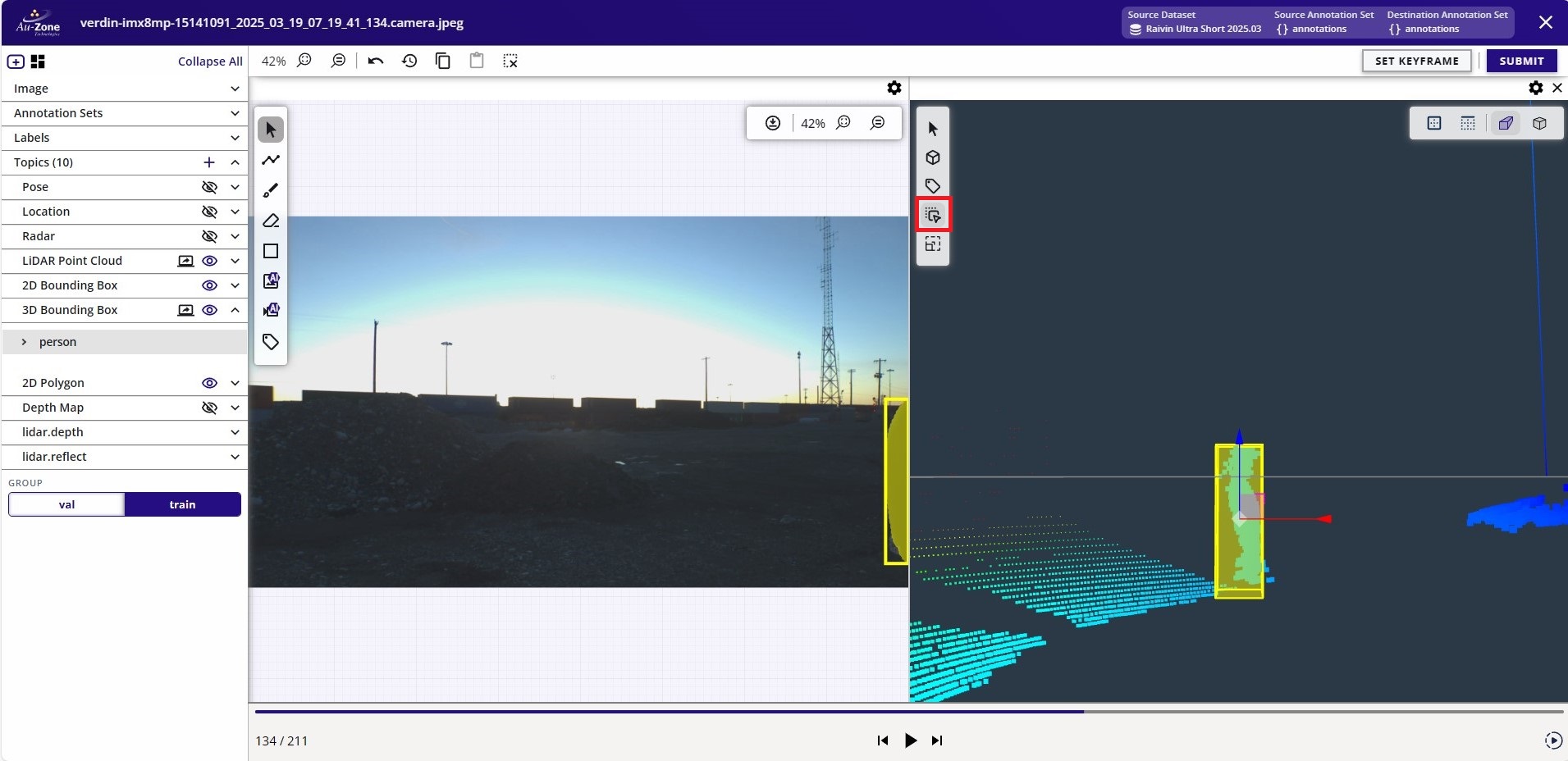

Next the adjusted 3D bounding box needs to be properly translated. Click on the option on the left sidebar to enable 3D bounding box translation as highlighted in red.
Similar to the workflow as scaling the 3D bounding boxes, move the three cursors for each axis to translate the bounding box for each axis.

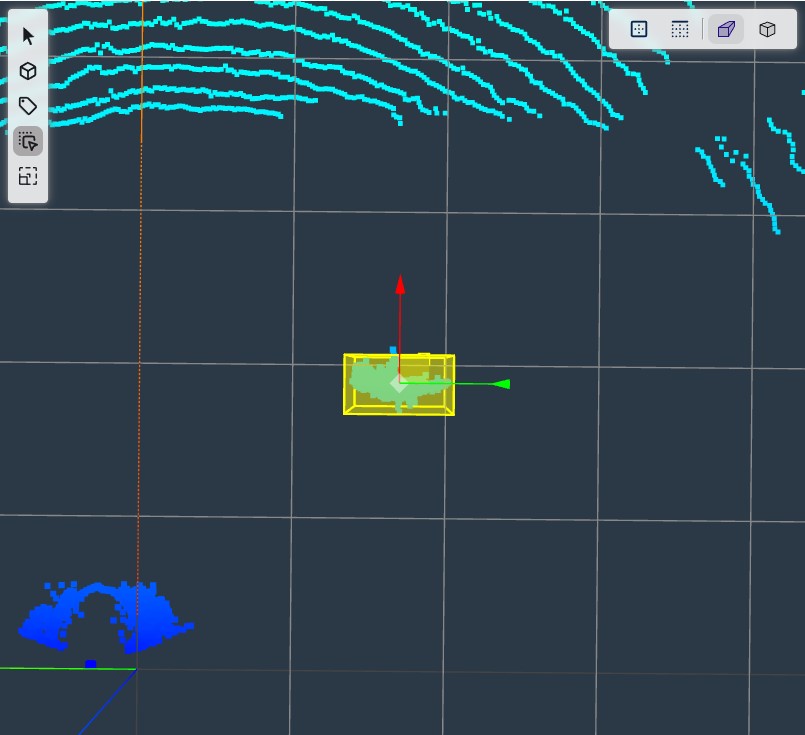

| Translate YZ Plane | Translate XY Plane | Translate XZ |
|---|---|---|
 |
 |
 |

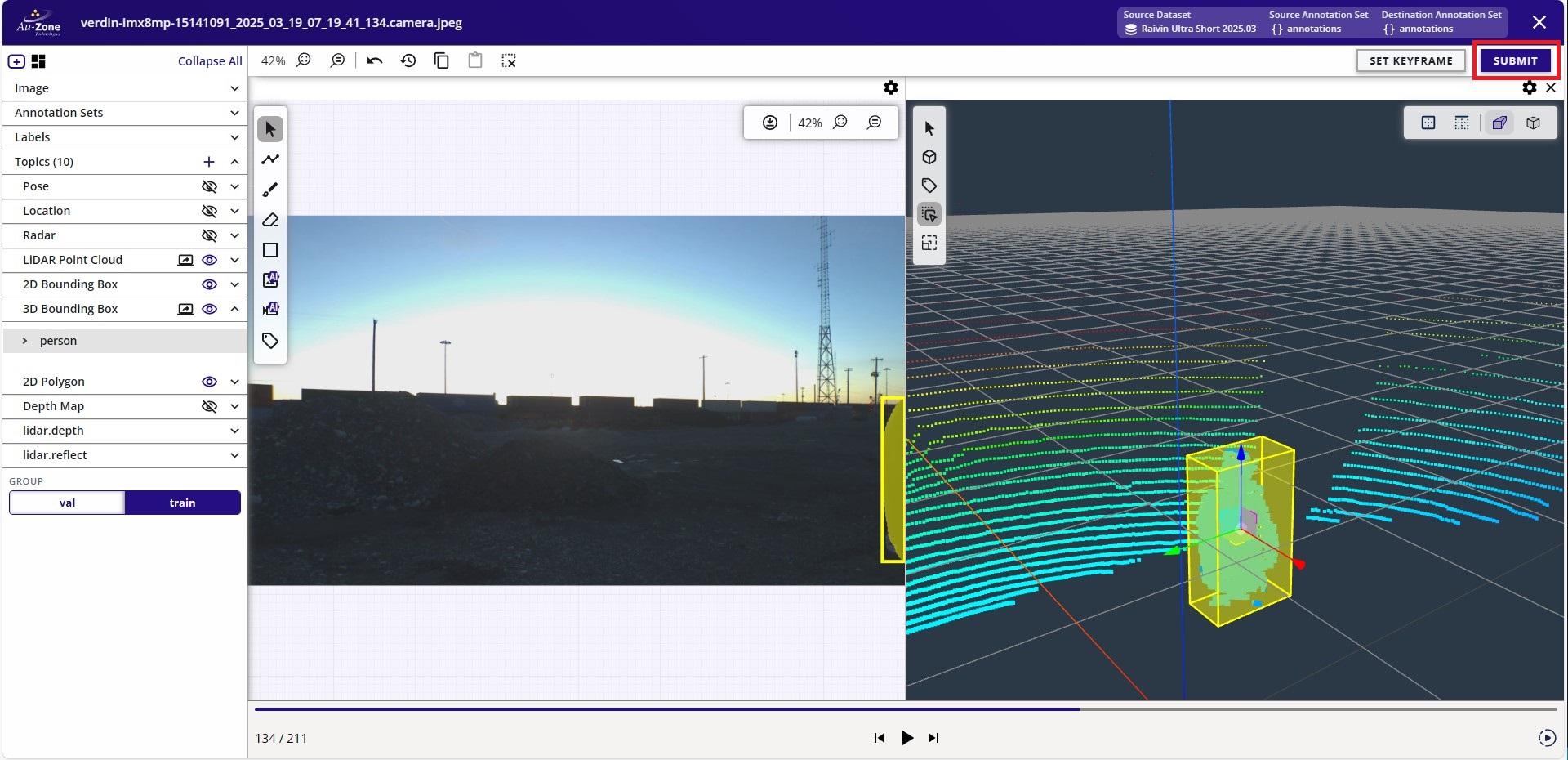

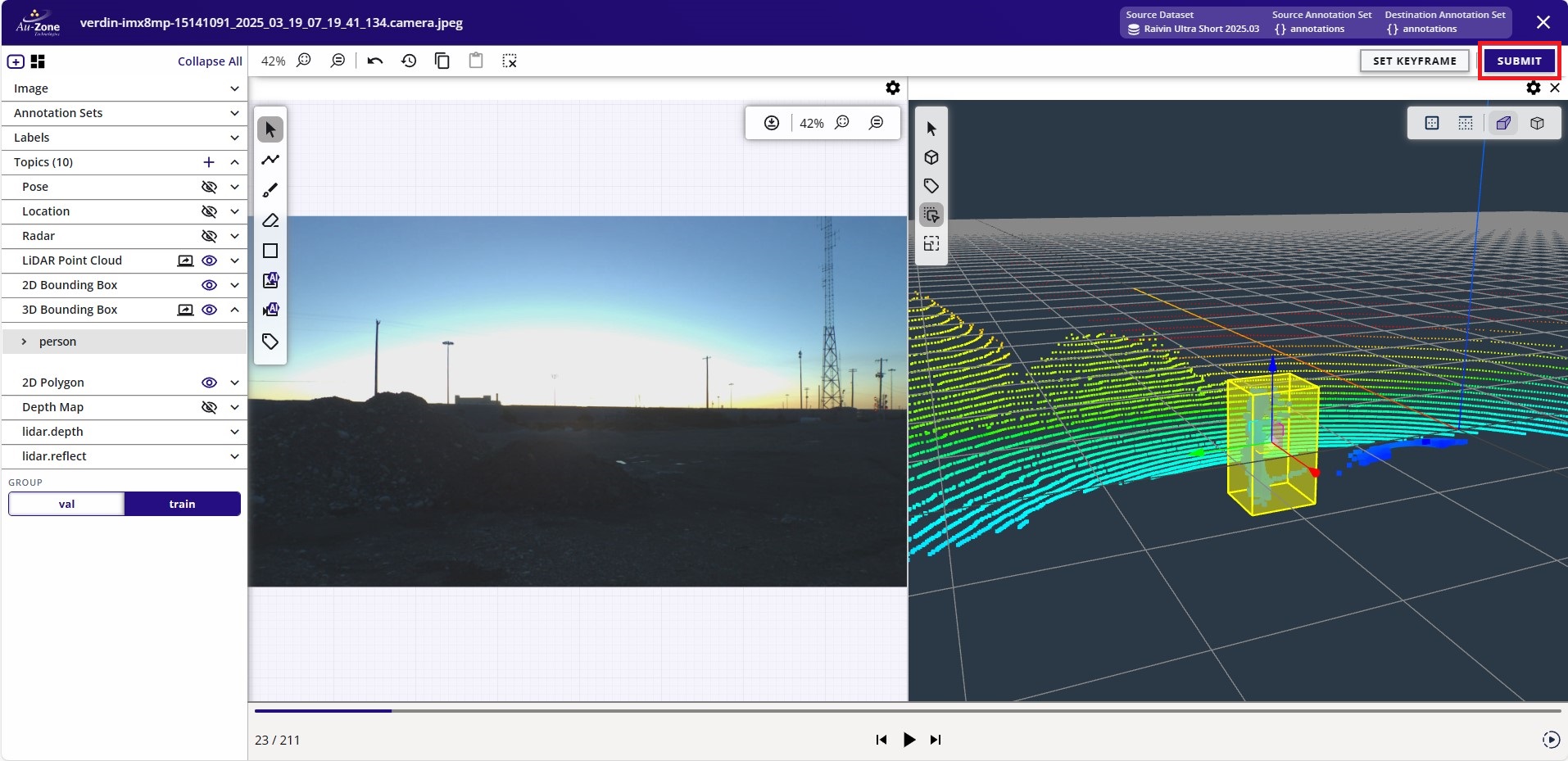

Once the 3D bounding box annotation is properly oriented, click "SUBMIT" to save the changes.
Add 3D Annotation
To add a missing 3D bounding box, click on the option on the left sidebar to add a new 3D bounding box annotation as highlighted in red.

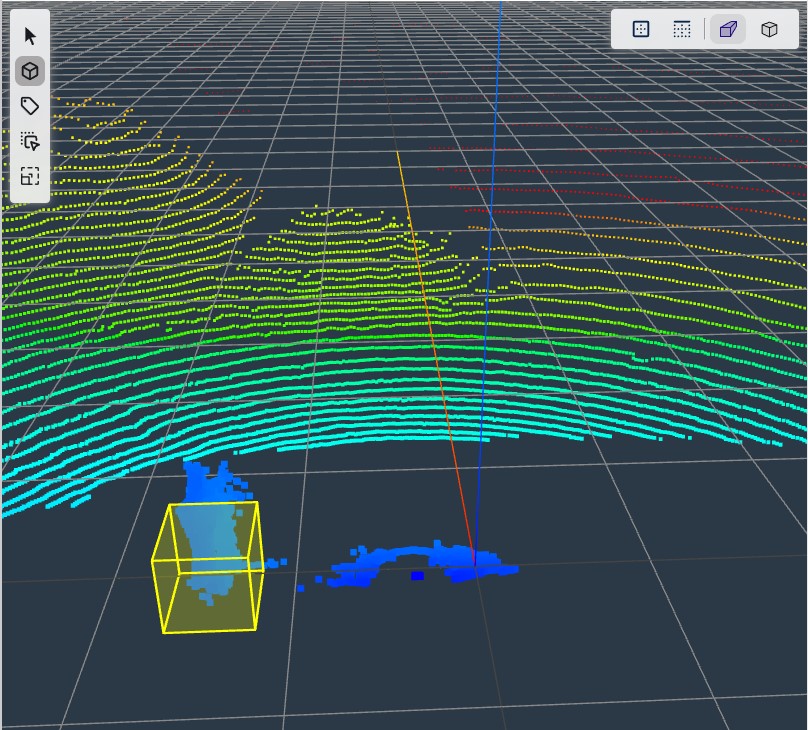

Now click on the grid to add a new 3D bounding box on the position of the click.
This newly added 3D bounding box may not be scaled or translated properly. Follow instructions for scaling and translating a 3D bounding box to properly center the bounding box around the LiDAR point cloud as shown below. Once the annotation is properly scaled and translated, click "SUBMIT" to save the annotation.
Viewing Datasets
This tutorial will show how to view the contents in the dataset.

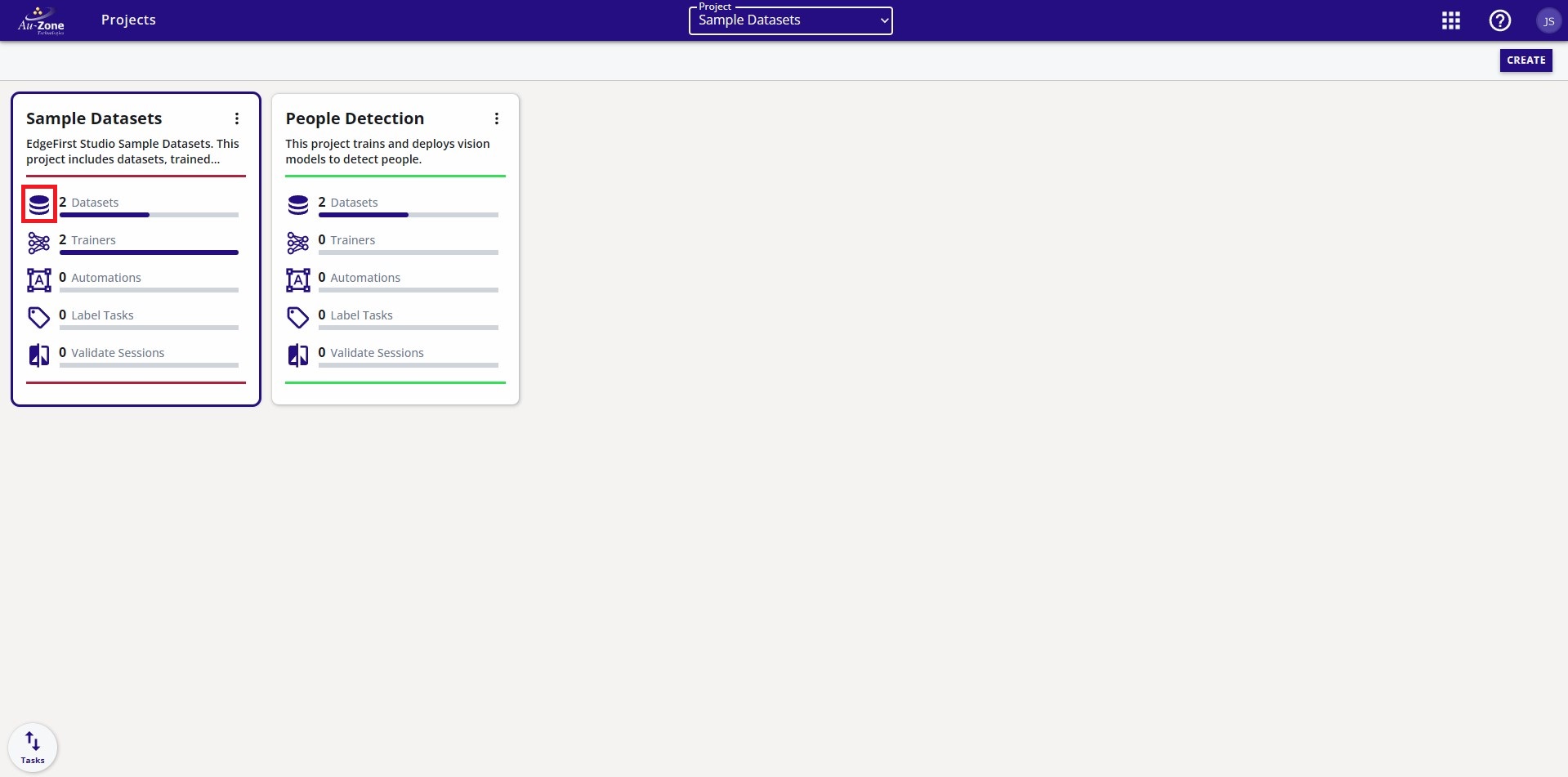

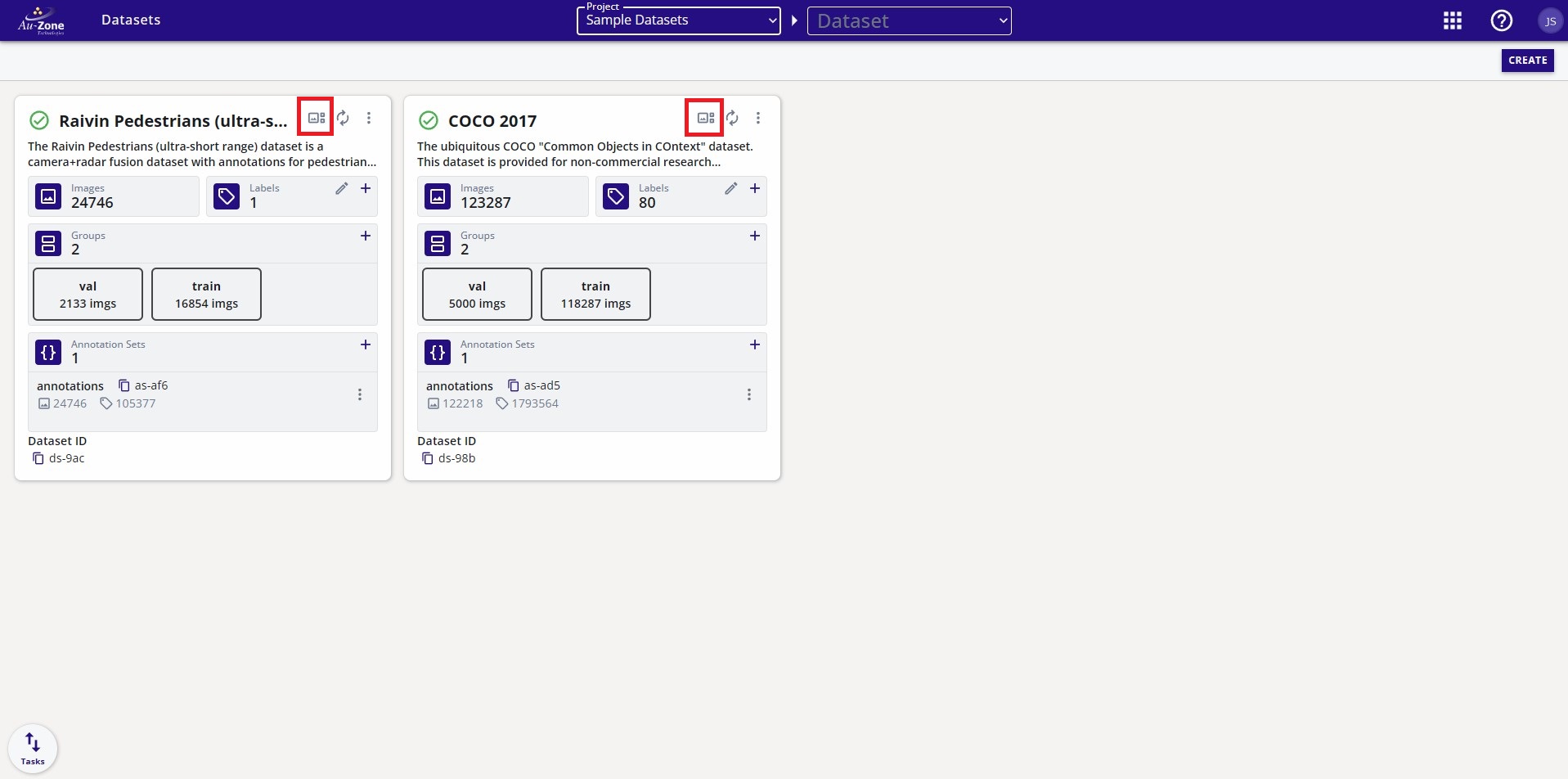

In the project's page, you can click on the dataset button highlighted in red to view the datasets contained in the project.
You will now see the datasets contained in the project. Each dataset has a gallery. To see the images in the gallery, open the gallery by clicking the gallery button highlighted in red.
When clicking the gallery button, you will either see the images in the dataset for Image-Based Datasets or sequences for Sequence-Based Datasets.

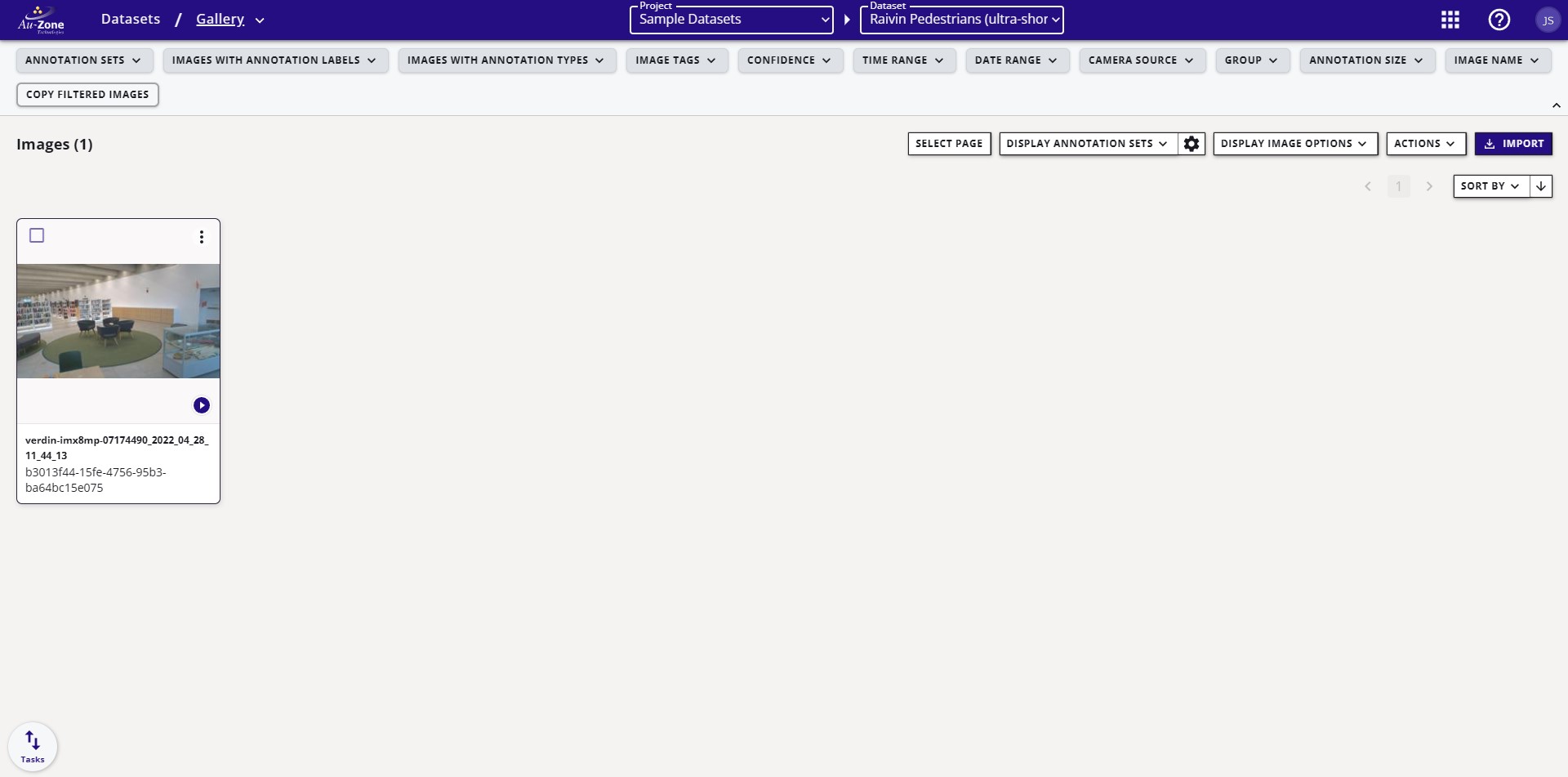

For sequence-based datasets, you need to specify which sequence you would like to view. This can be done by clicking on the sequence.
Note
The Raivin Pedestrians (ultra-short range) 2025.03 has a single sequence.
When the sequence is clicked, you will now see the frames stored in the sequence along with the annotations.
Verifying Datasets
This tutorial will show an example of a dataset that is ready for training.

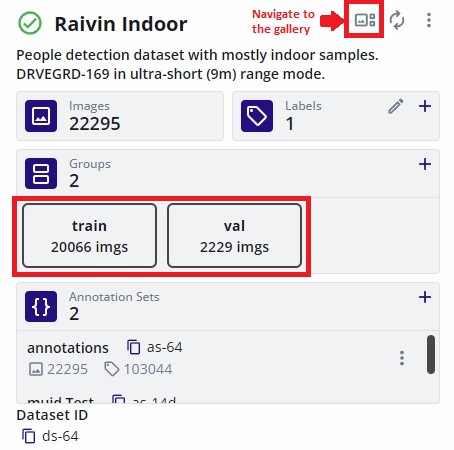

Verify that the dataset has a training and validation split. The sample dataset shown below has a dedicated split for training (20066 samples) and validation (2229 samples).

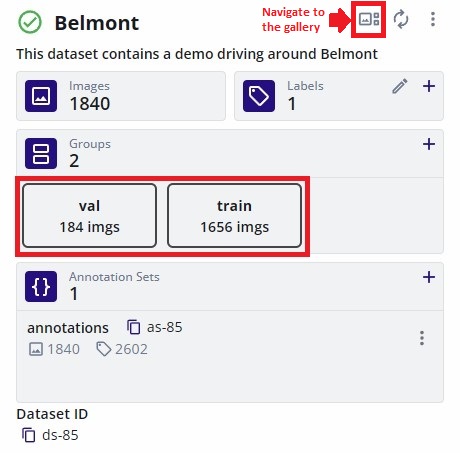

Another sample dataset shown below is for training Vision models which has a dedicated split for training (1656 samples) and validation (184 samples).

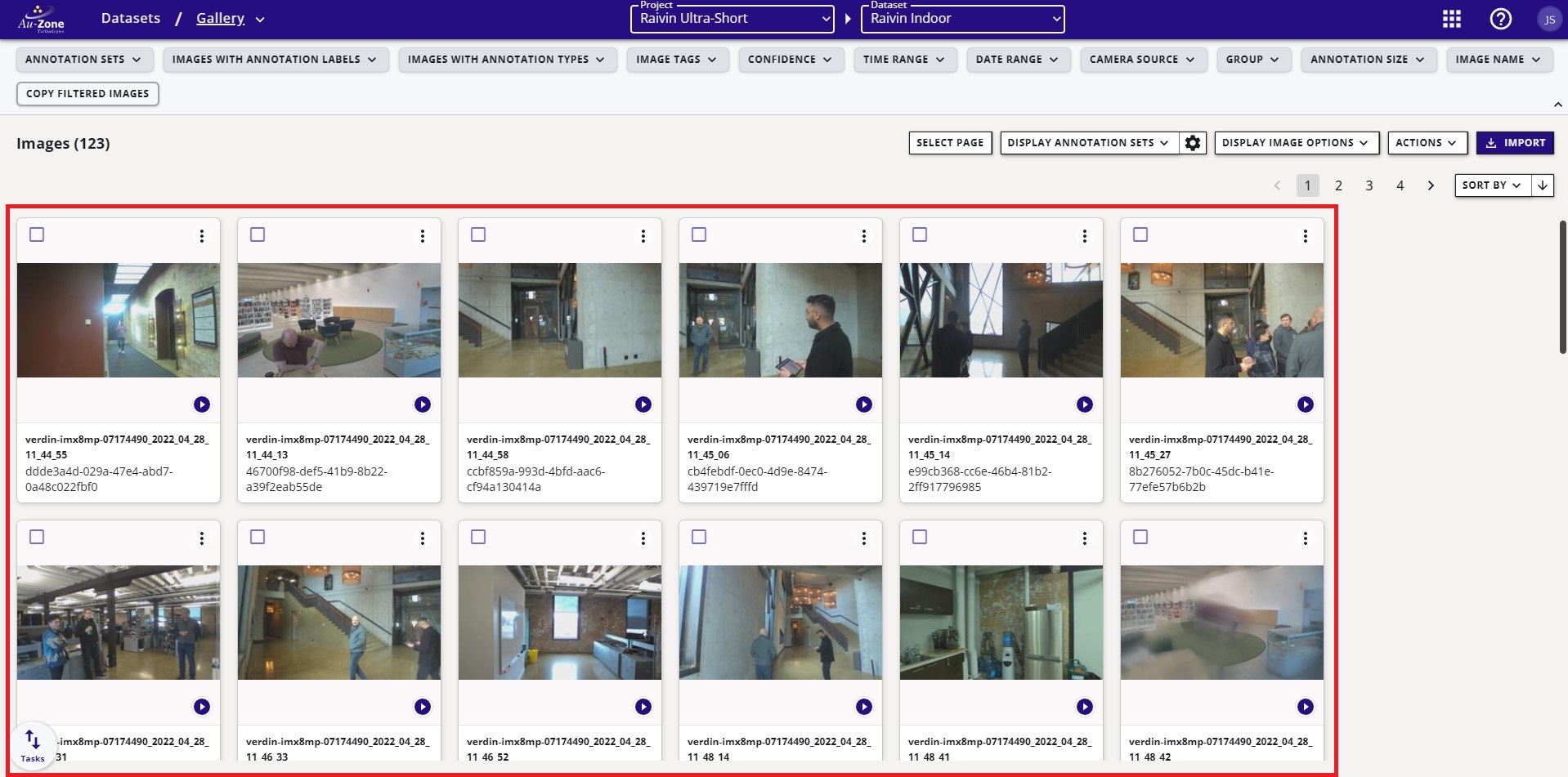

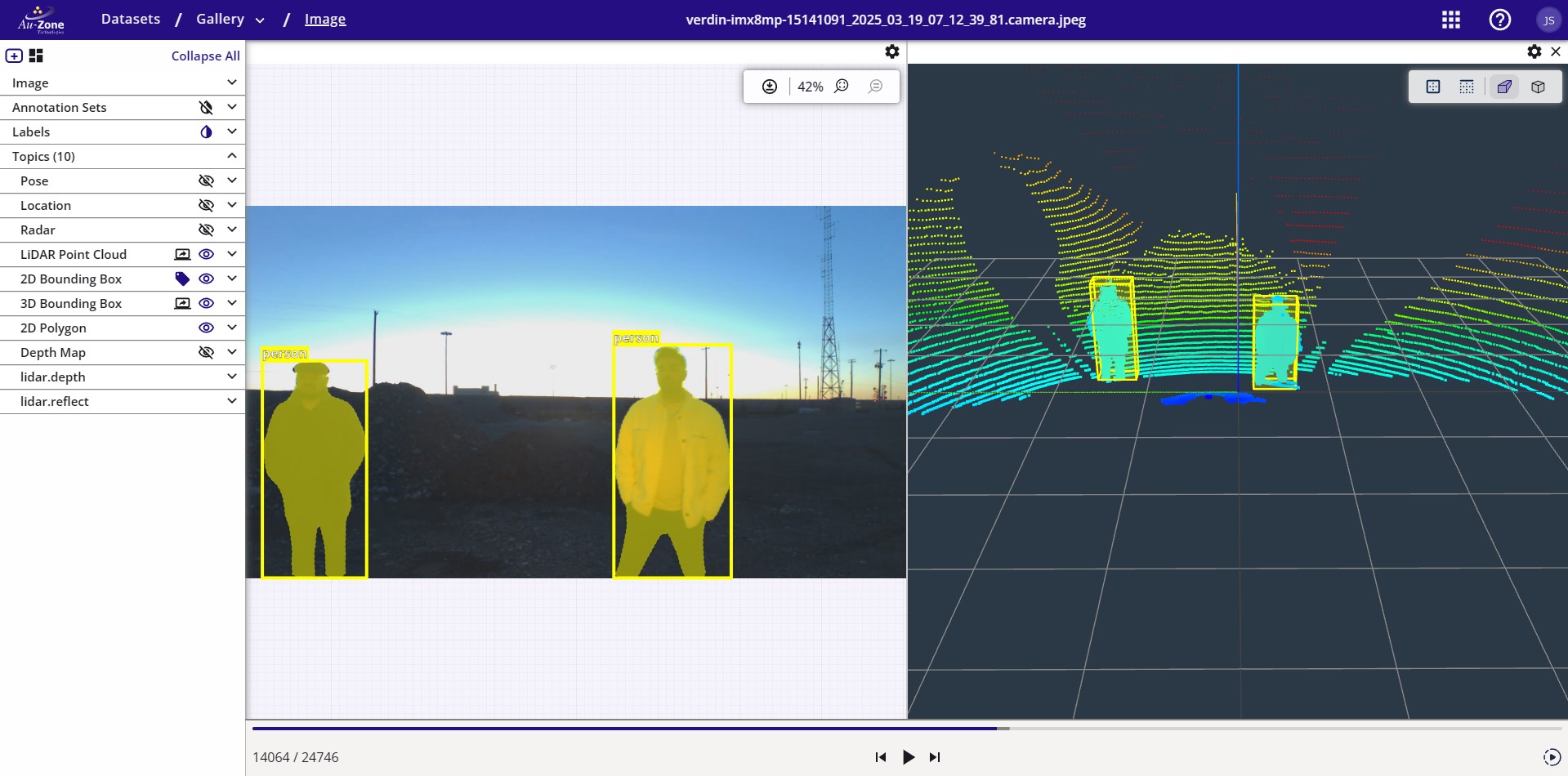

Verify the contents of the dataset and the annotations. Click the button that navigates to the gallery. This will show the contents of the dataset. The dataset may be comprised of multiple sequences as shown below.

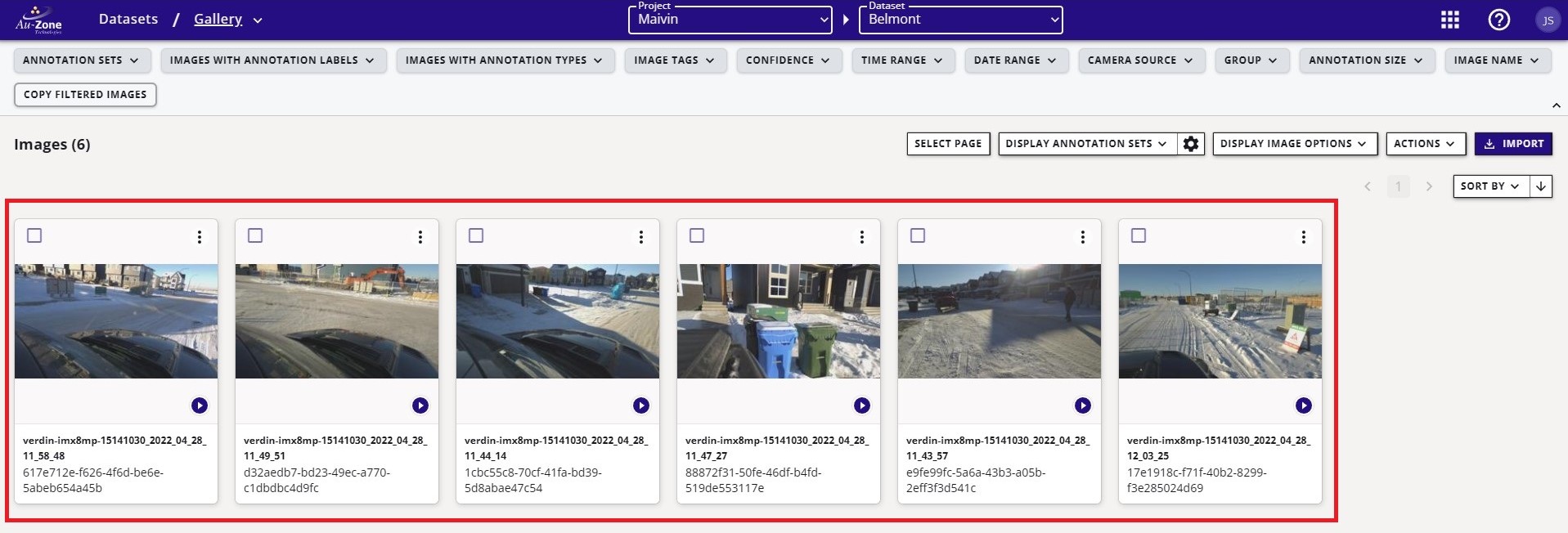

Clicking on any of these sequences will open individual images in the sequence with the visualizations of the annotations. For more information please see Viewing Datasets above.
Info

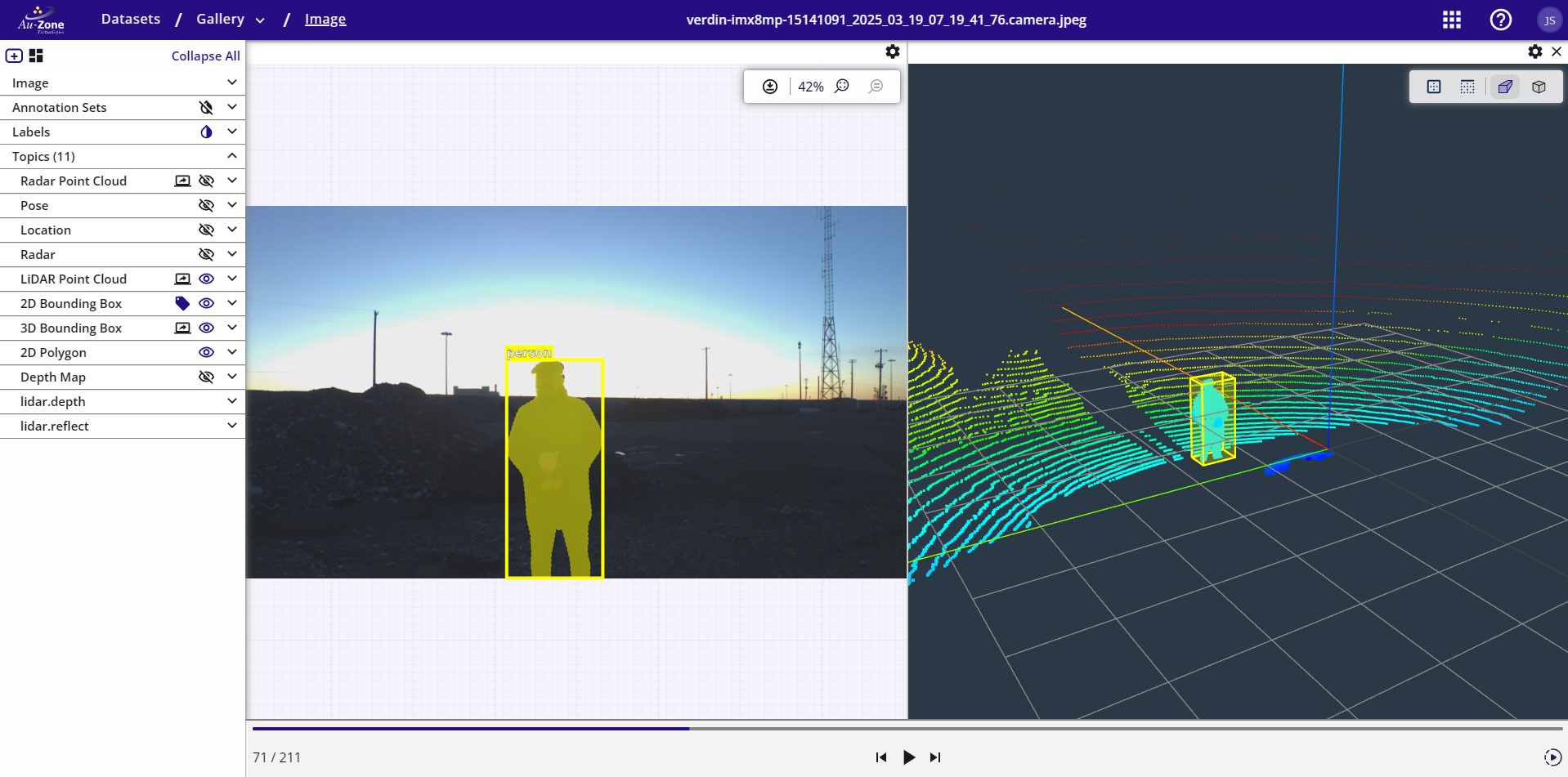

Datasets that train Fusion models provide world annotations of the object's 3D bounding box. For more information on the dataset annotations, please see EdgeFirst Dataset Format.
Info

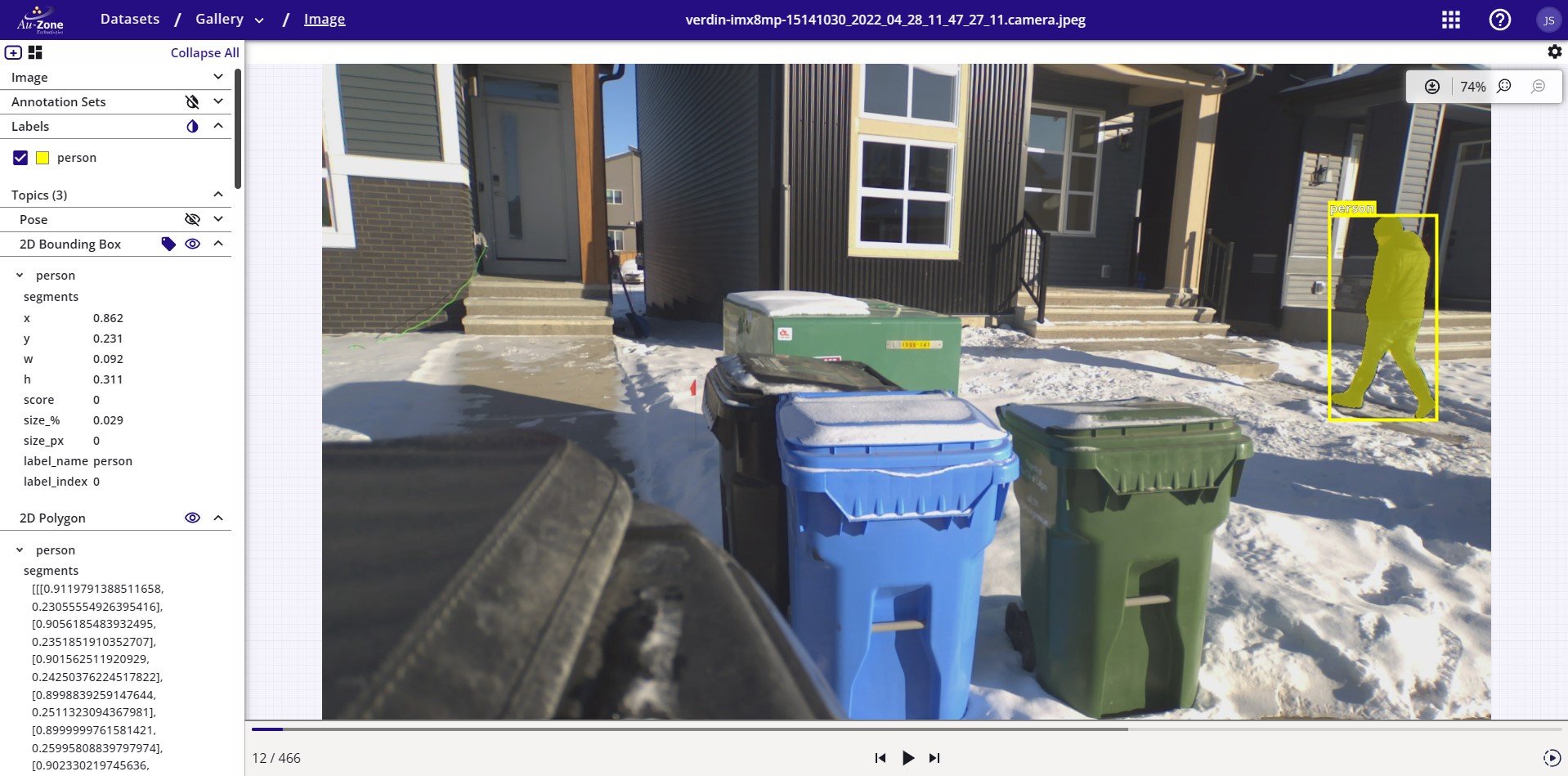

Datasets that train Vision models provide image annotations of the object's 2D bounding box and segmentation mask. For more information on the dataset annotations, please see EdgeFirst Dataset Format.
For cases where the annotations need corrections, please see Audit 2D Annotations for more details.
Creating Datasets
This tutorial will show how to create an empty dataset container in EdgeFirst Studio. This container is needed for copying or combining datasets as shown in the next sections.

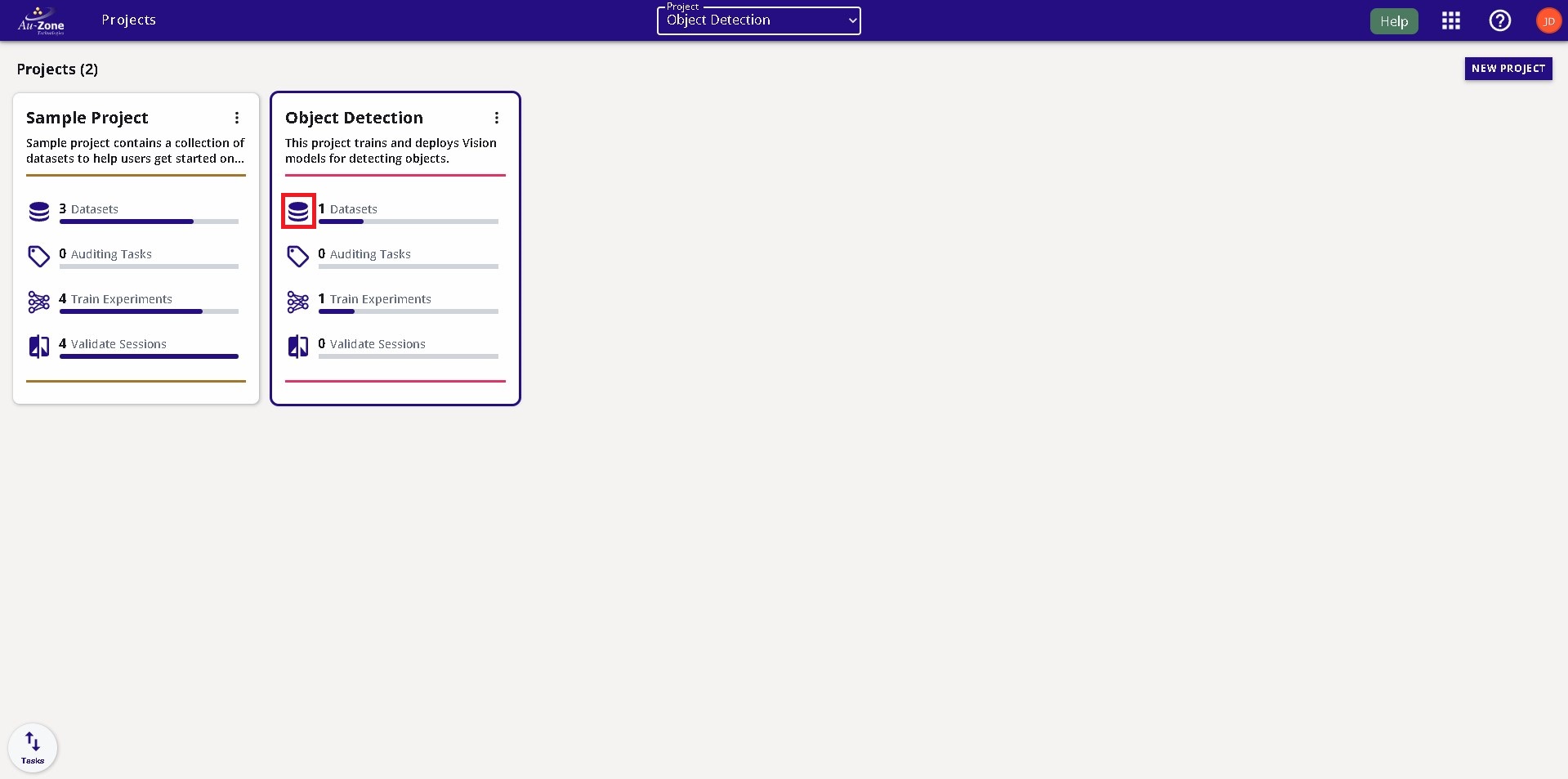

To create a dataset, first select the project to store the new dataset. Next click the dataset button (highlighted in red) to view the datasets in that selected project.
Next create a new dataset by clicking the "NEW DATASET" button highlighted in red on the top right.

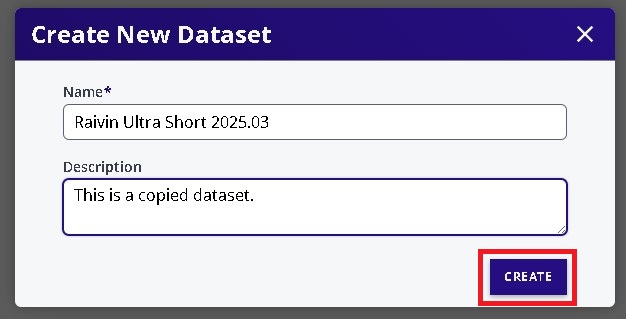

Provide the dataset name and the dataset desciption for this new dataset. In this example the name is the same as the original dataset source. Once the fields are filled, click the "CREATE" button on the bottom left of the window dialog.

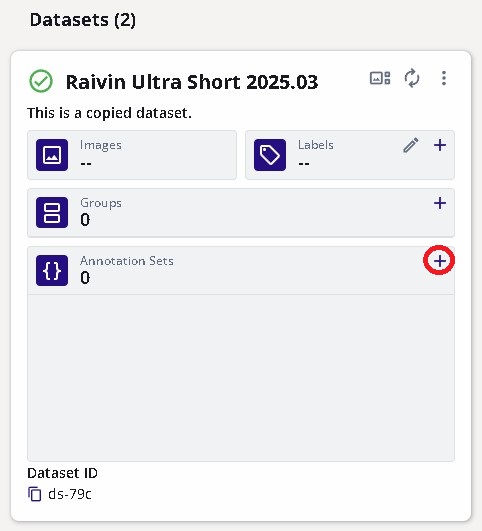

Once created, define an annotation set. The annotation set is a container for storing the annotations in the original dataset. To create an annotation set, click the "+" button in the "Annotation Sets" field.
Next provide the name and description for the annotation container as shown below. Once provided, click "CREATE NEW SET" to create the annotation set.

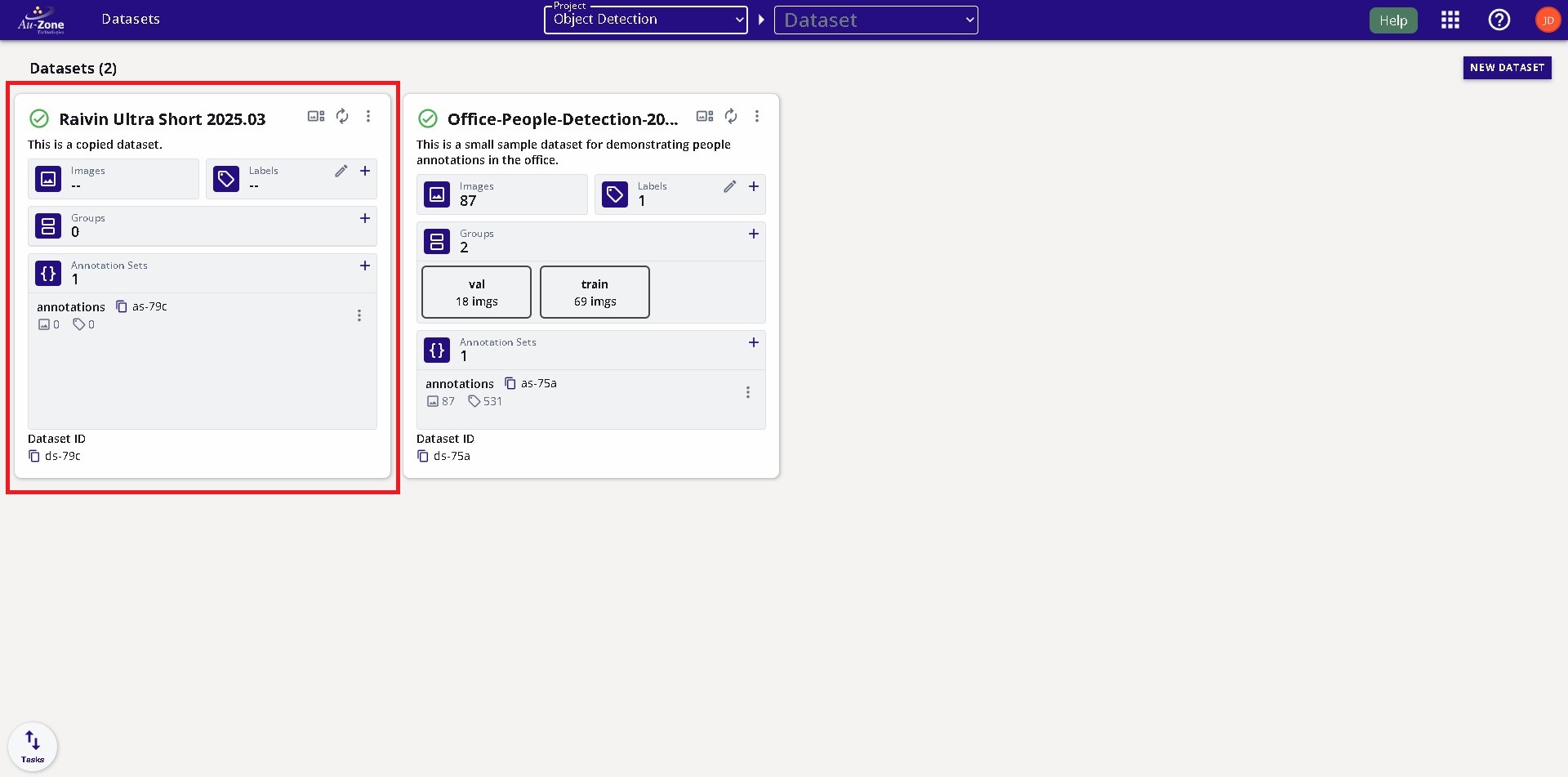

You have now created a dataset and an annotation set container as shown below. This container can be used to store copied or combined datasets.
Copying Datasets
This tutorial will show how to copy the dataset to a different container.

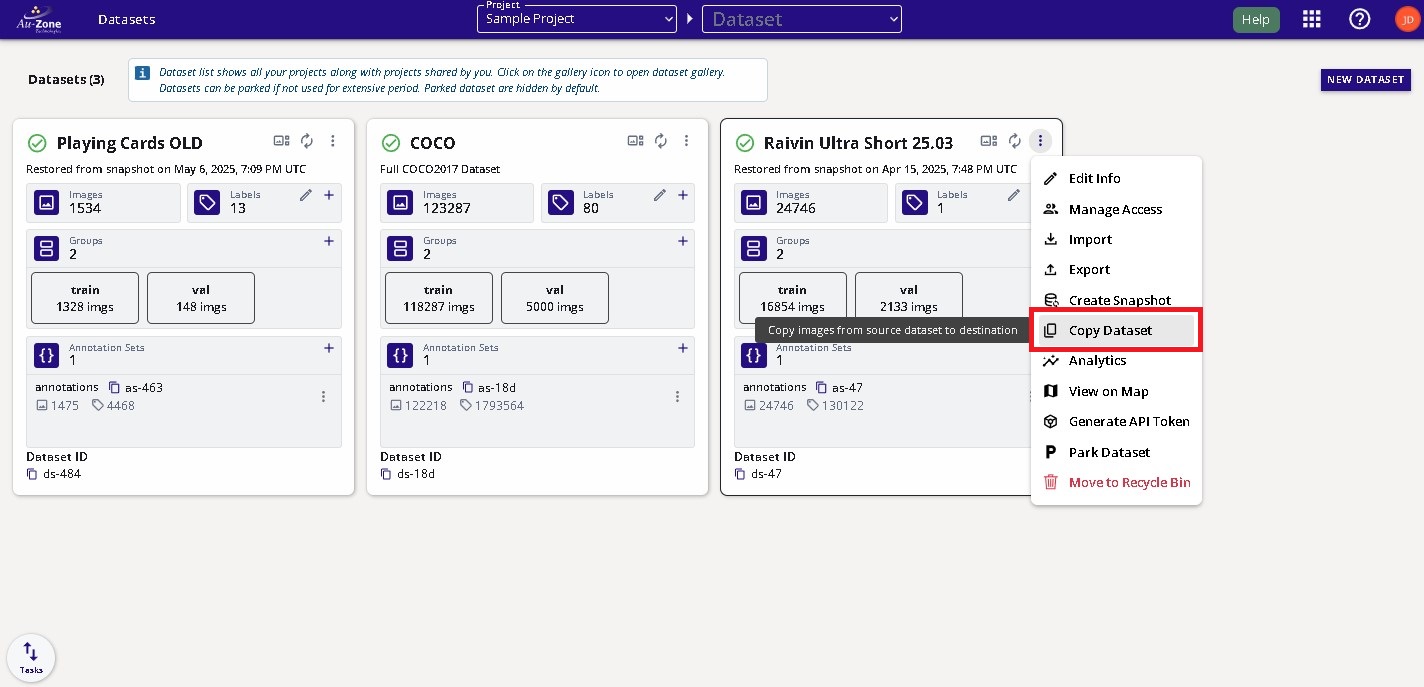

To copy a dataset, first create a dataset container. Once created, select the "Copy Dataset" from the dataset options on the newly created dataset container as shown below.

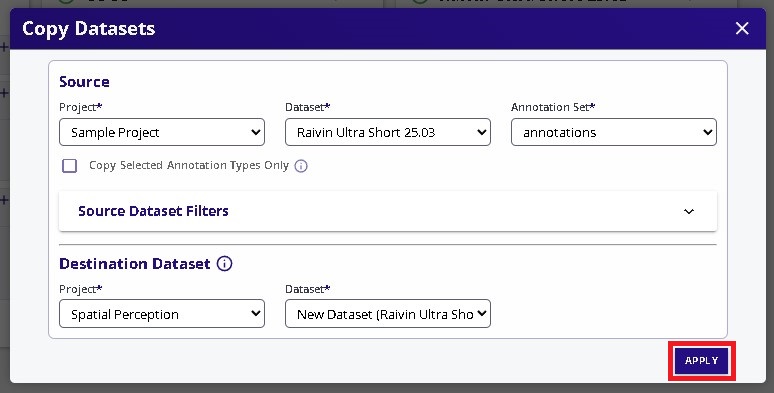

This will open a new dialog for the user to specify the source dataset and the destination dataset. The source dataset is the original dataset and the destination dataset is the dataset container that was just created. The following options specified are shown below.

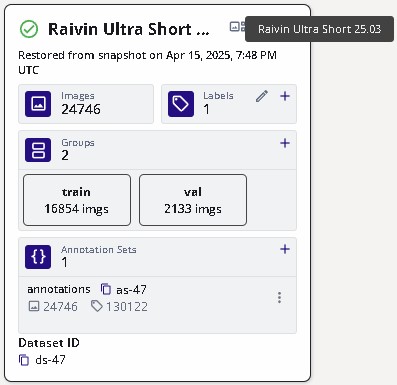

The options provided above specifies the source dataset to originate from the public dataset "Raivin Ultra Short 2025.03" inide the public project "Sample Project". Next the destination dataset is the dataset and annotation containers that was created. Once the options are specified, go ahead and click "APPLY" to start the copy process.

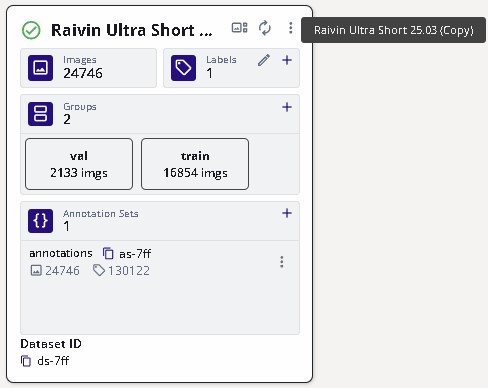

Once the copying process completes, the frames and the annotations have been copied.
| Original Dataset | Copied Dataset |
|---|---|
 |
 |
Combining Datasets
The process of combining datasets consists of multiple copy processes on a given dataset container. To combine datasets, first create a dataset container. Follow the process for copying a dataset onto the destination dataset container that was created. The copy process will copy the selected dataset onto the same dataset container and thus combining multiple datasets.
Splitting Datasets
A proper dataset has samples reserved for training and validation. This tutorial will show how to split the samples in the dataset into training and validation groups.

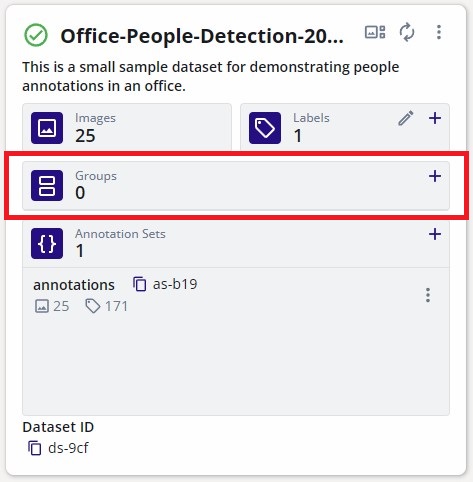

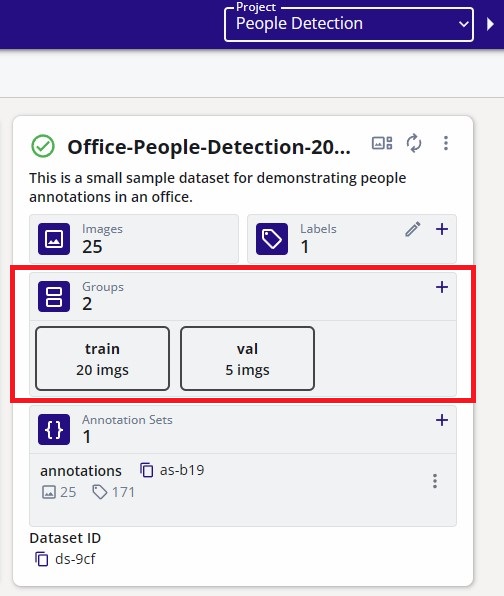

Consider the following dataset without any groups reserved.

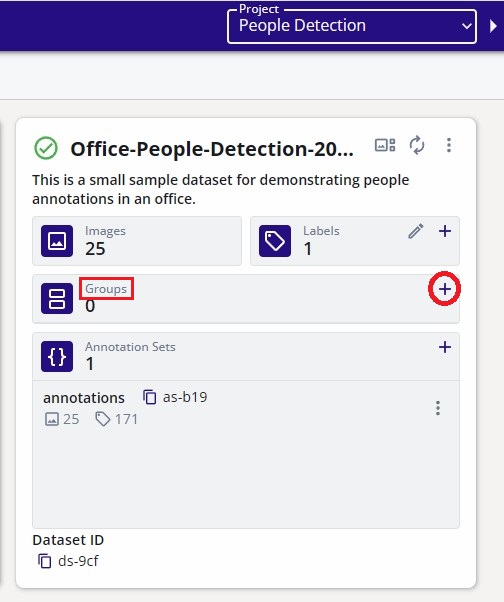

To create the dataset groups, click on the "+" button in the Groups field.

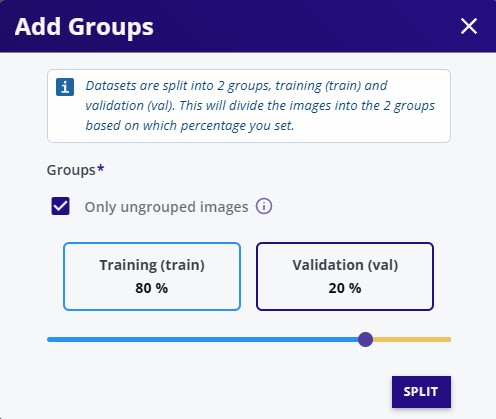

This will open a new dialog to list the groups needed by the user and the percentages dedicated for each group. Often the groups "train" and "val" are created, but the user is free to specify their own groups.
Once the groups are specified, click ADD GROUPS to create the groups. This will automatically divide the samples in the dataset based on the percentages of each group specified.
Importing Datasets
This tutorial will show how to import a dataset into EdgeFirst Studio. For importing EdgeFirst Datasets, please see the instructions for Upload from Zip/Arrow File.
This tutorial will show importing a dataset such as COCO128 as an example.

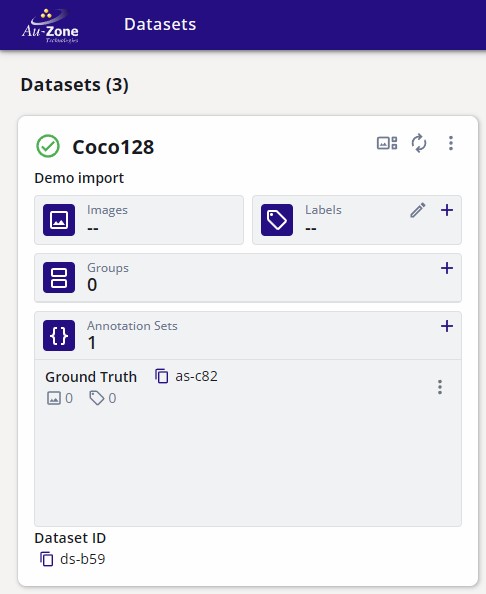

To import a dataset, first create a dataset container. The following dataset is created with the name set to "Coco128" and the description as "Demo import". Furthermore, an annotation set has also been created called "Ground Truth".
For an example dataset, COCO128 was downloaded using the link provided. This will download a ZIP archive which can then be extracted.

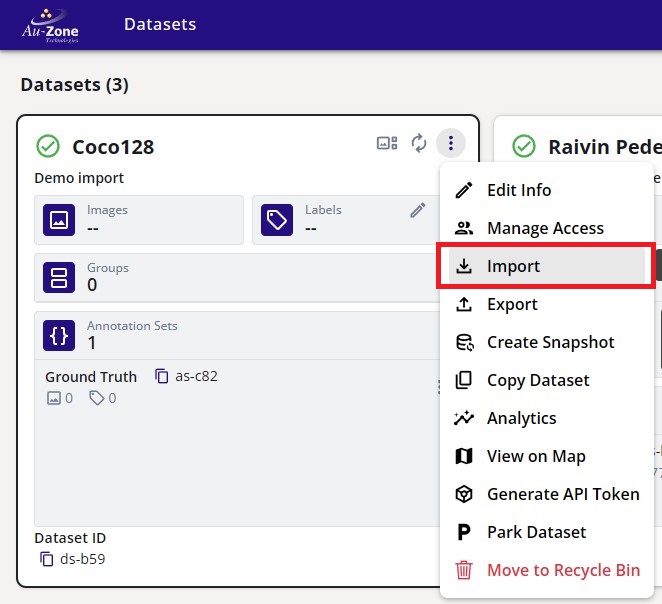

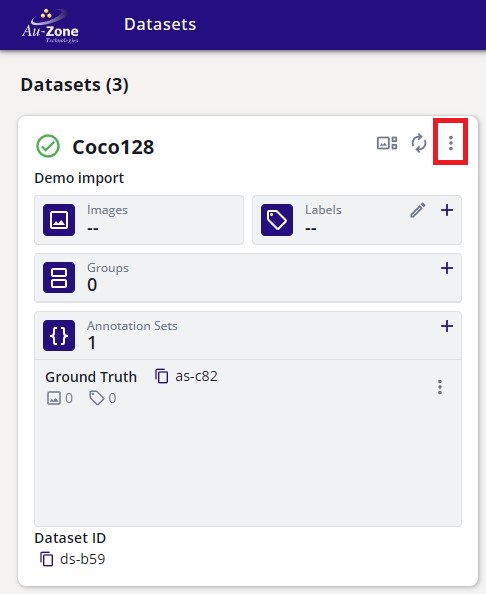

Once a container has been created, open the dataset options denoted by the three vertical dots on the top right corner of the dataset card.
Select "Import".

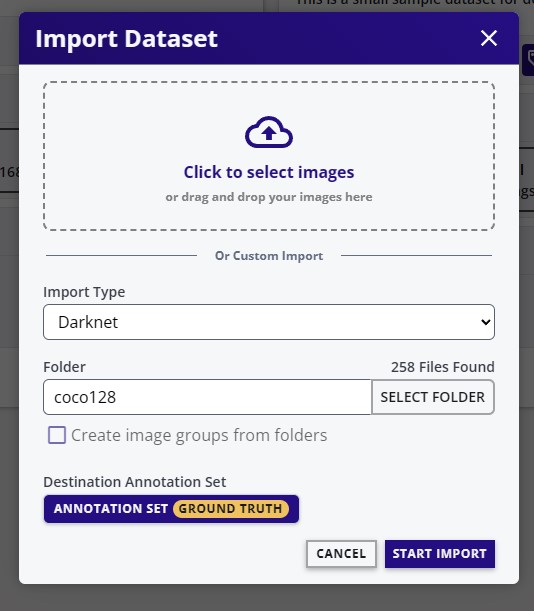

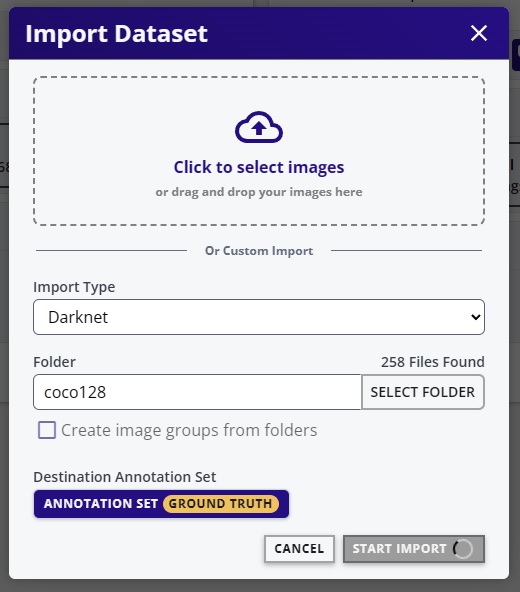

This will popup a new window for you to specify the dataset to be imported. In these options, select the "Import Type" to be "Darknet". Specify the dataset folder "coco128" to be imported. Specify the annotation set to the "Ground Truth" annotation set. The following figure shows the specifications.

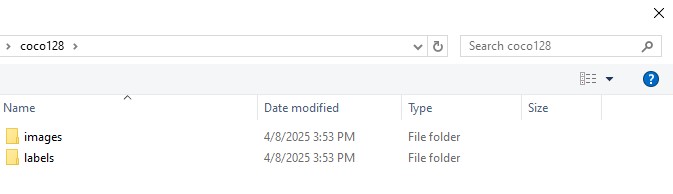

The "coco128" dataset that was specified contains the "images" and "labels" subdirectories.
Select "START IMPORT" at the bottom right to start the import process.
This will start the import process as shown.

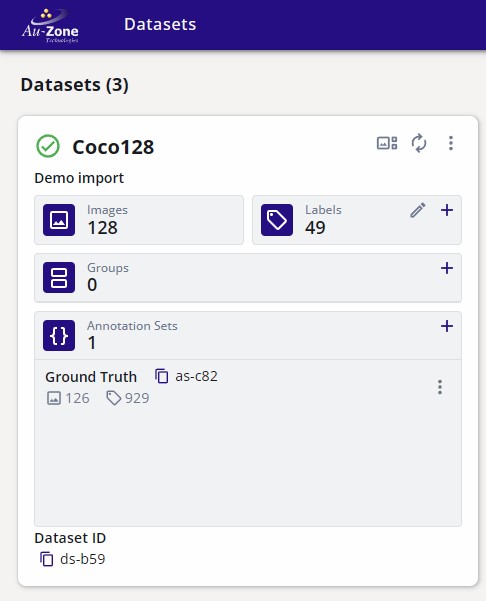

Once completed, refresh the page to see the changes. The dataset container will now contain 128 images from COCO and the annotations stored in the "Ground Truth" container.
To view the dataset, refer to the instructions provided in Viewing Datasets.
Exporting Datasets
Coming Soon
