Camera Schema Examples

These examples demonstrate how to connect to various camera topics published on your EdgeFirst Platform and how to display the information through the command line.

Camera Info

Topic: /camera/info
Message: Image

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the camera/info topic

PythonRust

# Create a subscriber for "rt/camera/info"
subscriber = session.declare_subscriber('rt/camera/info')

// Create a subscriber for "rt/camera/info"
let subscriber = session
    .declare_subscriber("rt/camera/info")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import CameraInfo
msg = subscriber.recv()
info = CameraInfo.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::CameraInfo;

// Receive a message
let msg = subscriber.recv().unwrap();

let info: CameraInfo = cdr::deserialize(&msg.payload().to_bytes())?;

Process and Log the Data

The CameraInfo message contains camera calibration and configuration information. You can access various fields like:

Python

# Access camera parameters
width = info.width
height = info.height
distortion_model = info.distortion_model
D = info.d  # Distortion parameters
K = info.k  # Intrinsic camera matrix
R = info.r  # Rectification matrix
P = info.p  # Projection matrix
rr.log("CameraInfo", rr.TextLog("Camera Width: %d Camera Height: %d" % (width, height)))

Results

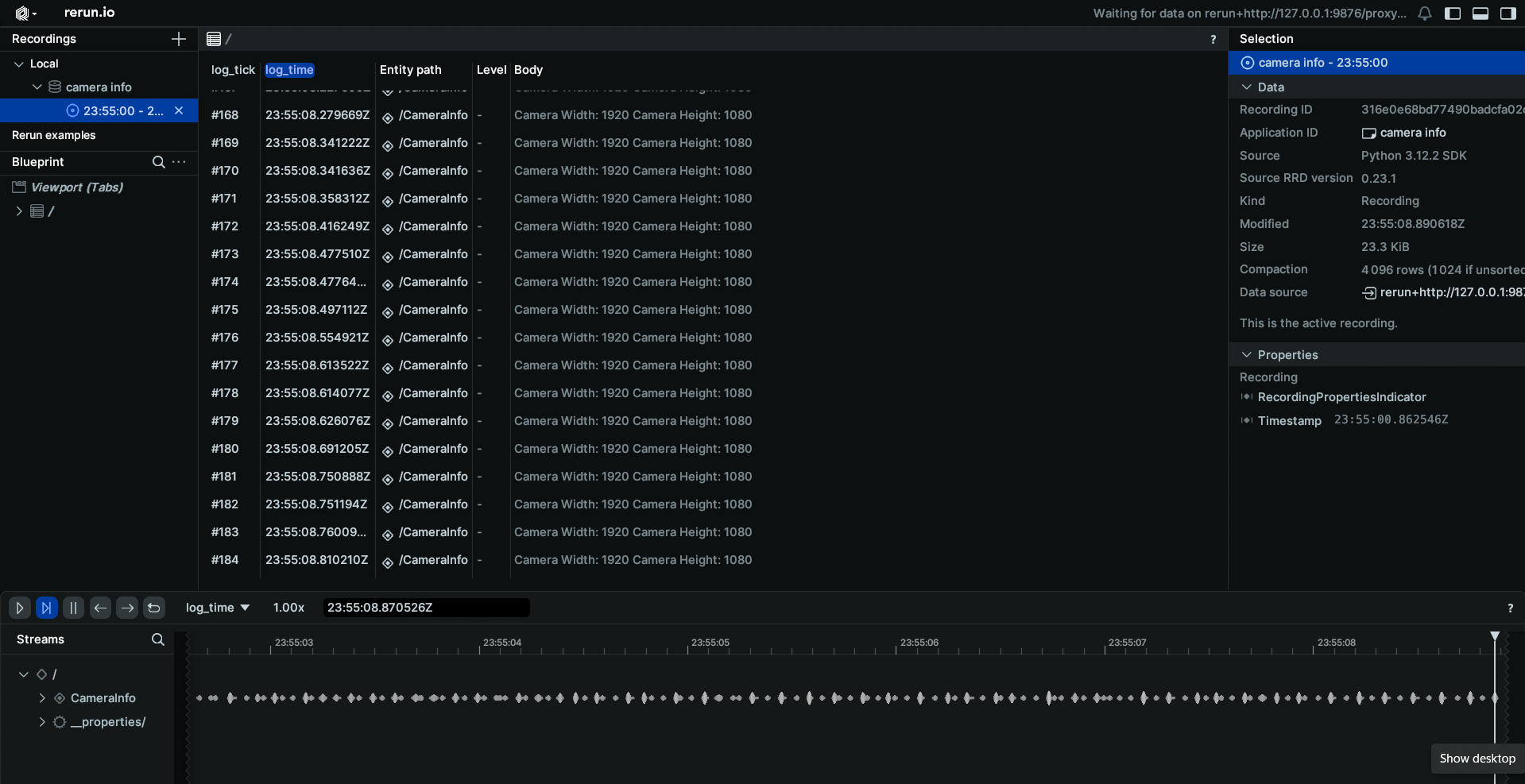

When displaying the results through Rerun you will see a log of the camera width and height. alt text

Rust

// Access camera parameters
let width = info.width;
let height = info.height;
let distortion_model = info.distortion_model;
let D = info.D;  // Distortion parameters
let K = info.K;  // Intrinsic camera matrix
let R = info.R;  // Rectification matrix
let P = info.P;  // Projection matrix

H264 Camera Feed

Topic: /camera/h264
Message: CompressedVideo

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the camera/h264 topic and initialize a container for the H264 feed

PythonRust

# Create a subscriber for "rt/camera/h264"
subscriber = session.declare_subscriber('rt/camera/h264')
raw_data = io.BytesIO()
container = av.open(raw_data, format='h264', mode='r')
frame_position = 0

// Create a subscriber for "rt/camera/h264"
let subscriber = session
    .declare_subscriber("rt/camera/h264")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.foxglove_msgs import CompressedVideo

# Receive a message
msg = subscriber.recv()

use edgefirst_schemas::foxglove_msgs::CompressedVideo;

// Receive a message
let msg = subscriber.recv().unwrap();

let video: CompressedVideo = cdr::deserialize(&msg.payload().to_bytes())?;

Process and Log the Data

The CompressedVideo message contains H.264 encoded video data. You can convert

PythonRust

raw_data.write(msg.payload.to_bytes())
raw_data.seek(frame_position)
for packet in container.demux():
    if packet.size == 0:  # Skip empty packets
        continue
    frame_position += packet.size  # Update frame position
    for frame in packet.decode():  # Decode video frames
        frame_array = frame.to_ndarray(format='rgb24')  # Convert frame to numpy array
        rr.log('image', rr.Image(frame_array))

// Access video parameters
let width = video.width;
let height = video.height;
let data = video.data;  // H.264 encoded video data

Results

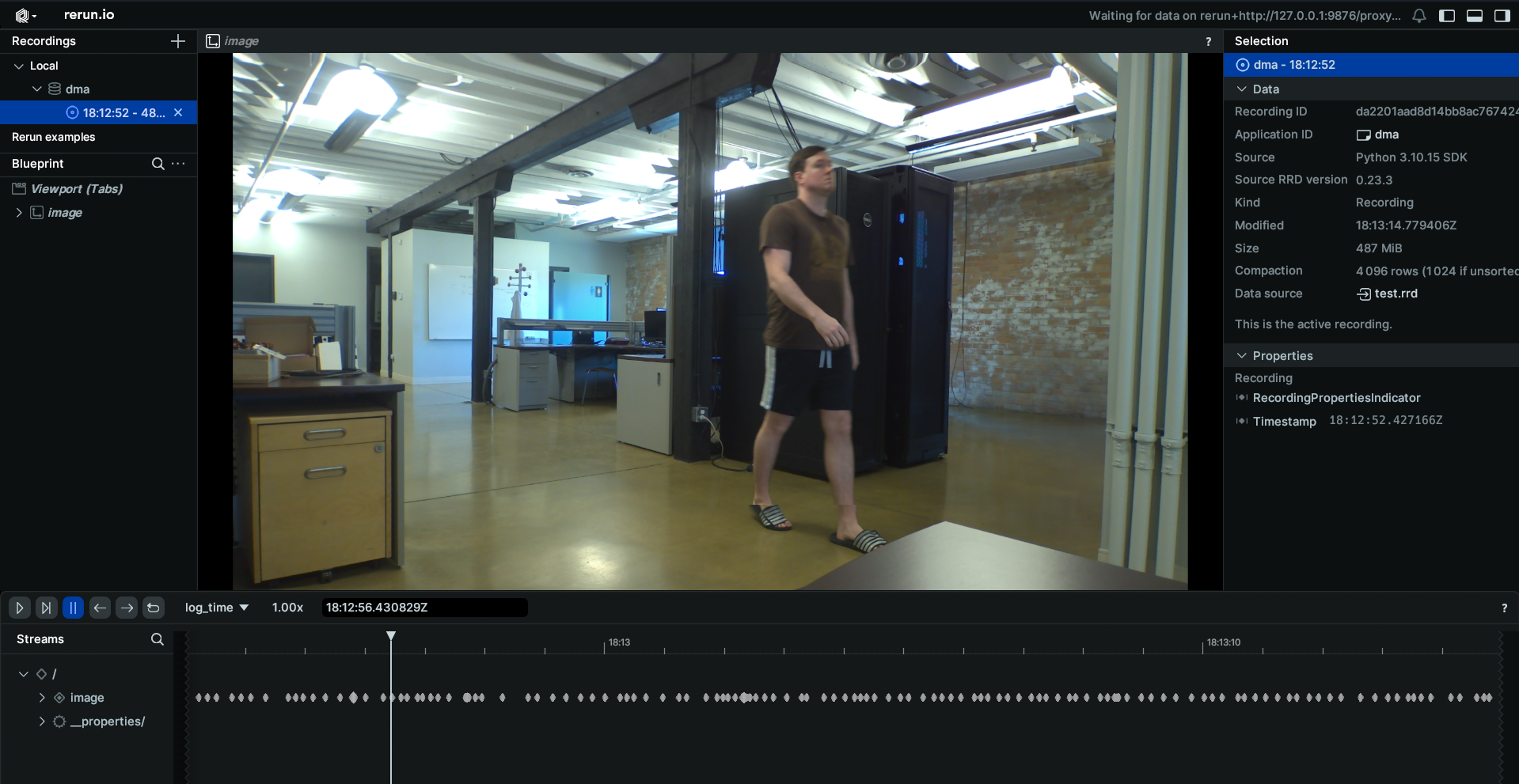

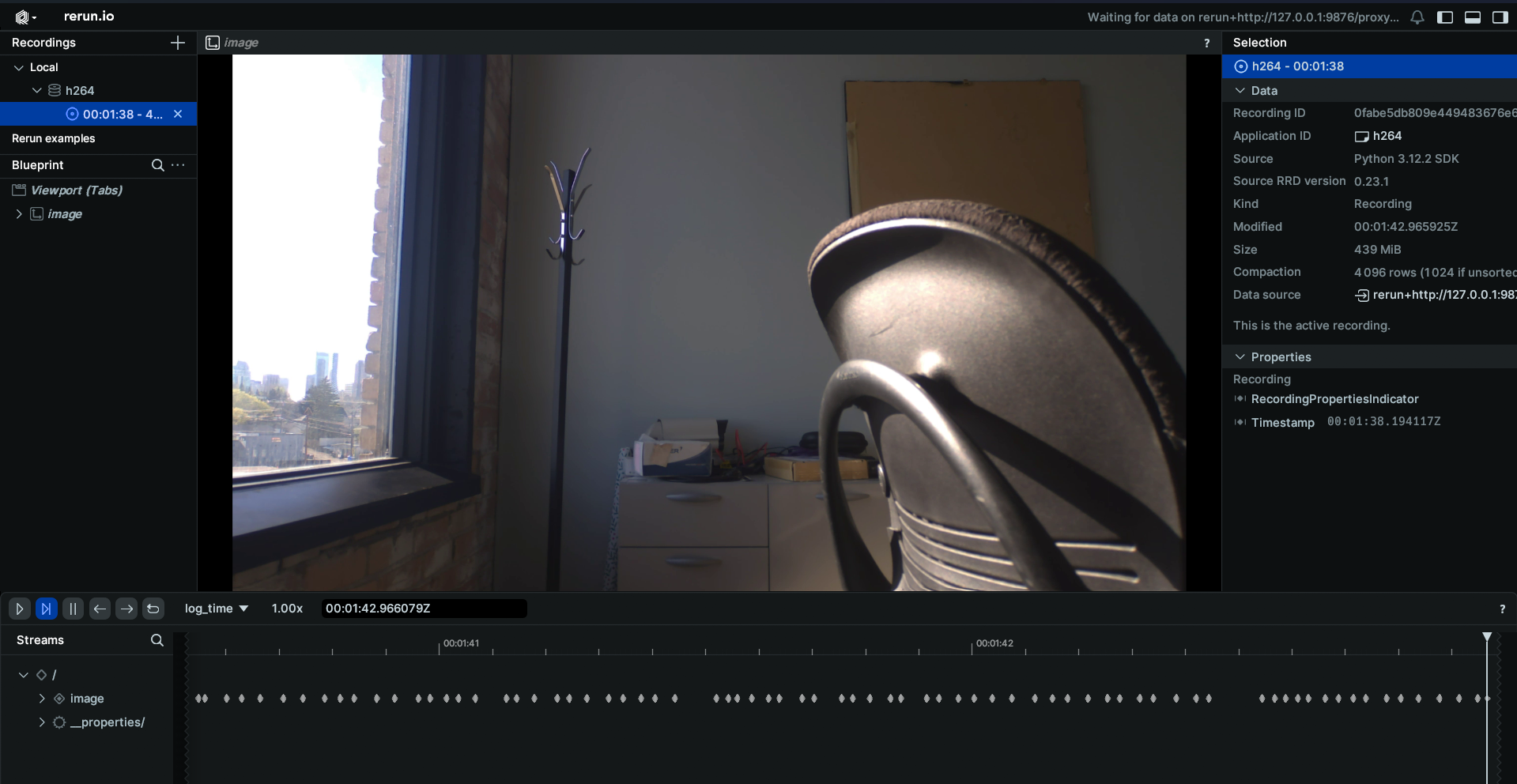

When displaying the results through Rerun you will see the live camera feed from your EdgeFirst Platform. alt text

JPEG Camera Feed

Topic: /camera/jpeg
Message: CompressedImage

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the camera/jpeg topic

PythonRust

# Create a subscriber for "rt/camera/jpeg"
subscriber = session.declare_subscriber('rt/camera/jpeg')

// Create a subscriber for "rt/camera/jpeg"
let subscriber = session
    .declare_subscriber("rt/camera/jpeg")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.sensor_msgs import CompressedImage

# Receive a message
msg = subscriber.recv()

# deserialize message
image = CompressedImage.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::sensor_msgs::CompressedImage;

// Receive a message
let msg = subscriber.recv().unwrap();

let image: CompressedImage = cdr::deserialize(&msg.payload().to_bytes())?;

Process and Log the Data

The CompressedImage message contains JPEG encoded image data. You can process the data with the following

PythonRust

np_arr = np.frombuffer(bytearray(image.data), np.uint8)
im = cv2.imdecode(np_arr, cv2.IMREAD_COLOR)
im = cv2.cvtColor(im, cv2.COLOR_BGR2RGB)
rr.log('image', rr.Image(im))

// Access image parameters
let width = image.width;
let height = image.height;
let format = image.format;  // Should be "jpeg"
let data = image.data;  // JPEG encoded image data

Results

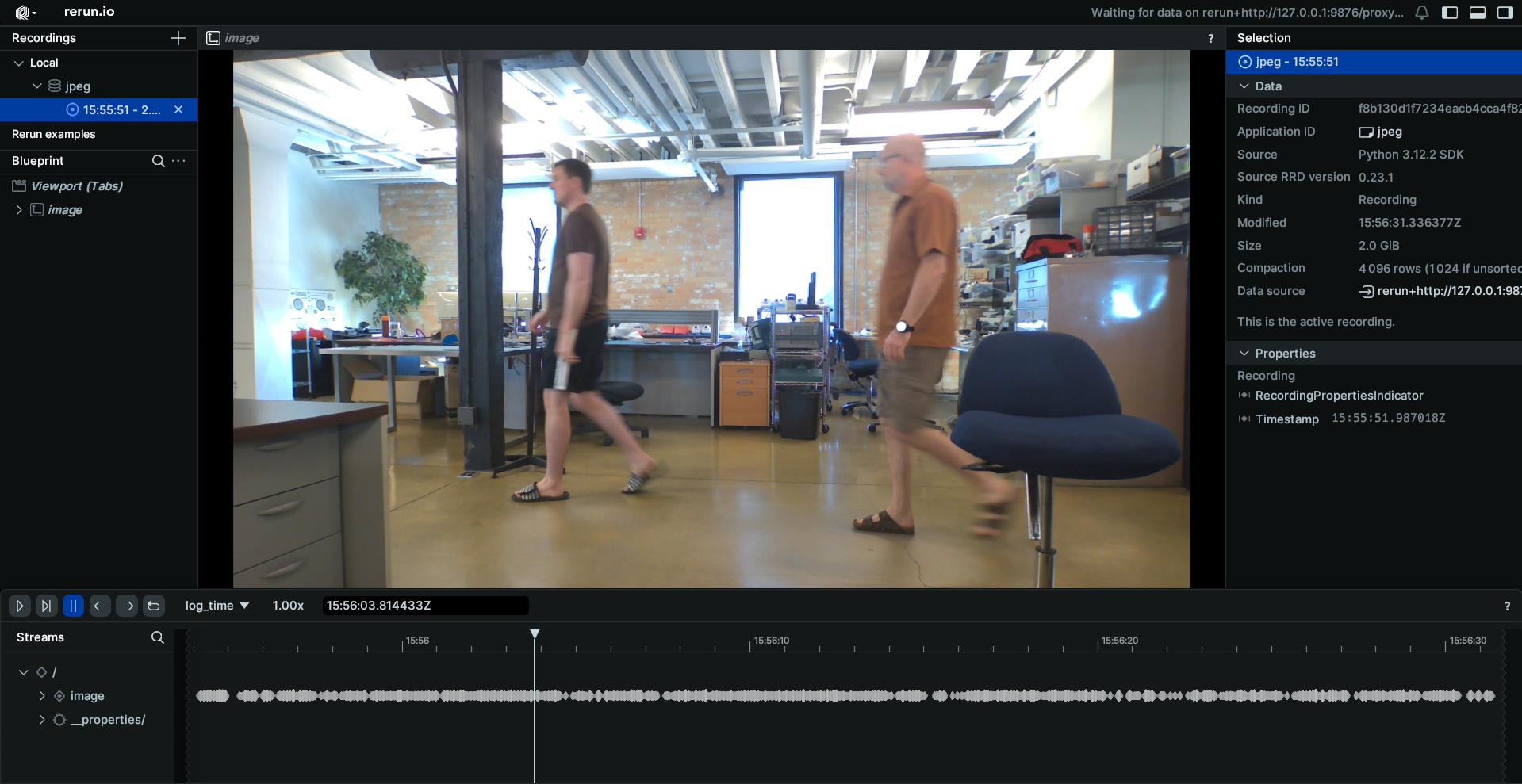

When displaying the results through Rerun you will see the JPEG image feed. alt text
