Raivin Setup Guide

This article will walk you through the Raivin hardware setup and then lead you to resources for using additional features.

Unboxing

The Raivin box contains the following items:

  • The Raivin vision module
  • A five-meter power cable, M12 circular connector (male) to 2.1mm x5.5mm barrel adapter (female)
  • Box with power adapters
  • Power-adapter with interchangeable plugs. 2.1mm x 5.5mm barrel adapter (male) connector.
  • Interchangeable plugs for the following regions:
    • NEMA 1-15P (Type A) (North America)
    • CEE-7/16 Alternative II "Europlug" (Type C) (Europe)
    • AS/NZS 3112, ungrounded (Type I) (Australia / Oceania)
    • BS 1363 (Type B) (British) wall adapter
  • Desktop tripod

Connecting the Device

If you wish to mount your device to the tripod, it should be done now before connecting any of the other cables. There are three mount points on the bottom of the device and one on each side. Screw the tripod into the center bottom mount point.

Next, connect a standard Category 5 network cable (not included) from your shared network into the device.

Optionally, you can connect an antenna to the SMA connector on the top-right corner of the back of the device to enhance GPS reception.

Chose the proper power adapter plug from your region and connect it to the power cable. Then connect the M12 connector of the power cable to the connection at the back of the module, making sure to align the tab at the top of the connector to its corresponding slot.

M12 Connector
M12 Connector

The device should boot up as soon as it is connected. A blue light above and to the right of the power connector should start blinking.

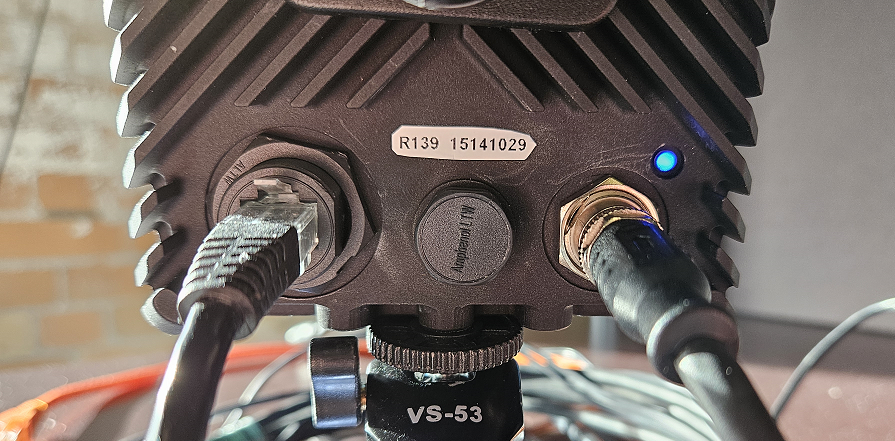

Back Picture
Back Picture

Danger

The Raivin may get hot during operation. Do not handle while operating. Temperature can be measured with the cat /dev/carrier_temp command, which will output device temperature in millidegree Celsius.

On Boot Up

On the back of the device, you will find an eight-digit number. This is the ID number. The hostname of the device will be "verdin-imx8mp-ID.local", which is advertised over Multicast Domain Name System (mDNS). For the steps below, the eight-digit number is "15141029". The device will have a hostname of verdin-imx8mp-15141029.local. This hostname can be used to connect to the device over SSH and HTTP.

Tip

On Windows machines, you will not need to add the '.local' suffix.

The device has a web interface that can be connected to via both HTTP and HTTPS by entering http://verdin-imx8mp-<id>.local. On first connection to the web interface, you will get a "Your connection is not private" warning.

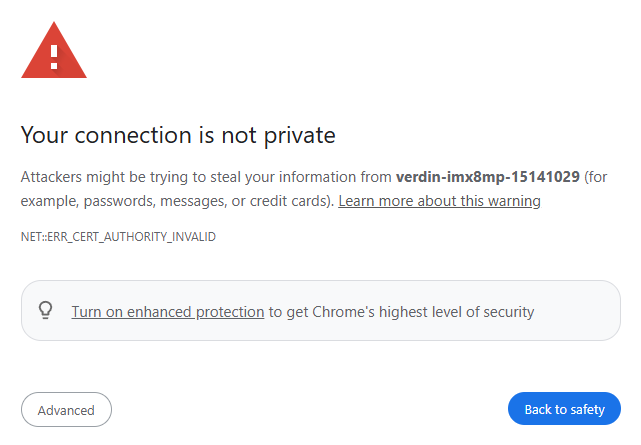

Main Page Warning
Main Page Warning

This is expected and nothing to worry about -- the HTTPS connection needs a SSL certificate which the vision module does not have. Click the "Advanced" button, and then "Proceed to" link.

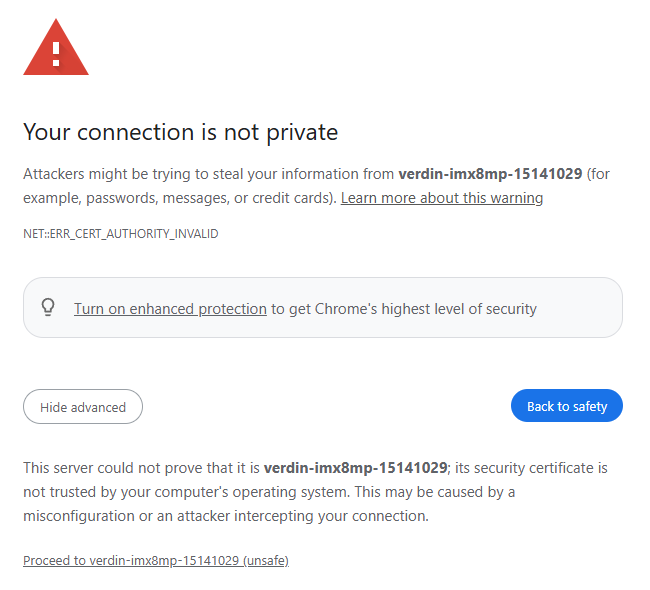

Advanced Information
Advanced Information

After all that, you should see the Raivin Main Page.

Raivin Main Page
Raivin Main Page

From here, we recommend that you check out the Segmentation View page by clicking the "Segmentation View" card.

Raivin Segmentation Page
Raivin Segmentation Page

Note

The ultra-short model included in this release was trained for fixed camera and mostly tested indoors.

CPU Performance Scaling

There are various CPU performance modes available on the platform which can be set by accessing the terminal on the device.

$ cat /sys/devices/system/cpu/cpufreq/policy0/scaling_available_governors
conservative ondemand userspace powersave performance schedutil
Mode Behavior Tradeoff
performance Locks CPU at maximum frequency 🔥 highest power, lowest latency
powersave Locks CPU at minimum frequency 🐢 lowest power, slowest
schedutil Scheduler-driven dynamic scaling (modern default) ⚖️ balanced, efficient
ondemand Quickly ramps up on load, drops when idle ⚡ responsive but older approach
conservative Slowly increases/decreases frequency 🌿 smoother, but slower response
userspace Manual control from user-space programs 🛠️ full control, more work

To see the current performance mode, run this command.

$ cat /sys/devices/system/cpu/cpufreq/policy0/scaling_governor
performance

To see the clock frequency limits, run these commands.

$ cat /sys/devices/system/cpu/cpufreq/policy0/scaling_cur_freq # Current CPU frequency
1600000
$ cat /sys/devices/system/cpu/cpufreq/policy0/scaling_max_freq # Max CPU frequency
1600000
$ cat /sys/devices/system/cpu/cpufreq/policy0/scaling_min_freq # Min CPU frequency
1200000

If you want maximum performance from the device, you can set the device to performance mode which runs the CPU cluster at the highest available frequency.

$ echo performance | sudo tee /sys/devices/system/cpu/cpufreq/policy0/scaling_governor
performance

You can find more information on CPU Performance Scaling here.

Next Steps

Now that you have completed these initial steps, we recommend that you read the following walkthroughs:
