4K Camera System

Overview

The EdgeFirst Perception Middleware ecosystem provides advanced 4K video processing capabilities through a sophisticated tiling architecture. This document explains how the 4K functionality works, including video capture, processing, encoding, and streaming; it also provides a comprehensive overview of the 4K camera system's architecture and implementation. The tiling approach enables efficient processing and streaming of high-resolution video while maintaining performance and flexibility.

Torizon for Maivin 2026.08

On the Maivin and Raivin the 4K pipeline requires the 4k camera mode which switches the OS08A20 sensor to its full resolution readout at 30 FPS. The 1080p60 capture path is the verified path for the 2026.08.0 release, the 4K tile frame mapping and Foxglove stitching have known issues deferred to a patch release.

This system impacts two specific services:

  1. The Camera Service
  2. The Web UI Service

There are also two add-ons to this system:

  1. The Maivin Publisher
  2. The 4K FoxGlove Layout

Architecture

The architecture of the 4K camera processing can be broken down into four broad sections:

  1. Camera Capture: Captures 4K video (3840x2160) from the camera device
  2. Tile Processing: Divides 4K video into 4 separate 1080p tiles
  3. Parallel Encoding: Each tile is encoded independently using H.264
  4. Streaming: Tiles are published as separate video streams via Zenoh

The system implements a 2x2 tiling approach where a 4K source (3840x2160) is divided into four 1080p tiles:

  • Top Left (1920x1080)
  • Top Right (1920x1080)
  • Bottom Left (1920x1080)
  • Bottom Right (1920x1080)

The Frame Rate is managed with the follow design principles.

  • Target Camera FPS: 30 FPS
  • Tile FPS: Configurable (default: 15 FPS, 0 for no limit)
  • Frame Pacing: Phase locked to the requested tile rate so the measured rate matches the configured rate
  • Frame Dropping: Frames arriving while an encoder channel is full are dropped and counted, the drop counters are summarized in the service log every 10 seconds

Camera Capture

  • Captures 4K video frames from camera device
  • Supports the ISP NV12 output format
  • Configurable mirror settings (none, horizontal, vertical, both)
  • Target FPS: 30 FPS

Tile Processing

When h264_tiles is enabled:

  • Creates 4 separate encoding threads
  • Each thread processes one tile position
  • Uses bounded channels (capacity: 3) for frame distribution
  • Drops and counts frames when channels are full to prevent blocking

Video Encoding

  • Direct Encoding: Uses encode_direct() for efficient processing
  • Crop Region: Automatically crops the source image to tile dimensions
  • H.264 Encoding: Hardware-accelerated encoding using VSL encoder
  • Bitrate Control: Configurable bitrate settings (5-100 Mbps)

Streaming Architecture

The four topics are then streamed using Zenoh with each tile has its own Zenoh publisher

Topic Structure

  • camera/h264/tl
  • camera/h264/tr
  • camera/h264/bl
  • camera/h264/br

The topics are relative to the device hostname namespace and configurable with the H264_TILES_TOPICS setting.

The system is designed for seamless integration with ROS and Foxglove Studio:

  • Foxglove Studio: Can subscribe to individual tile topics
  • Multi-View Layout: Display all 4 tiles simultaneously
  • Synchronized Playback: All tiles share the same timestamp
  • Independent Control: Each tile can be controlled separately

Implementation Details

The following below are snippets of the Rust code to provide context and clarity for the 4K camera implementation.

Tile Position Enum

Each tile position defines:

  • Crop Parameters: Source coordinates and dimensions for cropping
  • Output Dimensions: Fixed at 1920x1080 for each tile
enum TilePosition {
    TopLeft,
    TopRight,
    BottomLeft,
    BottomRight,
}

Crop Calculation

The get_crop_params() method calculates the source region for each tile:

fn get_crop_params(&self, source_width: u32, source_height: u32) -> (u32, u32, u32, u32) {
    let source_tile_width = source_width / 2;
    let source_tile_height = source_height / 2;

    match self {
        TilePosition::TopLeft => (0, 0, source_tile_width, source_tile_height),
        TilePosition::TopRight => (source_tile_width, 0, source_tile_width, source_tile_height),
        TilePosition::BottomLeft => (0, source_tile_height, source_tile_width, source_tile_height),
        TilePosition::BottomRight => (source_tile_width, source_tile_height, source_tile_width, source_tile_height),
    }
}

VideoManager with Crop Support

Each video stream is individually managed based on size, crop rectangle, bitrate, and target FPS.

VideoManager::new_with_crop(
    FourCC(*b"H264"),
    output_width: i32,      // 1920
    output_height: i32,     // 1080
    crop_rect: (x, y, w, h), // Tile-specific crop region
    bitrate: H264Bitrate,
    target_fps: Option<i32>
)

Channel Management

Each frame in every tile stream is sent with the image and timestamp attached.

fn try_send(tx: &Sender<(Image, Timestamp)>, img: Image, ts: Timestamp, _name: &str) {
    match tx.try_send((img, ts)) {
        Ok(_) => {},
        Err(_) => {
            // Count the dropped frame, the counters are reported
            // in a rate-limited log line every 10 seconds
        }
    }
}

Zenoh Message Format

Each tile stream publishes FoxgloveCompressedVideo messages:

FoxgloveCompressedVideo {
    header: Header {
        stamp: Time { sec, nanosec },
        frame_id: "camera_optical_topleft", // Tile-specific frame ID
    },
    format: "h264",
    data: Vec<u8>, // H.264 encoded video data
}

Performance Optimizations

Parallel Processing

  • 4 Independent Threads: Each tile processed in separate thread
  • Thread Names: h264_tile_topleft, h264_tile_topright, etc.
  • Tokio Runtime: Each thread runs its own async runtime

Memory Management

  • DMA Buffer Sharing: Efficient zero-copy operations
  • Bounded Channels: Prevents memory buildup during slow encoding
  • Frame Dropping: Graceful handling of encoding bottlenecks

Hardware Acceleration

  • G2D Integration: Hardware-accelerated image processing
  • VSL Encoder: Hardware H.264 encoding
  • Direct Encoding: Bypasses unnecessary conversions

Dynamic Crop Updates

  • Source Size Detection: Monitors camera resolution changes
  • Crop Region Updates: Automatically adjusts crop parameters
  • Runtime Adaptation: Handles resolution changes without restart

Error Handling

Encoding Errors

  • VideoManager Creation: Fails gracefully with detailed error messages
  • Encoding Failures: Logged per tile with position information
  • Publishing Errors: Individual tile failures don't affect others

Monitoring and Debugging

Monitoring is handled via Tracy. Current release has been tested against Tracy Profiler 0.12.2 for Windows and will not work on 0.11.1 and earlier. Please read the documentation on how to run Tracy for full details. For a quickstart, once you download the download the windows-0.12.2.zip file from the repository and unzip it, you can run the profiler with tracy-profiler.exe command. This will open the following window:

Tracy Profiler
Tracy Profiler

This should discover any services running Tracy monitoring clients.

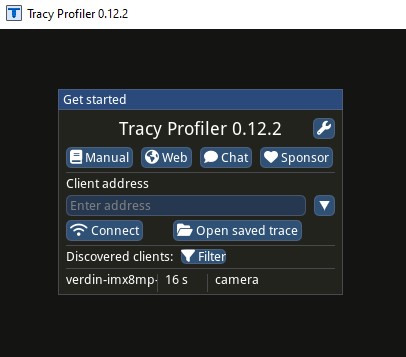

Tracy Profiler Discovered Camera Service
Tracy Profiler Discovered Camera Service

Clicking on the newly discovered client should take you to the monitoring screen.

Tracy Profiling

  • Frame Marks: Visual frame boundaries in Tracy
  • Bitrate Plotting: Real-time bitrate monitoring
  • Performance Metrics: Encoding time and throughput

Logging

  • Structured Logging: Tile-specific log spans
  • Error Tracking: Detailed error messages with context
  • Performance Warnings: FPS monitoring and alerts
