Model Schema Examples
These examples demonstrate how to connect to various model topics published on your EdgeFirst Platform and how to display the information through the command line.
Model Info
Topic: /model/info
Message: ModelInfo
Sample Code: Python / Rust
Setting up subscriber
After setting up the Zenoh session, we will create a subscriber to the model/info topic
# Create a subscriber for "rt/model/info"
loop = asyncio.get_running_loop()
drain = MessageDrain(loop)
session.declare_subscriber('rt/model/info', drain.callback)
// Create a subscriber for "rt/model/info"
let subscriber = session
.declare_subscriber("rt/model/info")
.await
.unwrap();
Receive a message
We can now await a message from that subscriber. After receiving the message, we will pass that message along to our processing function in a new thread to avoid missing messages.
async def info_handler(drain):
while True:
msg = await drain.get_latest()
thread = threading.Thread(target=info_worker, args=[msg])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
use edgefirst_schemas::edgefirst_msgs::ModelInfo;
// Receive a message
let msg = subscriber.recv().unwrap();
let info: ModelInfo = cdr::deserialize(&msg.payload().to_bytes())?;
Process the Data
The ModelInfo message contains information about the model configuration. You can access various fields like:
def info_worker(msg):
info = ModelInfo.deserialize(msg.payload.to_bytes())
m_type = info.model_type
m_name = info.model_name
rr.log("ModelInfo", rr.TextLog("Model Name: %s Model Type: %s" % (m_name, m_type)))
let m_type = info.model_type;
let m_name = info.model_name;
let text = "Model Name: ".to_owned() + &m_name + " Model Type: " + &m_type;
let _ = rr.log("ModelInfo", &rerun::TextLog::new(text));
Results

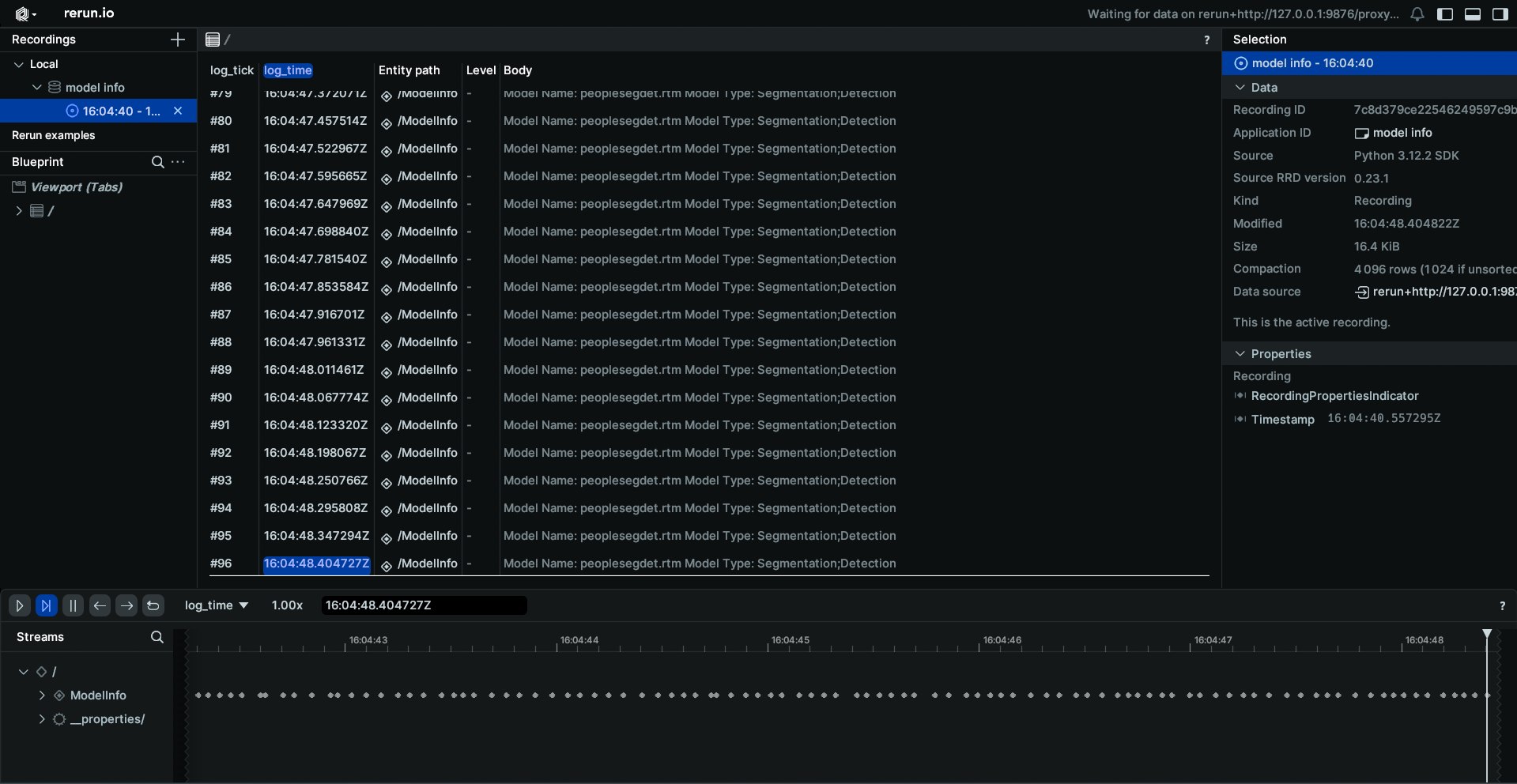

When displaying the results through Rerun you will see the model info.
Boxes2D
Topic: /model/boxes2d
Message: ModelInfo
Sample Code: Python / Rust
Setting up subscriber
After setting up the Zenoh session, we will create a subscriber to the model/boxes2d topic
# Create a subscriber for "rt/model/boxes2d"
loop = asyncio.get_running_loop()
drain = MessageDrain(loop)
session.declare_subscriber('rt/model/boxes2d', drain.callback)
// Create a subscriber for "rt/model/boxes2d"
let subscriber = session
.declare_subscriber("rt/model/boxes2d")
.await
.unwrap();
Receive a message
We can now await a message from that subscriber. After receiving the message, we will pass that message along to our processing function in a new thread to avoid missing messages.
async def boxes2d_handler(drain):
while True:
msg = await drain.get_latest()
thread = threading.Thread(target=boxes2d_worker, args=[msg])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
use edgefirst_schemas::edgefirst_msgs::Detect;
// Receive a message
let msg = subscriber.recv().unwrap();
let detection: Detect = cdr::deserialize(&msg.payload().to_bytes())?;
Process the Data
The Boxes2D message contains 2D bounding box detections. The message will be sent to be processed, deserializing the message, accessing the required information and logging the boxes to Rerun.
from edgefirst.schemas.edgefirst_msgs import Detect
def boxes2d_worker(msg):
detection = Detect.deserialize(msg.payload.to_bytes())
centers = []
sizes = []
labels = []
for box in detection.boxes:
centers.append((box.center_x, box.center_y))
sizes.append((box.width, box.height))
labels.append(box.label)
rr.log("boxes", rr.Boxes2D(centers=centers, sizes=sizes, labels=labels))
let mut centers = Vec::new();
let mut sizes = Vec::new();
let mut labels = Vec::new();
for b in detection.boxes {
centers.push([b.center_x, b.center_y]);
sizes.push([b.width, b.height]);
labels.push(b.label);
}
let _ = rr.log("boxes", &rerun::Boxes2D::from_centers_and_sizes(centers, sizes).with_labels(labels))?;
Results

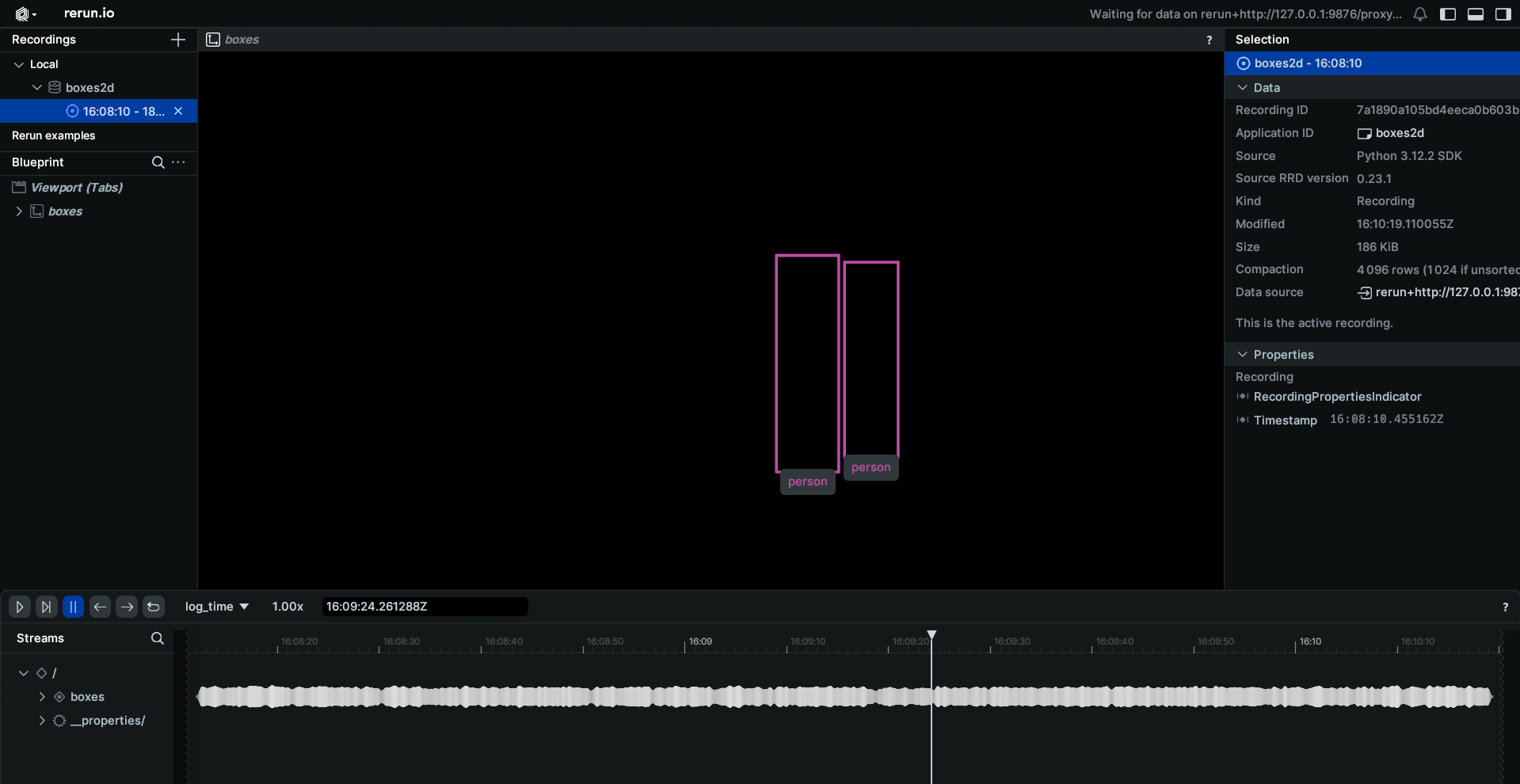

When displaying the results through Rerun you will see the boxes without any camera, to see the combined example please see theCombined Example.
Box Tracking

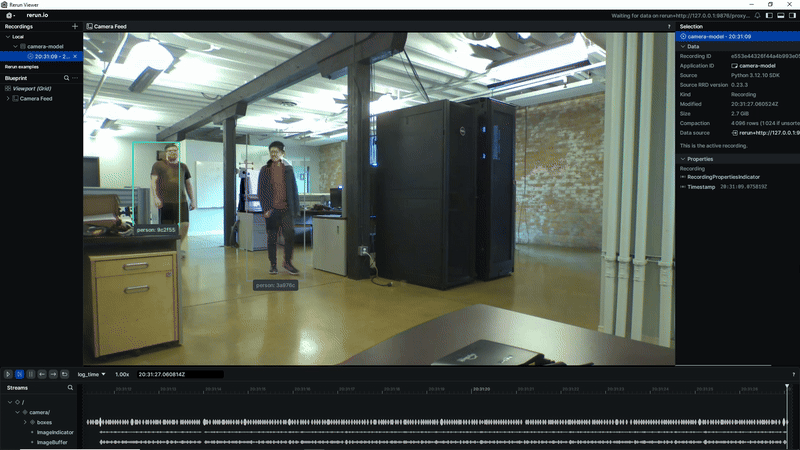

On your EdgeFirst Platform you can also allow tracking of the boxes and this can then be logged during the publishing of the boxes. The documentation for the settings to turn on tracking can be found here. You can update your code to match the Python example or Rust example from the regular boxes2d example by changing the boxes2d_worker to the following.
def boxes2d_worker(msg, boxes_tracked):
detection = Detect.deserialize(msg.payload.to_bytes())
centers = []
sizes = []
labels = []
colors = []
for box in detection.boxes:
if box.track.id and box.track.id not in boxes_tracked:
boxes_tracked[box.track.id] = [box.label + ": " + box.track.id[:6], list(np.random.choice(range(256), size=3))]
if box.track.id:
colors.append(boxes_tracked[box.track.id][1])
labels.append(boxes_tracked[box.track.id][0])
else:
colors.append([0,255,0])
labels.append(box.label)
centers.append((box.center_x, box.center_y))
sizes.append((box.width, box.height))
rr.log("boxes", rr.Boxes2D(centers=centers, sizes=sizes, labels=labels, colors=colors))
let detection: Detect = cdr::deserialize(&msg.payload().to_bytes())?;
let mut centers = Vec::new();
let mut sizes = Vec::new();
let mut labels = Vec::new();
let mut colors = Vec::new();
for b in detection.boxes {
if !b.track.id.is_empty() {
// Insert into map if not already present
let entry = boxes_tracked.entry(b.track.id.clone()).or_insert_with(|| {
let mut rng_maker = rng();
let random_color = [
rng_maker.random_range(0..=255),
rng_maker.random_range(0..=255),
rng_maker.random_range(0..=255),
];
let short_id = &b.track.id[..6.min(b.track.id.len())];
let label = format!("{}: {}", b.label, short_id);
(label, random_color)
});
labels.push(entry.0.clone());
colors.push(entry.1);
} else {
labels.push(b.label.clone());
colors.push([0, 255, 0]);
}
centers.push([b.center_x, b.center_y]);
sizes.push([b.width, b.height]);
}
let boxes = Boxes2D::from_centers_and_sizes(centers, sizes)
.with_labels(labels)
.with_colors(colors);
rr.log("boxes", &boxes)?;
The main adjustments are that a color will be specified and each tracked box will have its own color as well as that we will add in the unique ID for the box into the label. All of this is contingent on tracking being enabled. The following image is taken when applied to a combined example.
Model Mask
Topic: /model/mask
Message: Mask
Sample Code: Python / Rust
Setting up subscriber
After setting up the Zenoh session, we will create a subscriber to the model/mask topic
# Create a subscriber for "rt/model/mask"
loop = asyncio.get_running_loop()
drain = MessageDrain(loop)
session.declare_subscriber('rt/model/mask', drain.callback)
// Create a subscriber for "rt/model/mask"
let subscriber = session
.declare_subscriber("rt/model/mask")
.await
.unwrap();
Receive a message
We can now await a message from that subscriber. After receiving the message, we will pass that message along to our processing function in a new thread to avoid missing messages. In addition we will log the annotations so Rerun knows what colors to use for each class.
async def mask_handler(drain):
rr.log("/", rr.AnnotationContext([(0, "background", (0,0,0)), (1, "person", (0,255,0))]))
while True:
msg = await drain.get_latest()
thread = threading.Thread(target=mask_worker, args=[msg])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
use edgefirst_schemas::edgefirst_msgs::Mask;
// Log annotation context
rr.log(
"/",
&AnnotationContext::new([
(0, "background", rerun::Rgba32::from_rgb(0, 0, 0)),
(1, "person", rerun::Rgba32::from_rgb(0, 255, 0))])
)?;
// Receive a message
let msg = subscriber.recv().unwrap();
let mask: Mask = cdr::deserialize(&msg.payload().to_bytes())?;
Process the Data
The Mask message contains segmentation mask data. The worker will perform argmax on the result to get the resultant class for each pixel to be logged.
def mask_worker(msg):
mask = Mask.deserialize(msg.payload.to_bytes())
np_arr = np.asarray(mask.mask, dtype=np.uint8)
np_arr = np.reshape(np_arr, [mask.height, mask.width, -1])
np_arr = np.argmax(np_arr, axis=2)
rr.log("mask", rr.SegmentationImage(np_arr))
let h = mask.height as usize;
let w = mask.width as usize;
let total_len = mask.mask.len() as u32;
let c = (total_len / (h as u32 * w as u32)) as usize;
let arr3 = Array::from_shape_vec((h, w, c), mask.mask.clone())?;
// Compute argmax along the last axis (class channel)
let array2: Array2<u8> = arr3
.map_axis(ndarray::Axis(2), |class_scores| {
class_scores
.iter()
.enumerate()
.max_by_key(|(_, val)| *val)
.map(|(idx, _)| idx as u8)
.unwrap_or(0)
});
// Log segmentation mask
let _ = rr.log("mask", &SegmentationImage::try_from(array2)?)?;
Results

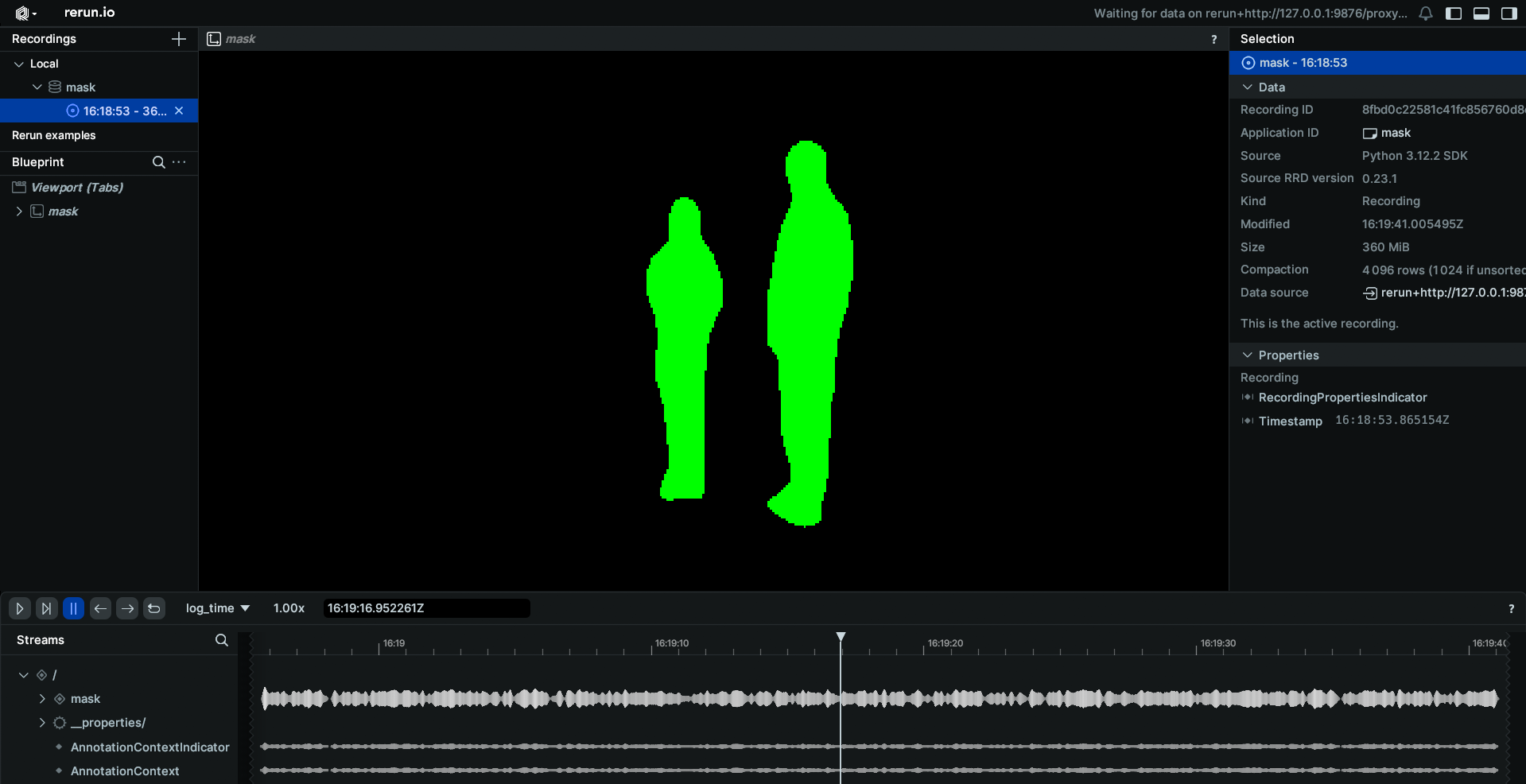

When displaying the results through Rerun you will see the segmentation without any camera, to see the combined example please see theCombined Example.
Model Mask Compressed
Topic: /model/mask
Message: Mask
Sample Code: Python / Rust
Setting up subscriber
After setting up the Zenoh session, we will create a subscriber to the model/mask_compressed topic
# Create a subscriber for "rt/model/mask_compressed"
loop = asyncio.get_running_loop()
drain = MessageDrain(loop)
session.declare_subscriber('rt/model/mask_compressed', drain.callback)
// Create a subscriber for "rt/model/compressed_mask"
let subscriber = session.declare_subscriber("rt/model/mask_compressed")
.await
.unwrap();
Receive a message
We can now await a message from that subscriber from an asynchronous function. After receiving the message, we will pass that message along to our processing function in a new thread to avoid missing messages. In addition we will log the annotations so Rerun knows what colours to use for each class.
async def mask_handler(drain):
rr.log("/", rr.AnnotationContext([(0, "background", (0,0,0)), (1, "person", (0,255,0))]))
while True:
msg = await drain.get_latest()
thread = threading.Thread(target=mask_worker, args=[msg])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
use edgefirst_schemas::edgefirst_msgs::Mask;
// Receive a message
let msg = subscriber.recv().unwrap();
let mask: Mask = cdr::deserialize(&msg.payload().to_bytes())?;
Process the Data
The Mask message contains segmentation mask data. The worker will decompress the data and then perform argmax on the result to get the resultant class for each pixel to be logged.
def mask_worker(msg):
mask = Mask.deserialize(msg.payload.to_bytes())
decoded_array = zstd.decompress(bytes(mask.mask))
np_arr = np.frombuffer(decoded_array, np.uint8)
np_arr = np.reshape(np_arr, [mask.height, mask.width, -1])
np_arr = np.argmax(np_arr, axis=2)
rr.log("mask", rr.SegmentationImage(np_arr))
let decompressed_bytes = decode_all(Cursor::new(&mask.mask))?;
let h = mask.height as usize;
let w = mask.width as usize;
let total_len = mask.mask.len() as u32;
let c = (total_len / (h as u32 * w as u32)) as usize;
let arr3 = Array::from_shape_vec([h, w, c], decompressed_bytes.clone())?;
// Compute argmax along the last axis (class channel)
let array2: Array2<u8> = arr3
.map_axis(ndarray::Axis(2), |class_scores| {
class_scores
.iter()
.enumerate()
.max_by_key(|(_, val)| *val)
.map(|(idx, _)| idx as u8)
.unwrap_or(0)
});
// Log annotation context
rr.log(
"/",
&AnnotationContext::new([
(0, "background", rerun::Rgba32::from_rgb(0, 0, 0)),
(1, "person", rerun::Rgba32::from_rgb(0, 255, 0))])
)?;
// Log segmentation mask
let _ = rr.log("mask", &SegmentationImage::try_from(array2)?)?;
Results
When displaying the results through Rerun you will see the segmentation without any camera, to see the combined example please see theCombined Example.
Combined Example

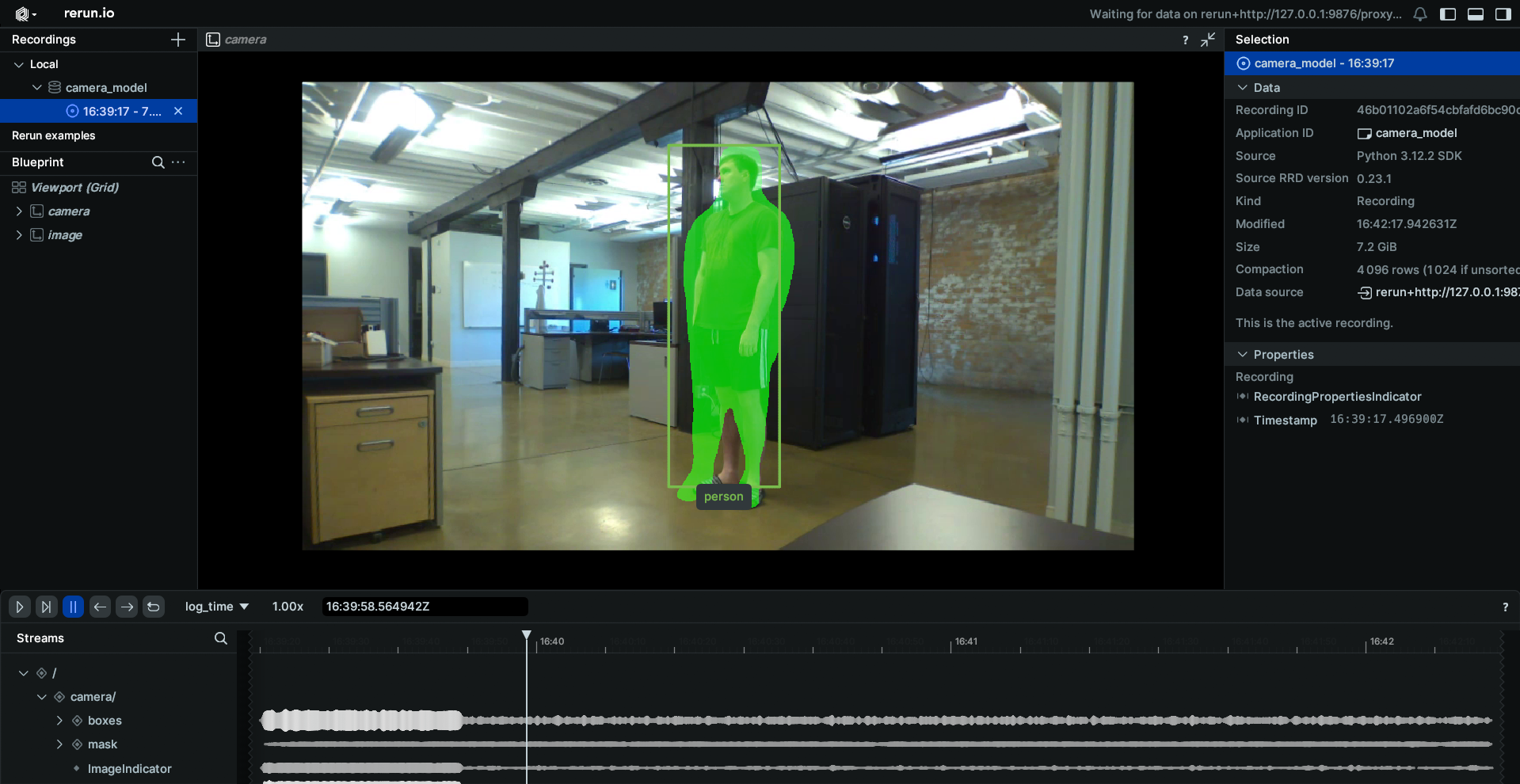

This example will demonstrate how to combine the camera feed with the model messages to create a composite Rerun view. The main difference when using multiple messages in a script, is that we will change from waiting on the message to be received to having a callback function for when a message is received. Using the initial method, the script would hang while waiting for a message topic to be published, so if the messages are being published at different rates, the slowest message rate will limit the others.
Sample Code: Python
Setting up the subscribers
After setting up the Zenoh session, we will create a subscriber to the three topics, camera, boxes and segmentation. A FrameSize is additionally created to pass the stream size from the camera to the boxes and segmentation mask so they can be resized appropriately.
# Create the necessary subscribers
loop = asyncio.get_running_loop()
h264_drain = MessageDrain(loop)
boxes_drain = MessageDrain(loop)
mask_drain = MessageDrain(loop)
frame_size_storage = FrameSize()
session.declare_subscriber('rt/camera/h264', h264_drain.callback)
session.declare_subscriber('rt/model/boxes2d', boxes_drain.callback)
if args.remote:
session.declare_subscriber('rt/model/mask_compressed', mask_drain.callback)
else:
session.declare_subscriber('rt/model/mask', mask_drain.callback)
Subscriber Callbacks
We will now go through the handler functions that are in use for this example. These handler functions will independently handle each of the messages received through the MessageDrain. Additionally, we will make use of a FrameSize object to communicate the frame size of the camera to the boxes and segmentation mask so they can be resized appropriately.
await asyncio.gather(h264_handler(h264_drain, frame_size_storage),
boxes2d_handler(boxes_drain, frame_size_storage),
mask_handler(mask_drain, frame_size_storage, args.remote))
H264 Handler
The H264 handler will receive the CompressedVideo message from the MessageDrain and after initializing the required containers will pass that message to the worker, where the message will be processed and logged to Rerun.
async def h264_handler(drain, frame_storage):
raw_data = io.BytesIO()
container = av.open(raw_data, format='h264', mode='r')
while True:
msg = await drain.get_latest()
thread = threading.Thread(target=h264_worker, args=[msg, frame_storage, raw_data, container])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
def h264_worker(msg, frame_storage, raw_data, container):
raw_data.write(msg.payload.to_bytes())
raw_data.seek(0)
for packet in container.demux():
try:
if packet.size == 0:
continue
raw_data.seek(0)
raw_data.truncate(0)
for frame in packet.decode():
frame_array = frame.to_ndarray(format='rgb24')
frame_storage.set(frame_array.shape[1], frame_array.shape[0])
rr.log('/camera', rr.Image(frame_array))
except Exception:
continue
Boxes2D Handler
The Boxes2D callback will wait for a Detect message from the MessageDrain and will pass that message to the worker, where the message will be processed and logged to Rerun. The boxes logged will use tracking when available. Additionally, this handler will wait until the camera has started and logged a frame size so it knows what the height and width will be to resize the boxes.
async def boxes2d_handler(drain, frame_storage):
boxes_tracked = {}
_ = await frame_storage.get()
while True:
msg = await drain.get_latest()
frame_size = await frame_storage.get()
thread = threading.Thread(target=boxes2d_worker, args=[msg, boxes_tracked, frame_size])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
def boxes2d_worker(msg, boxes_tracked, frame_size):
detection = Detect.deserialize(msg.payload.to_bytes())
centers, sizes, labels, colors = [], [], [], []
for box in detection.boxes:
if box.track.id and box.track.id not in boxes_tracked:
boxes_tracked[box.track.id] = [box.label + ": " + box.track.id[:6], list(np.random.choice(range(256), size=3))]
if box.track.id:
colors.append(boxes_tracked[box.track.id][1])
labels.append(boxes_tracked[box.track.id][0])
else:
colors.append([0,255,0])
labels.append(box.label)
centers.append((int(box.center_x * frame_size[0]), int(box.center_y * frame_size[1])))
sizes.append((int(box.width * frame_size[0]), int(box.height * frame_size[1])))
rr.log("/camera/boxes", rr.Boxes2D(centers=centers, sizes=sizes, labels=labels, colors=colors))
Mask Handler
The Mask callback will wait for a Mask message from the MessageDrain and will pass that message to the worker, where the message will be processed and logged to Rerun. The mask_handler requires the remote field to be passed so it knows whether to decompress the mask data or not. Additionally, this handler will wait until the camera has started and logged a frame size so it knows what the height and width will be to resize the mask.
async def mask_handler(drain, frame_storage, remote):
_ = await frame_storage.get()
rr.log("/", rr.AnnotationContext([(0, "background", (0, 0, 0, 0)), (1, "person", (0, 255, 0))]))
while True:
msg = await drain.get_latest()
frame_size = await frame_storage.get()
thread = threading.Thread(target=mask_worker, args=[msg, frame_size, remote])
thread.start()
while thread.is_alive():
await asyncio.sleep(0.001)
thread.join()
def mask_worker(msg, frame_size, remote):
mask = Mask.deserialize(msg.payload.to_bytes())
if remote:
decoded_array = zstd.decompress(bytes(mask.mask))
np_arr = np.frombuffer(decoded_array, np.uint8).reshape(mask.height, mask.width, -1)
else:
np_arr = np.asarray(mask.mask, dtype=np.uint8)
np_arr = np.reshape(np_arr, [mask.height, mask.width, -1])
np_arr = cv2.resize(np_arr, frame_size)
np_arr = np.argmax(np_arr, axis=2)
rr.log("/camera/mask", rr.SegmentationImage(np_arr))
Results
When displaying the results through Rerun you will see the combined image of the camera feed, segmentation image and boxes.
