Dataset Import

This page will provide tutorials for importing annotated datasets with various formats in EdgeFirst Studio.

Import Darknet Datasets

There are two methods for importing Darknet Datasets.

1. Pre-Split: The dataset directory already contains training and validation splits.
2. No Split: The dataset directory does not have a training and validation split. All samples are inside the image and labels directories.

Pre-Split

Consider a Darknet dataset with training and validation splits structured in the following way.

<coco128>/
├── images/
│   ├── <train>/
│   │   └── *.jpg/png/jpeg/..
│   └── <val>/
|   |   └── *.jpg/png/jpeg/...
├── labels/
│   ├── <train>/
│   │   └── *.txt
│   └── <val>/
│       └── *.txt

To import this dataset and to preserve the train and validation splits in EdgeFirst Studio, the dataset needs to be restructured in the following way with one directory containing standalone training samples and another directory with the validation samples.

1. Training Samples

   <coco128-train>/
   ├── images/
   │   └── *.jpg/png/jpeg/..
   ├── labels/
   │   └── *.txt


2. Validation Samples

   <coco128-val>/
   ├── images/
   │   └── *.jpg/png/jpeg/..
   ├── labels/
   │   └── *.txt


Note

The elements enclosed by <> can be any arbitrary name in your machine.

Let's first import the training samples. To import a dataset, first create a dataset container in EdgeFirst Studio. The following dataset is created with the name set to "COCO128" and the description as "Demo import". Furthermore, an annotation set has also been created called "annotations".

COCO128 Dataset Container

Once a container has been created, open the dataset context menu denoted by the three vertical dots on the top right corner of the dataset card.

Dataset Options

Select "Import".

Import Option

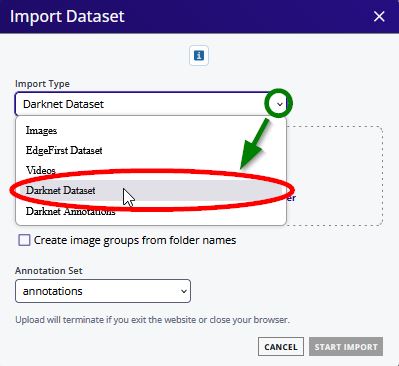

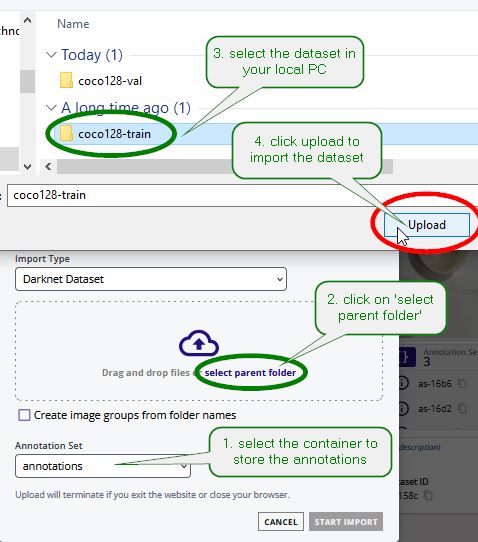

This will popup a new window for you to specify the dataset to be imported. In these options, select the "Import Type" to be "Darknet Dataset". Specify the dataset folder "coco128-train" to be imported. Specify the annotation set to the "annotations" annotation set. The following figure shows the specifications.

Import Options

Select "Start Import" at the bottom right to start the import process. This will start the import process as shown.

Import Process

Once completed, all the training samples have been imported to the dataset container.

Imported COCO128 Training Samples

Next specify all imported samples towards the training group.

Add Training Group

Once the slider has been set to 100% training, click "Split" to group all samples into the training group.

100% Training Samples

All of the samples should now be set towards the training group.

100% Training Samples

Next, import the validation samples by going back to the "Import" feature.

Import Option

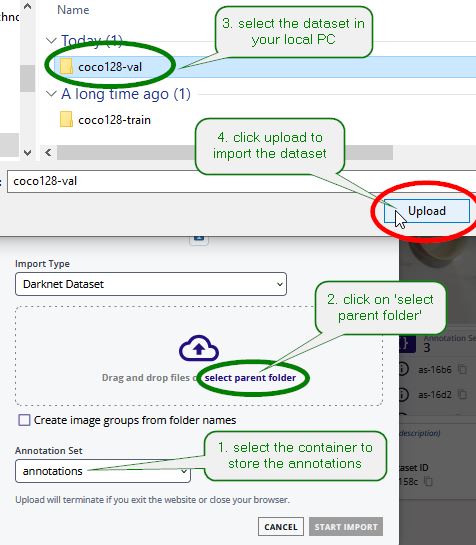

Specify the "Import Type" to "Darknet Dataset" again, but specify the dataset folder "coco128-val" to be imported. Specify the annotation set to the "annotations" annotation set. The following figure shows the specifications.

Import Options

Click "Start Import" and after it completed, the number of samples on the dataset should have increased.

Imported COCO128 Training Samples

These newly added samples for validation have not been grouped yet. Next assign groups to these samples. Click on the "+" button again to add a validation group.

Add Training Group

Set the slider to 100% Validation and check "Only ungrouped images" as this will transfer all recently imported ungrouped validation samples towards the validation group.

100% Validation Samples

Click the "Split" button to group the samples. This dataset container should now retain the training and validation split as provided from the dataset.

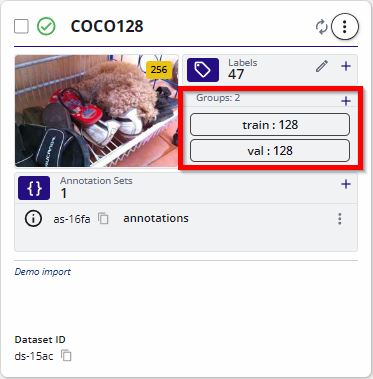

COCO128 with Groups

Verify in the gallery that the samples imported match the samples in the local machine.

Validation Samples in Studio

Validation Samples in the PC

No Split

This tutorial will show how to import a Darknet dataset such as COCO128 into EdgeFirst Studio which has no training and validation split. This dataset is only meant as a tutorial dataset for YOLOv5, but this tutorial is meant to show the functionality of importing existing public datasets into EdgeFirst Studio.

To import a dataset, first create a dataset container in EdgeFirst Studio. The following dataset is created with the name set to "COCO128" and the description as "Demo import". Furthermore, an annotation set has also been created called "annotations".

COCO128 Dataset Container

For an example dataset, COCO128 was downloaded using the link provided. This will download a ZIP archive which can then be extracted into a "coco128" directory which contains "images" and "labels" subdirectories.

COCO128

Once a container has been created, open the dataset context menu denoted by the three vertical dots on the top right corner of the dataset card.

Dataset Options

Select "Import".

Import Option

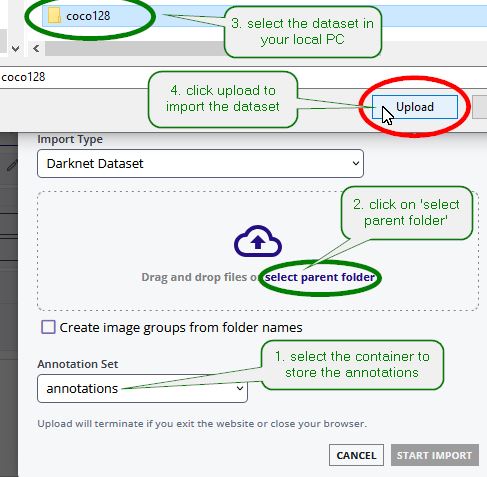

This will popup a new window for you to specify the dataset to be imported. In these options, select the "Import Type" to be "Darknet Dataset". Specify the dataset folder "coco128" to be imported. Specify the annotation set to the "annotations" annotation set. The following figure shows the specifications.

Import Options

Select "Start Import" at the bottom right to start the import process.

Start Import

This will start the import process as shown.

Import Process

Once completed, the dataset container will now contain 128 images from COCO and the annotations stored in the "annotations" container.

Imported COCO128 Dataset

Next split the dataset into training and validations samples.

See the dataset and its annotations by following the tutorial for viewing the dataset gallery.

Import EdgeFirst Datasets

This tutorial will show how to import an EdgeFirst Dataset into EdgeFirst Studio. This tutorial will show importing a dataset such as COCO2017 that is structured as an EdgeFirst Dataset as shown below.

COCO2017 EdgeFirst Dataset

To import a dataset, first create a dataset container in EdgeFirst Studio. The following dataset is created with the name set to "COCO2017" and the description as "Demo Import". Furthermore, an annotation set has also been created called "annotations".

COCO2017 Dataset Container

Once a container has been created, open the dataset context menu denoted by the three vertical dots on the top right corner of the dataset card.

Dataset Options

Select "Import".

Import Option

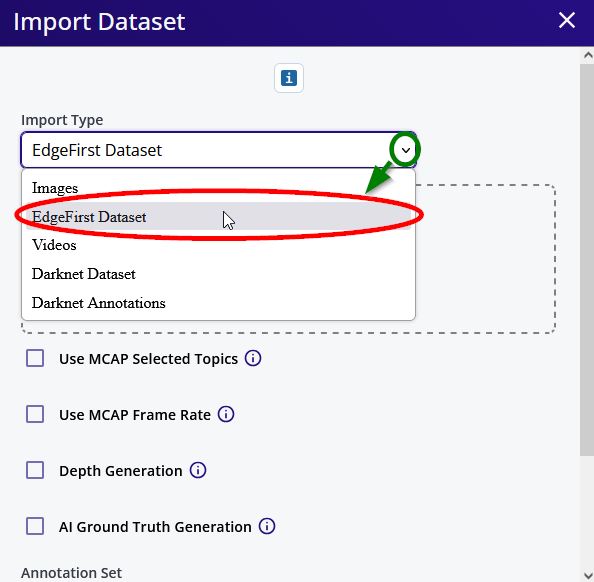

This will popup a new window for you to specify the dataset to be imported. In these options, select the "Import Type" to be "EdgeFirst Dataset". Specify the Zip and Arrow file in your machine to be imported. Specify the annotation set to the "annotations" annotation set to store the dataset annotations. The following figure shows the specifications.

Import Options

Select "Start Import" at the bottom right to start the import process.

Start Import

This will start the import process as shown.

Import Process

See the dataset and its annotations by following the tutorial for viewing the dataset gallery.

Next Steps

Now that you have seen how to import datasets in EdgeFirst Studio, see how the annotations are being managed in EdgeFirst Studio.
