Playing Cards Dataset
The Playing Cards dataset is an experimental object detection dataset developed at Au-Zone Technologies to evaluate embedded models in indoor scenarios.
Object Detection Benchmark (50 epochs)
COCO Metrics - RGB - (640x640) | ONNX
| Model | mAP@0.5 | mAP@0.5..0.95 |
|---|---|---|
| modelpack-csp19-small-640x640-rgb | 0.874 | 0.687 |
| modelpack-csp19-medium-640x640-rgb | 0.909 | 0.683 |
| modelpack-csp19-large-640x640-rgb | 0.926 | 0.731 |
| modelpack-csp53-nano-640x640-rgb | 0.876 | 0.706 |
| modelpack-csp53-small-640x640-rgb | 0.931 | 0.755 |
| ultralytics-yolov8n-640x640-rgb | 0.829 | 0.700 |
Timing Benchmark
Time information is not included in this validation because they can change depending on the hardware quality of the cloud servers in EdgeFirst Studio. The timing benchmarks are provided when the models are run on specific platforms such as the i.MX 8M Plus.
COCO Metrics - RGB - (640x640) | TFLite | INT8
| Model | mAP@0.5 | mAP@0.5..0.95 | Time (ms) |
|---|---|---|---|
| modelpack-csp19-small-640x640-rgb | 0.867 | 0.642 | 15.99 |
| modelpack-csp19-medium-640x640-rgb | 0.901 | 0.643 | 20.60 |
| modelpack-csp19-large-640x640-rgb | 0.909 | 0.658 | 24.46 |
| modelpack-csp53-nano-640x640-rgb | 0.862 | 0.642 | 44.08 |
| modelpack-csp53-small-640x640-rgb | 0.928 | 0.692 | 79.29 |
| ultralytics-yolov8n-640x640-rgb | 0.809 | 0.671 | 138.13 |
BSP Version
i.MX 8M Plus is flashed with NXP Yocto BSP 6.12.
Dataset Information
Groups:
- train: 1328 Images
- val: 148 images

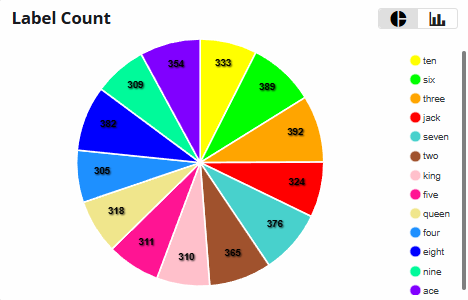

It contains 1,476 images in total and 13 classes.

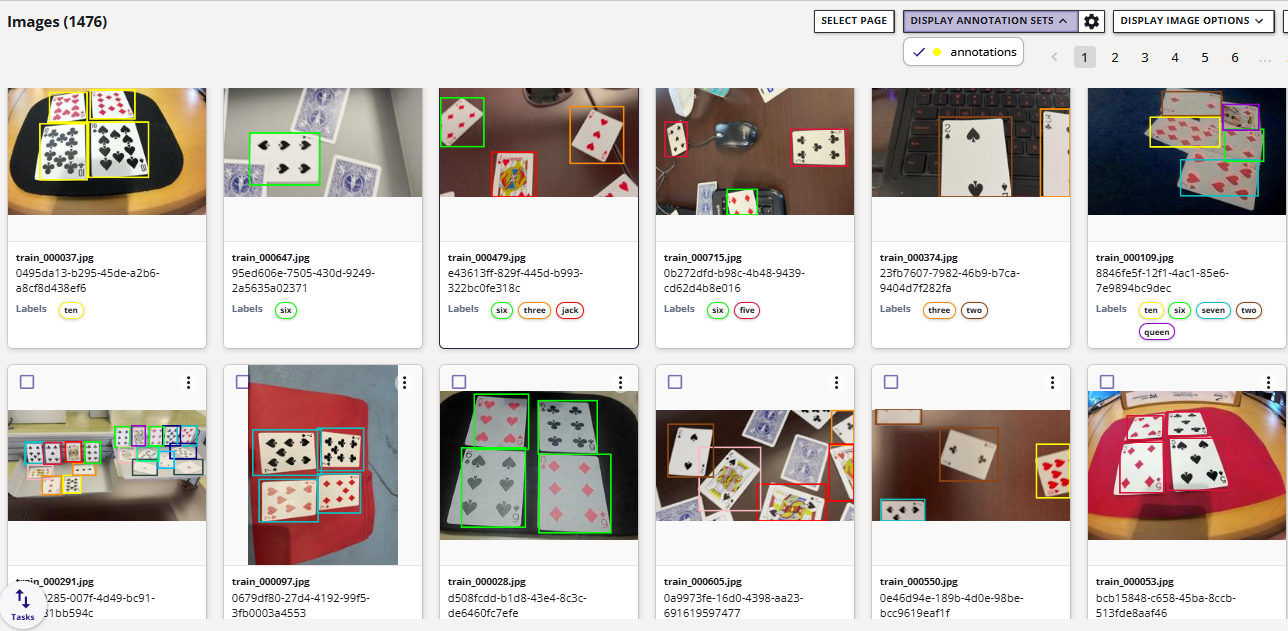

Image Gallery
License
This dataset is licenced by Au-Zone Technologies Inc. under the Creative Commons Attribution-NonCommericial-ShareAlike 4.0 license. You are welcome to use this dataset for non-commercial purposes as long as you also credit Au-Zone Technologies Inc. as the creator. If you adapt and share this dataset, you must also share it under the terms of this license. If you wish to license this dataset with different terms - such as commercially - please contact us.
