Model Schema Examples

These examples demonstrate how to connect to various model topics published on your EdgeFirst Platform and how to display the information through the command line.

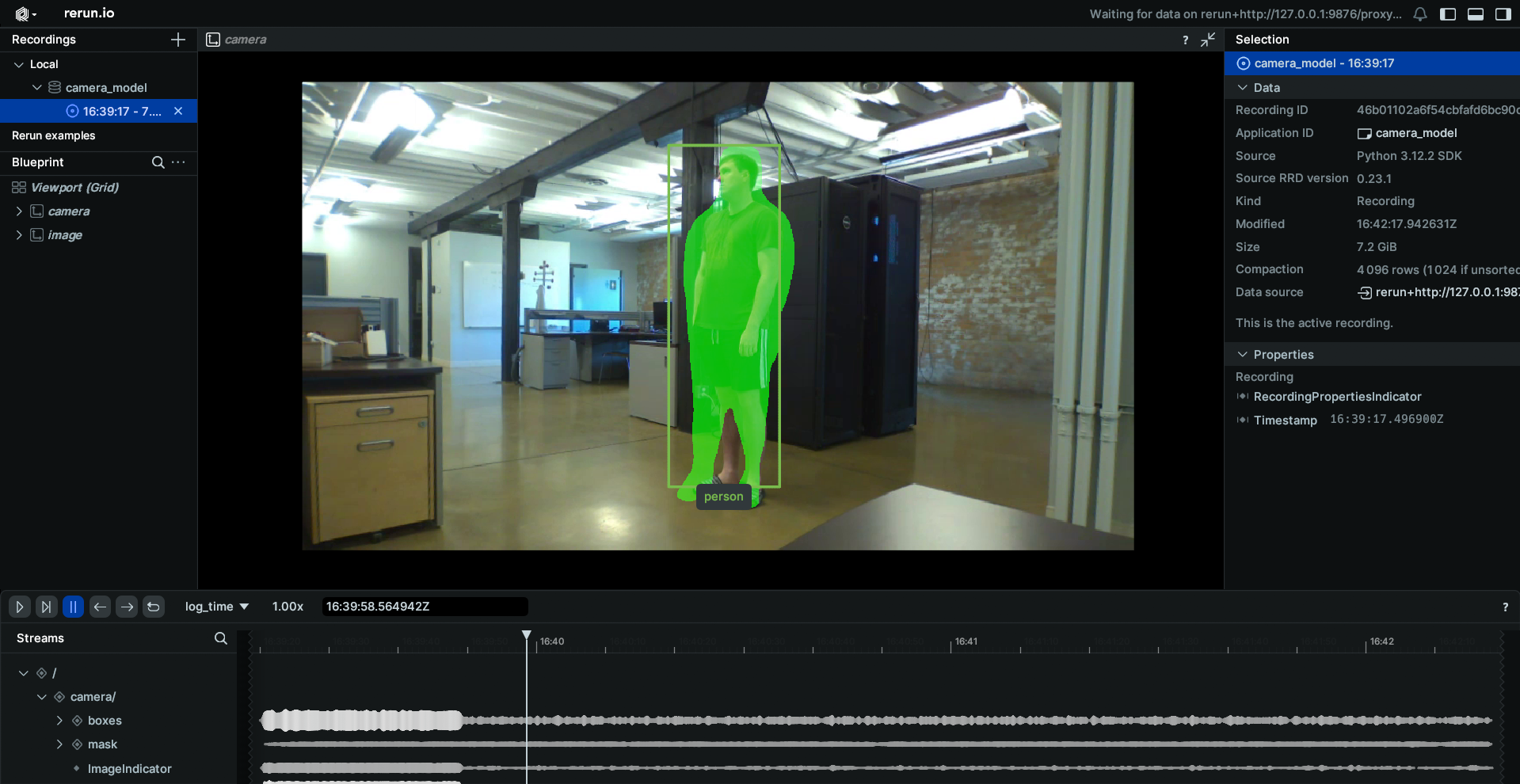

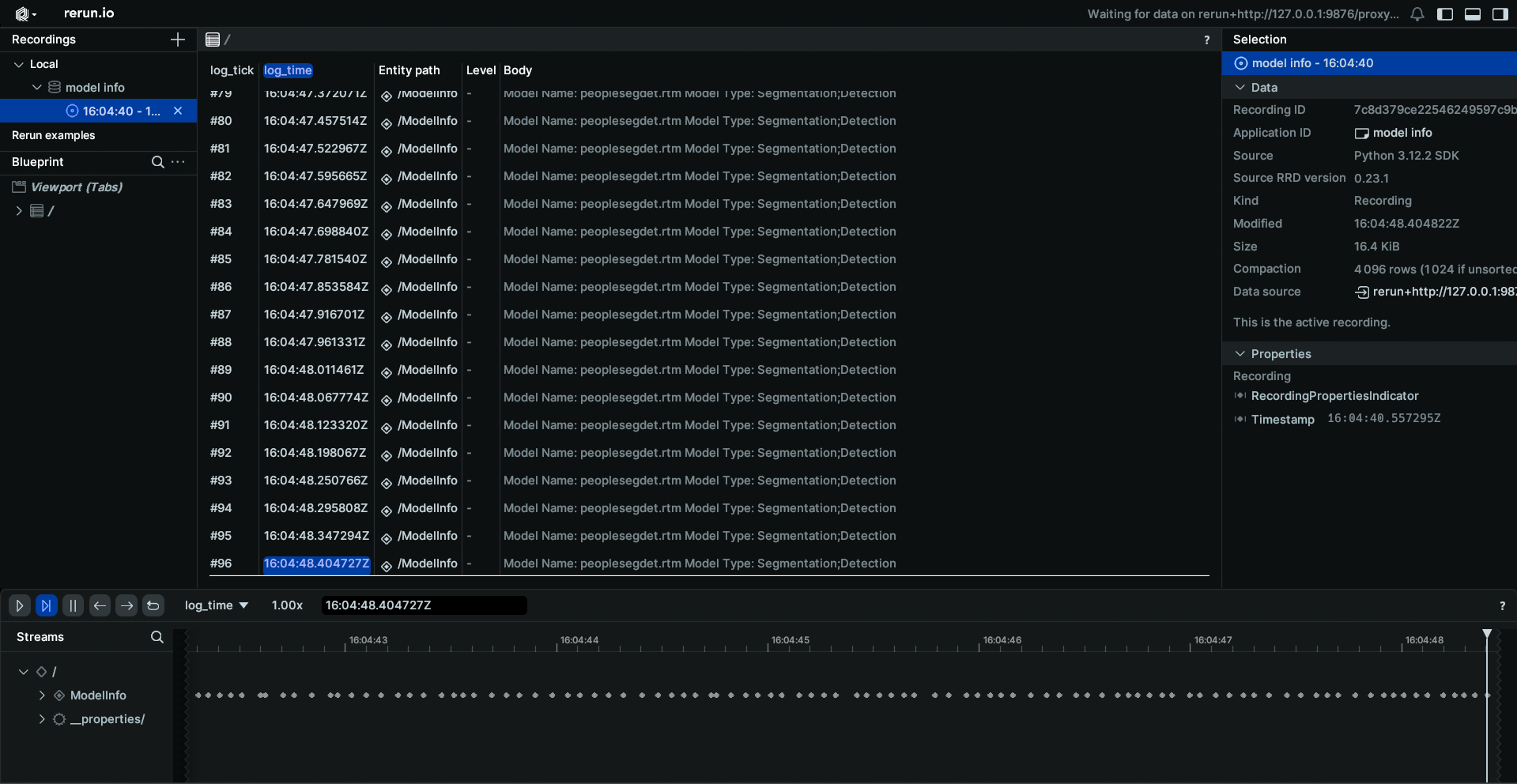

Model Info

Topic: /model/info
Message: ModelInfo

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the model/info topic

PythonRust

# Create a subscriber for "rt/model/info"
subscriber = session.declare_subscriber('rt/model/info')

// Create a subscriber for "rt/model/info"
let subscriber = session
    .declare_subscriber("rt/model/info")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import ModelInfo

# Receive a message
msg = subscriber.recv()
# deserialize message
info = ModelInfo.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::ModelInfo;

// Receive a message
let msg = subscriber.recv().unwrap();
let info: ModelInfo = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The ModelInfo message contains information about the model configuration. You can access various fields like:

PythonRust

# Access model parameters
m_type = info.model_type
m_name = info.model_name
rr.log("ModelInfo", rr.TextLog("Model Name: %s Model Type: %s" % (m_name, m_type)))

let m_type = info.model_type;
let m_name = info.model_name;
let text = "Model Name: ".to_owned() + &m_name + " Model Type: " + &m_type;
let _ = rr.log("ModelInfo", &rerun::TextLog::new(text));

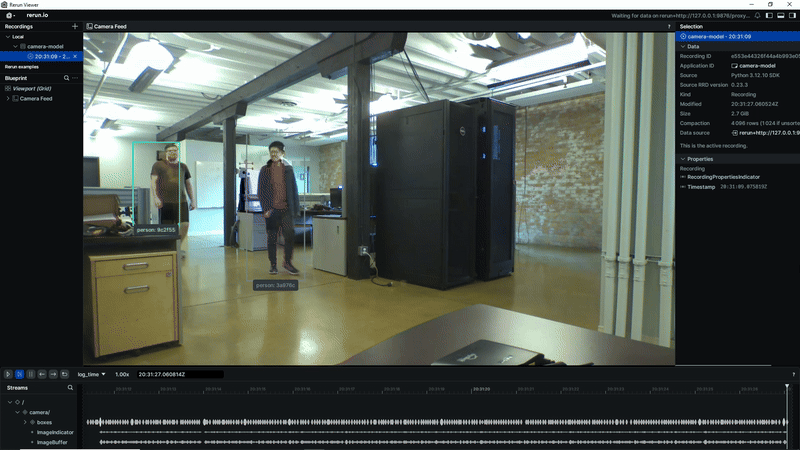

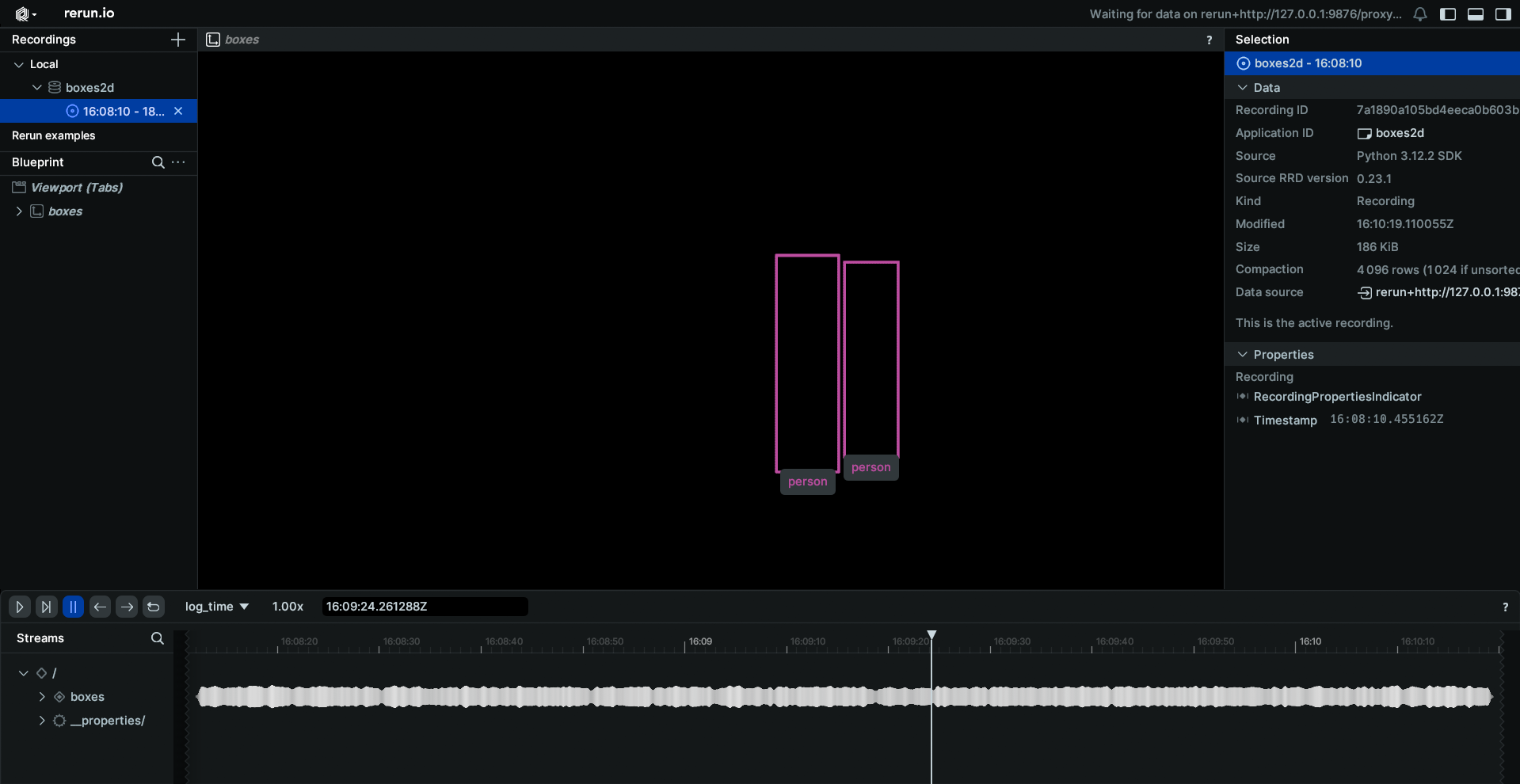

Boxes2D

Topic: /model/boxes2d
Message: ModelInfo

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the model/boxes2d topic

PythonRust

# Create a subscriber for "rt/model/boxes2d"
subscriber = session.declare_subscriber('rt/model/boxes2d')

// Create a subscriber for "rt/model/boxes2d"
let subscriber = session
    .declare_subscriber("rt/model/boxes2d")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import Detect

# Receive a message
msg = subscriber.recv()

# deserialize message
detection = Detect.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::Detect;

// Receive a message
let msg = subscriber.recv().unwrap();
let detection: Detect = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The Boxes2D message contains 2D bounding box detections. You can access various fields like:

PythonRust

centers = []
sizes = []
labels = []
for box in detection.boxes:
    centers.append((box.center_x, box.center_y))
    sizes.append((box.width, box.height))
    labels.append(box.label)
rr.log("boxes", rr.Boxes2D(centers=centers, sizes=sizes, labels=labels))

let mut centers = Vec::new();
let mut sizes = Vec::new();
let mut labels = Vec::new();

for b in detection.boxes {
    centers.push([b.center_x, b.center_y]);
    sizes.push([b.width, b.height]);
    labels.push(b.label);
}

let _ = rr.log("boxes", &rerun::Boxes2D::from_centers_and_sizes(centers, sizes).with_labels(labels))?;

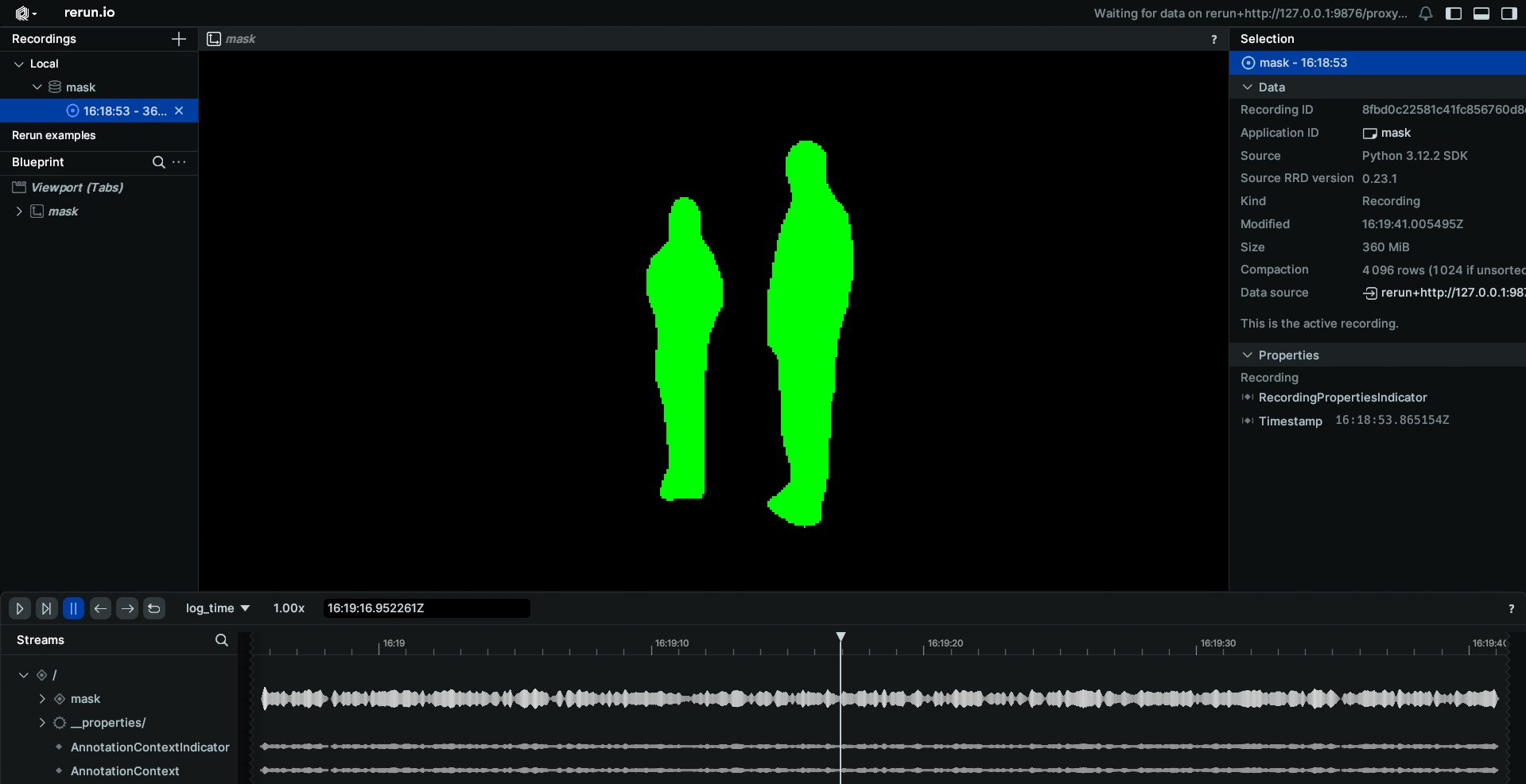

Model Mask

Topic: /model/mask
Message: Mask

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the model/mask topic

PythonRust

# Create a subscriber for "rt/model/mask"
subscriber = session.declare_subscriber('rt/model/mask')

// Create a subscriber for "rt/model/mask"
let subscriber = session
    .declare_subscriber("rt/model/mask")
    .await
    .unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import Mask

msg = subscriber.recv()
mask = Mask.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::Mask;

// Receive a message
let msg = subscriber.recv().unwrap();
let mask: Mask = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The Mask message contains segmentation mask data. You can access various fields like:

PythonRust

np_arr = np.asarray(mask.mask, dtype=np.uint8)
np_arr = np.reshape(np_arr, [mask.height, mask.width, -1])
np_arr = np.argmax(np_arr, axis=2)
rr.log("/", rr.AnnotationContext([(0, "background", (0,0,0)), (1, "person", (0,255,0))]))
rr.log("mask", rr.SegmentationImage(np_arr))

let h = mask.height as usize;
let w = mask.width as usize;
let total_len = mask.mask.len() as u32;
let c = (total_len / (h as u32 * w as u32)) as usize;

let arr3 = Array::from_shape_vec((h, w, c), mask.mask.clone())?;

// Compute argmax along the last axis (class channel)
let array2: Array2<u8> = arr3
    .map_axis(ndarray::Axis(2), |class_scores| {
        class_scores
            .iter()
            .enumerate()
            .max_by_key(|(_, val)| *val)
            .map(|(idx, _)| idx as u8)
            .unwrap_or(0)
    });

// Log annotation context
rr.log(
    "/",
    &AnnotationContext::new([
        (0, "background", rerun::Rgba32::from_rgb(0, 0, 0)),
        (1, "person", rerun::Rgba32::from_rgb(0, 255, 0))])
)?;

// Log segmentation mask
let _ = rr.log("mask", &SegmentationImage::try_from(array2)?)?;

Model Mask Compressed

Topic: /model/mask
Message: Mask

Setting up subscriber

After setting up the Zenoh session, we will create a subscriber to the model/compressed_mask topic

PythonRust

# Create a subscriber for "rt/model/mask_compressed"
subscriber = session.declare_subscriber('rt/model/mask_compressed')

// Create a subscriber for "rt/model/compressed_mask"
let subscriber = session.declare_subscriber("rt/model/mask_compressed")
.await
.unwrap();

Receive a message

We can now receive a message on the subscriber. After receiving the message, we will need to deserialize it.

PythonRust

from edgefirst.schemas.edgefirst_msgs import Mask

msg = subscriber.recv()
mask = Mask.deserialize(msg.payload.to_bytes())

use edgefirst_schemas::edgefirst_msgs::Mask;

// Receive a message
let msg = subscriber.recv().unwrap();
let mask: Mask = cdr::deserialize(&msg.payload().to_bytes())?;

Process the Data

The CompressedMask message contains compressed segmentation mask data. You can access various fields like:

PythonRust

decoded_array = zstd.decompress(bytes(mask.mask))
np_arr = np.frombuffer(decoded_array, np.uint8)
np_arr = np.reshape(np_arr, [mask.height, mask.width, -1])
np_arr = np.argmax(np_arr, axis=2)
rr.log("/", rr.AnnotationContext([(0, "background", (0,0,0)), (1, "person", (0,255,0))]))
rr.log("mask", rr.SegmentationImage(np_arr))

let decompressed_bytes = decode_all(Cursor::new(&mask.mask))?;

let h = mask.height as usize;
let w = mask.width as usize;
let total_len = mask.mask.len() as u32;
let c = (total_len / (h as u32 * w as u32)) as usize;

let arr3 = Array::from_shape_vec([h, w, c], decompressed_bytes.clone())?;

// Compute argmax along the last axis (class channel)
let array2: Array2<u8> = arr3
    .map_axis(ndarray::Axis(2), |class_scores| {
        class_scores
            .iter()
            .enumerate()
            .max_by_key(|(_, val)| *val)
            .map(|(idx, _)| idx as u8)
            .unwrap_or(0)
    });

// Log annotation context
rr.log(
    "/",
    &AnnotationContext::new([
        (0, "background", rerun::Rgba32::from_rgb(0, 0, 0)),
        (1, "person", rerun::Rgba32::from_rgb(0, 255, 0))])
)?;

// Log segmentation mask
let _ = rr.log("mask", &SegmentationImage::try_from(array2)?)?;
