Foxglove Studio

Foxglove Studio is an open source application developed by FoxGlove Technologies, Inc. It is part of the Robot Operating System (ROS) ecosystem and supports playback for MCAP recordings. You can download Foxglove Studio as well as our EdgeFirst plug-in for Foxglove and customized Raivin Foxglove layout

Getting Started

Let's discuss how to install our custom plug-ins once you've installed Foxglove Studios.

Installing EdgeFirst Plugin

Note

These guidelines describes installation of version 1.1.3 of the EdgeFirst plug-in for Foxglove, which is current as of time of writing.

1. Open Foxglove Studio

2. If necessary, uninstall any existing versions of the EdgeFirst plug-in

3. Click the User Settings button on the right side of the top menu bar.

4. Select the Extensions option in the pull-down menu.



   Foxglove Settings

5. Click the EdgeFirst Schemas plugin (or the older EdgeFirst Detect plugin)



   Foxglove Extension View

6. Click the "Uninstall" button.



   Foxglove Install Extension

7. Click the "Back to dashboard" button in the top-left corner of the application main window.

8. Install the current version of the EdgeFirst plug-in.

9. Click the User Settings button on the right side of the top menu bar.

10. Select the Extensions option in the pull-down menu.



    Foxglove Settings

11. Click the "Install local extension..." button.



    Foxglove Extension View

12. Select the edgefirst.edgefirst-schemas-1.1.3.foxe file or a later version from the downloads directory.

13. Confirm that the 1.1.3 version was installed or the latest version available.



    Foxglove Extension View with 1.1.3

14. Close Foxglove Studio and restart it.

Installing Foxglove Layout

We have included a Custom Raivin Layout for Foxglove Studio. Please download it and follow the instructions below.

1. Open Foxglove Studio.
2. Load an MCAP file downloaded from the Raivin.
3. Click the "Layout" buttom in the top taskbar.

4. Select the "Import from file..." option in the Layout menu.



   Foxglove Layout

5. Go to the download directory holding the JSON layout file and select the file.

6. Confirm the layout JSON file is loaded.

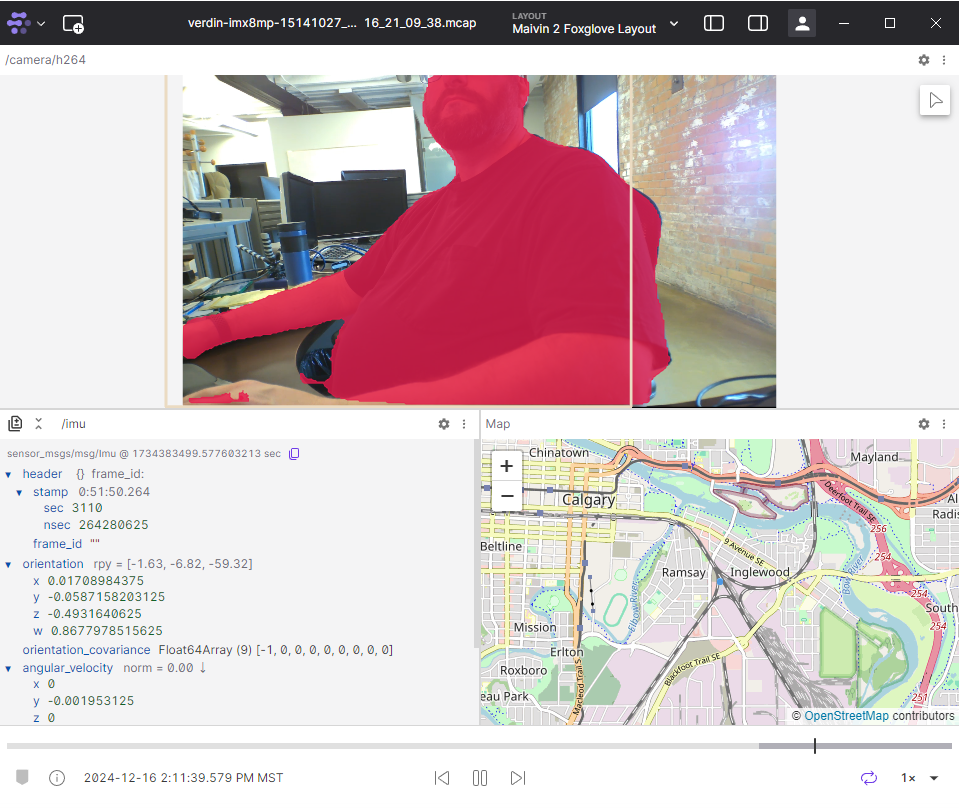

   Foxglove Scene

Layout Features

The default Raivin layout includes:

• Top panel: H.264 camera stream with bounding box overlays
  • Shows detection results (i.e. the coloured boxes around people when using a detection model)
  • Shows segementation masks (i.e. the coloured blobs covering detected objects when using a segmentation model)
• Bottom right panel: GPS coordinates map view
  • Interactive map with zoomable blue target showing camera position
• Bottom left panel: IMU sensor readings
  • Can be configured to show real-time plots
• Bottom timeline: Playback controls for navigation

Visualization Features

In the example above, we see both detection boxes and segmentation masks in the H.264 Camera topic.

Viewing Detection Messages

The detection boxes are contained in the /model/boxes2d topic. By default, this topic is not enabled. See the Maivin Dataset Recording section for details on how to enable this topic and record an MCAP with the Raivin.

Note

Not all vision models are able produce detection results. The default model on the Raivin can produce both detection and segmentation results.

1. Record a MCAP file that captures the /model/boxes2d topic.

2. Confirm with the "Details" button that the newly recorded MCAP has a /model/boxes2d topic.



   MCAP Details

3. Download the file from the Raivin and load it in Foxglove Studio.

4. Click the "Settings" gear icon on the right side of the /camera/h264/ panel task bar.

5. The /model/boxes2d option should appear in the "Image annotations" dropdown menu in the "Image Panel" settings sidebar (bottom left of image below).



   Foxglove Detect Plugin View

6. Enable the /model/boxes2d image annotations by clicking the closed eye icon. This will draw boxes around the detected objects.



   Foxglove Detect Boxes Enabled

Viewing Segmentation Messages

Segmentation masks are contained in the /model/mask_compressed topic which is enabled on the Raivin by default. Because of the amount of data included within this stream, it is not compatible with the default Image drawing API in Foxglove Studio. To visualize the Segmentation Mask, the EdgeFirst Foxglove plug-in must be installed to view segmentation masks in Foxglove.

The instructions to view these masks are the same as above but using the /model/mask_compressed topic instead of the /model/boxes2d topic.

Foxglove Detect Boxes Enabled

Viewing /radar/cube Messages

By default, none of the radar topics are recorded as part of an MCAP file. The Image panel in Foxglove can viewer can:

1. Record a MCAP file that has the /radar/cube message in it. See Maivin Dataset Recording for details.
2. Play the MCAP file in Foxglove Studio. See Playback MCAP with Foxglove Studio for details.

3. In the image panel, the /radar/cube topic should appear under the list of valid image topics.

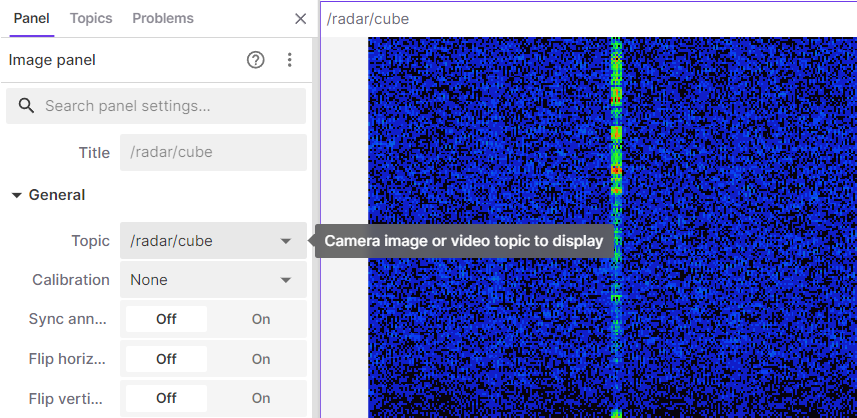

   Foxglove Radar Mask

4. Select the /radar/cube topic.

5. Change the color mode to Color Map, and select Turbo for the color map.



   Foxglove Radar Message

6. Leave the value min and value max on auto.

7. You can now see the /radar/cube message.

Foxglove Final Radar View

IMU Data Plotting

To create IMU sensor plots:

1. Convert bottom left panel to Plot view
2. Click "Add a Series"
3. Select /imu as the topic
4. Choose desired parameters (e.g, angular_velocity, x, y, z)

5. Repeat to add additional plot series as needed.



   IMU



   IMU to Plot



   Plot



   IMU Message



   IMU Velocity



   IMU Final View

Additional Resources

For more detailed information about Foxglove Studio features, visit the Foxglove Documentation website.
