Middleware Overview

The EdgeFirst Perception Middleware provides a modular software stack built on Zenoh, a ROS2-like communication middleware.

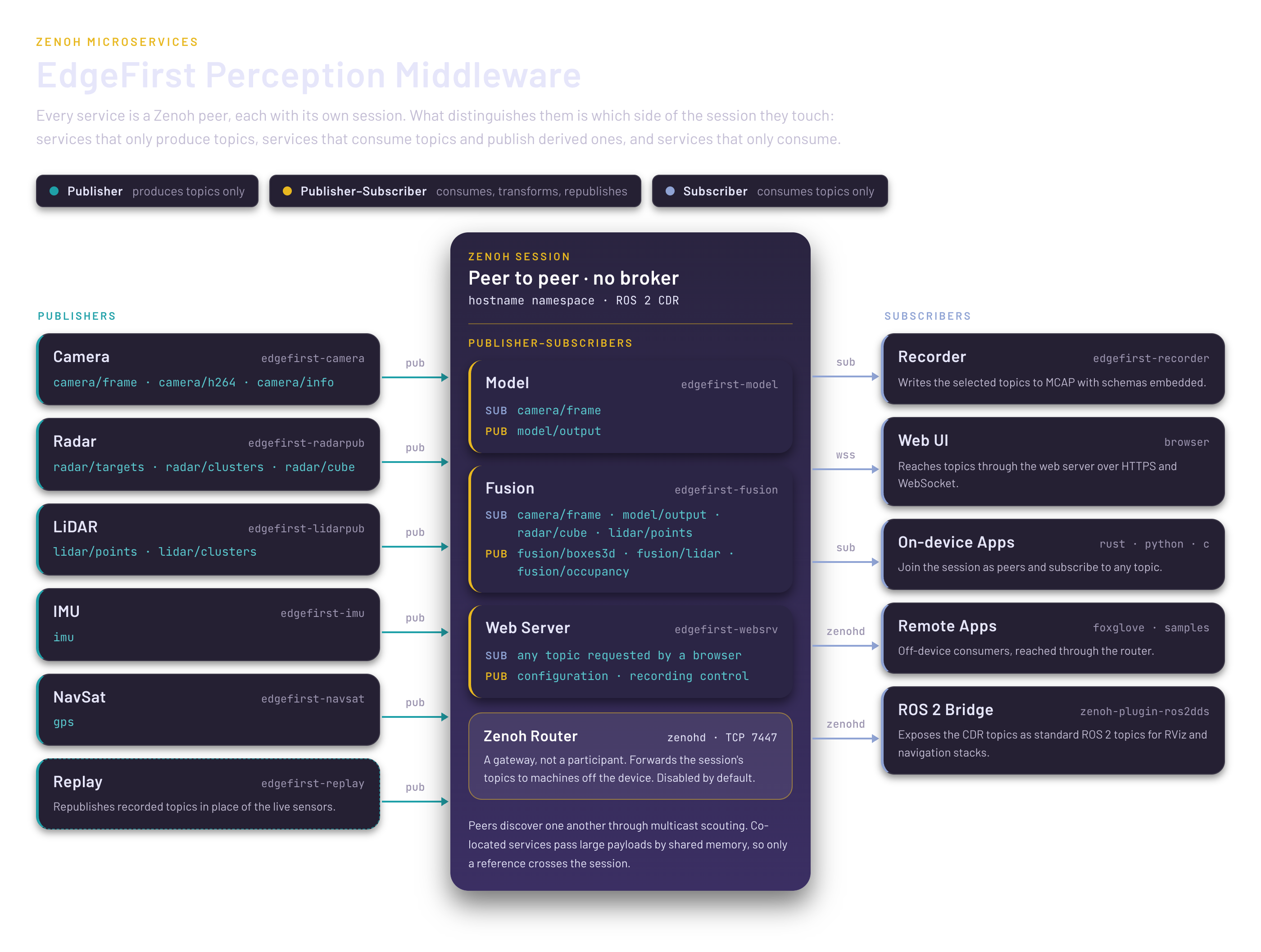

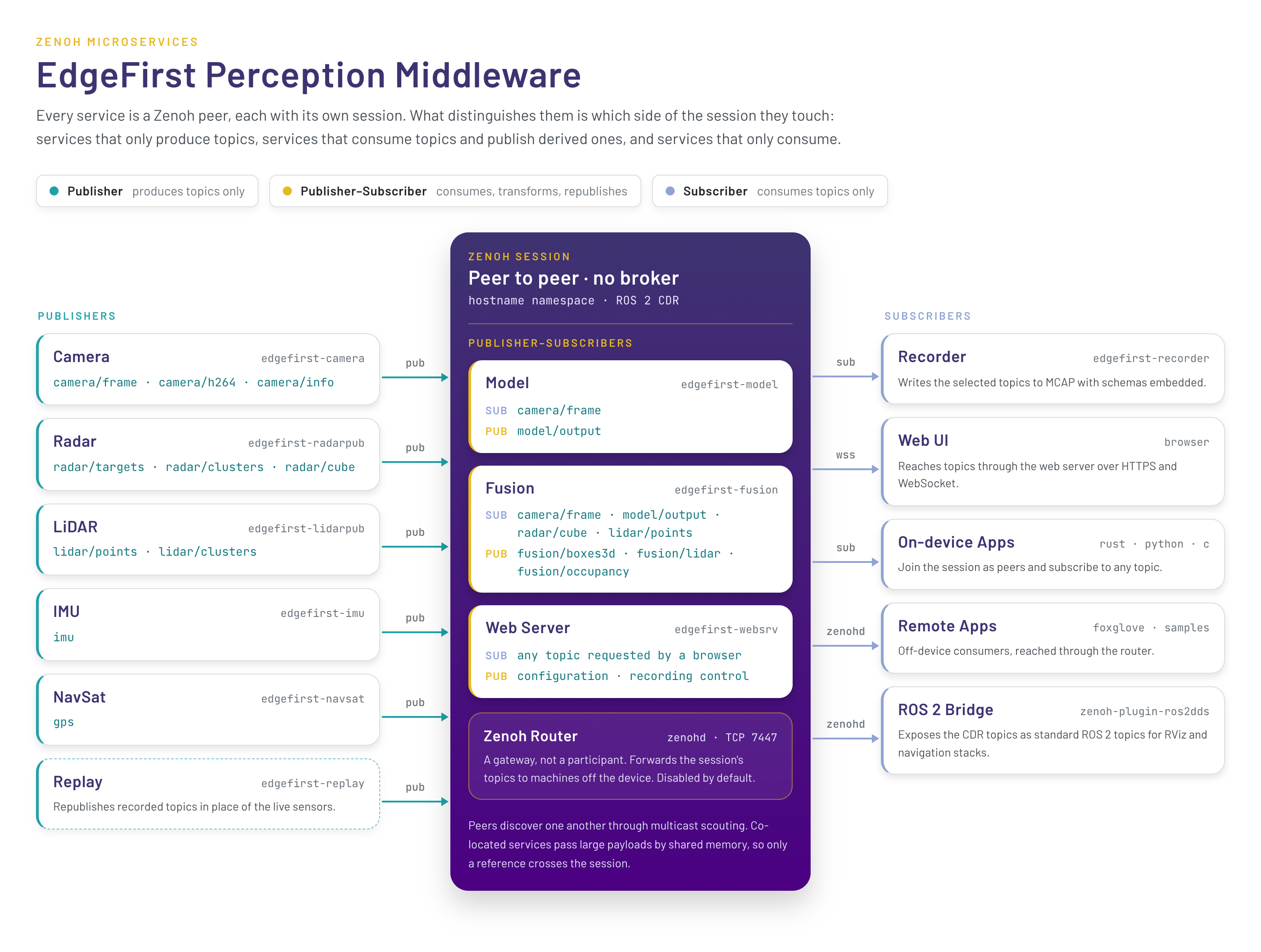

Architecture

Each service handles a specific task:

  • Camera Service: Interfaces with the camera and ISP (Image Signal Processor) to deliver frames to other services. It also encodes frames to H.265 video for recording or streaming. You can configure or disable encoding if not needed.

Communication

Services communicate through Zenoh, a high-performance publisher/subscriber stack. While EdgeFirst doesn't depend on ROS2, services encode messages using ROS2 CDR (Common Data Representation). The middleware uses ROS2 standard schemas where applicable and custom schemas where needed.

See the Recording and Foxglove sections for details on streaming, recording, and tool interoperability.

graph LR
    camera --> model["vision model"] --> zenoh
    radarpub --> fusion["fusion model"] --> zenoh
    lidarpub --> zenoh
    camera --> fusion
    radarpub --> zenoh
    camera --> zenoh
    model --> fusion
    navsat --> zenoh
    imu --> zenoh
    zenoh --> recorder --> mcap
    zenoh --> webui --> https
    zenoh --> user["user apps"]
    https --> user
